  2. PE4239 SPDT RF Switch
SGD Pricelist
Manufacturing Company :

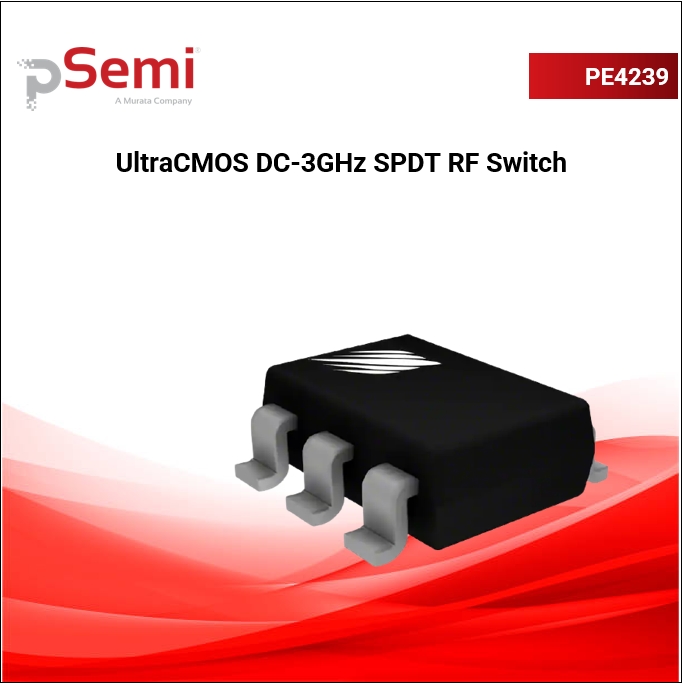

PE4239 SPDT RF Switch

SPDT, Low IL, Reflective, 50Ω RF Switch

  • Frequency
  • RF Switch
  • Package

SG$ 1.39

This combination does not exist.

Lead Time : 22.0 weeks

Add to Cart Get Best Price

SPDT, Low IL, Reflective, 50Ω RF Switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

pSemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare. From headquarters in San Diego and offices around the world, pSemi’s team explores new ways to make electronics for the connected world smaller, thinner, faster and better.


FIND OUT MORE

Overview

The PE4239 UltraCMOS® RF Switch is designed to cover a broad range of applications. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and can be controlled using either single-pin or complementary control inputs. Using a nominal 3V power supply, a typical input 1 dB compression point of +27 dBm can be achieved.

Features

      Single 3.0 V Power Supply
      Low insertion loss
      Typical 1 dB compression of +27 dBm
      Single-pin CMOS logic control
      Ultra-small 6-lead SC-70 package

Specifications for PE4239 SPDT RF Switch

Antenna
Frequency DC-3000MHz
RF Radio
RF Switch SPDT
Uncategorized
Package 6L SC-70
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


The PE4239 UltraCMOS® RF Switch is designed to cover a broad range of applications. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and can be controlled using either single-pin or complementary control inputs. Using a nominal 3V power supply, a typical input 1 dB compression point of +27 dBm can be achieved.

Key Features

      Single 3.0 V Power Supply
      Low insertion loss
      Typical 1 dB compression of +27 dBm
      Single-pin CMOS logic control
      Ultra-small 6-lead SC-70 package


Specifications

DescriptionSPDT (R)
Min Freq.DC
Max Freq.3000 MHz
Max Typ. IL (dB)0.90
Min Typ. IL (dB)0.70
Max Typ. Iso (dB)32
Min Typ. Iso (dB)23
P1/0.1dB (dBm)27.0/-
IIP3 (dBm)45
Package6L SC-70
Package (mm)1×2
