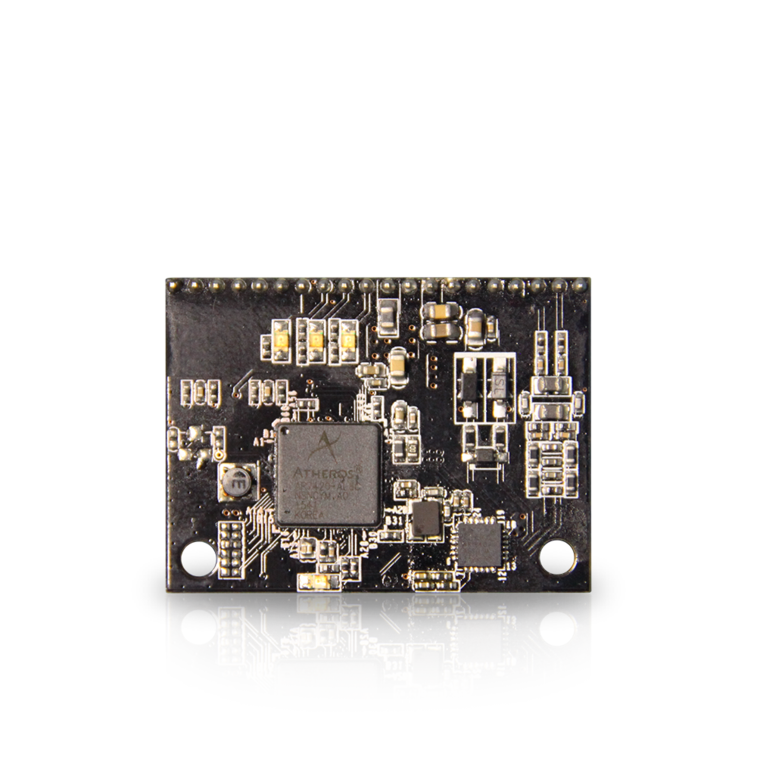

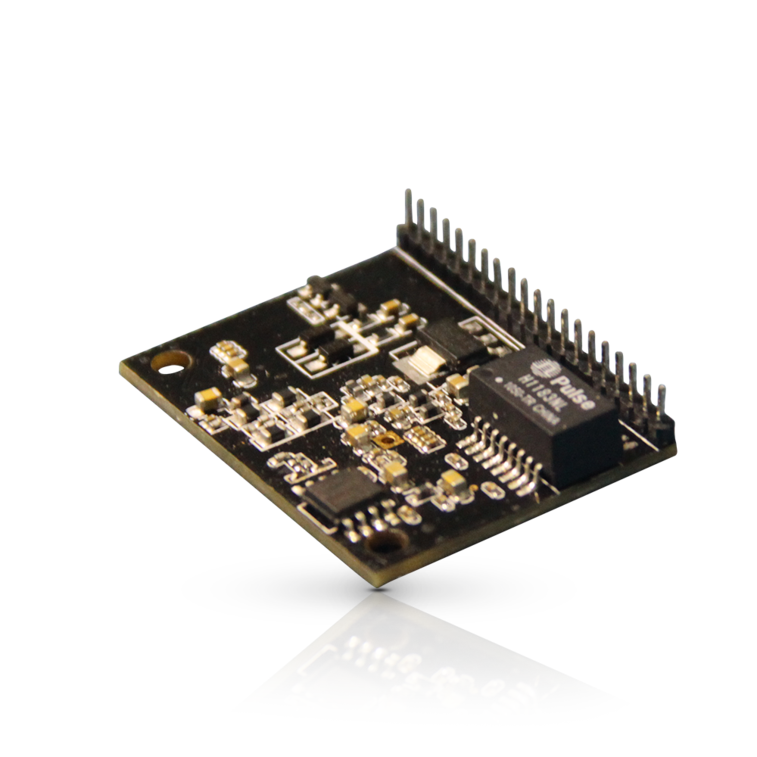

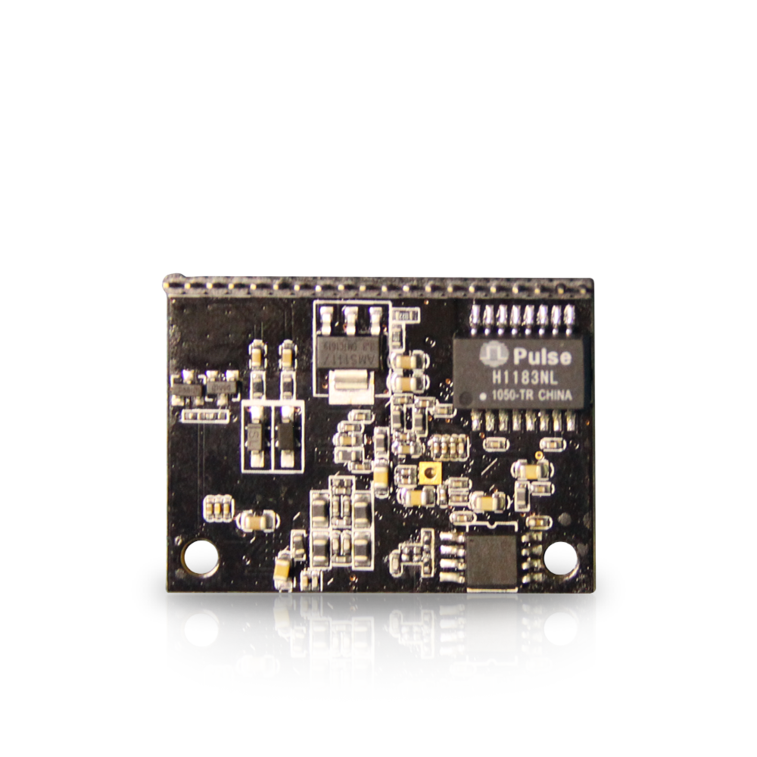

WisLink LX200V30 500Mbps Power Line communication Module
LX200V30 HomePlug AV Standards 500Mbps Broadband Power line Module, QCA7420 Chips,Network Adapter,Twisted pair/Ethernet,CE/FCC
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Product Description
WisLink LX200V30 is a new type of data transmission product based on OFDM (Orthogonal Frequency Division Multiplexing). The maximum transmission rate of power lines can reach 500Mbps. Standard ethernet ports, as well as the two interfaces of twisted pair and coaxial cable, are provided.
WisLink LX200V30 supports 128-bit AES encryption. It communicates via frequency band of 2~30MHz, so the existing CATV signal or wired broadcasting is not affected. It can be put into work after the wiring is completed without any user configuration. This will advance the product's time-to-market and increase the flexibility of product functionality.
Complete documentation of this product can be found on our website documentation page.
Key Features
- Max Data Rate: 500Mbps
- Max Range:
- 300m Power Lines
- 600m Telephone Lines
- 2000m Cable Lines
- IEEE1901 and Homeplug AV Support
- MII Standard Interface
- 128-bit AES Encryption of Data
- A maximum of 8 modules can interface with each other
- Works below CATV signal interference range
Packaging
- Product Dimensions:40mm x 30mm
- Product Weight:1kg
- Inclusions:
- 1pc The LX200V30 Board
