Product Description

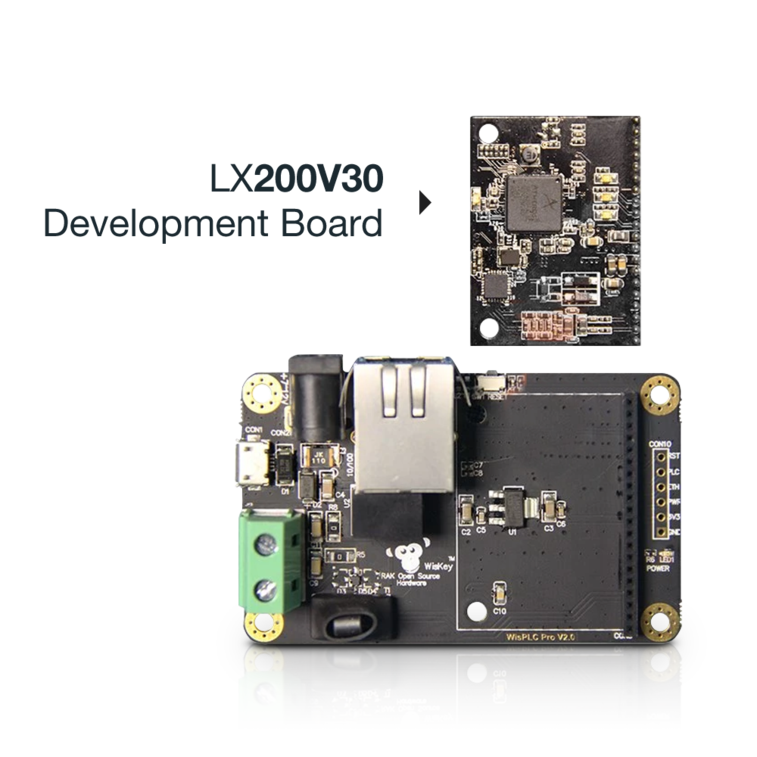

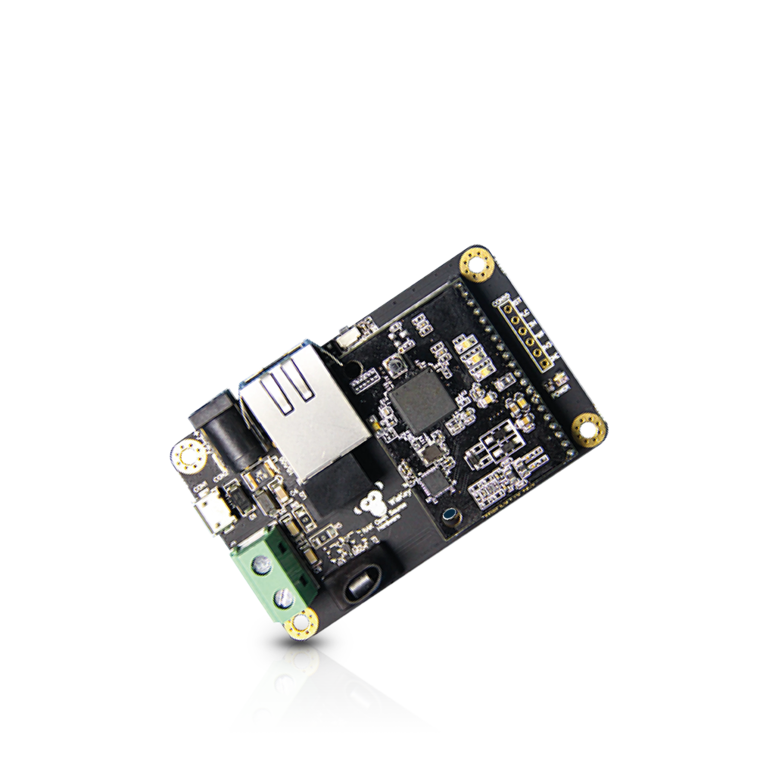

WisLink LX200V30 EVB is a new type of based on OFDM (Orthogonal Frequency Division Multiplexing) modulation technology of data transmission products.

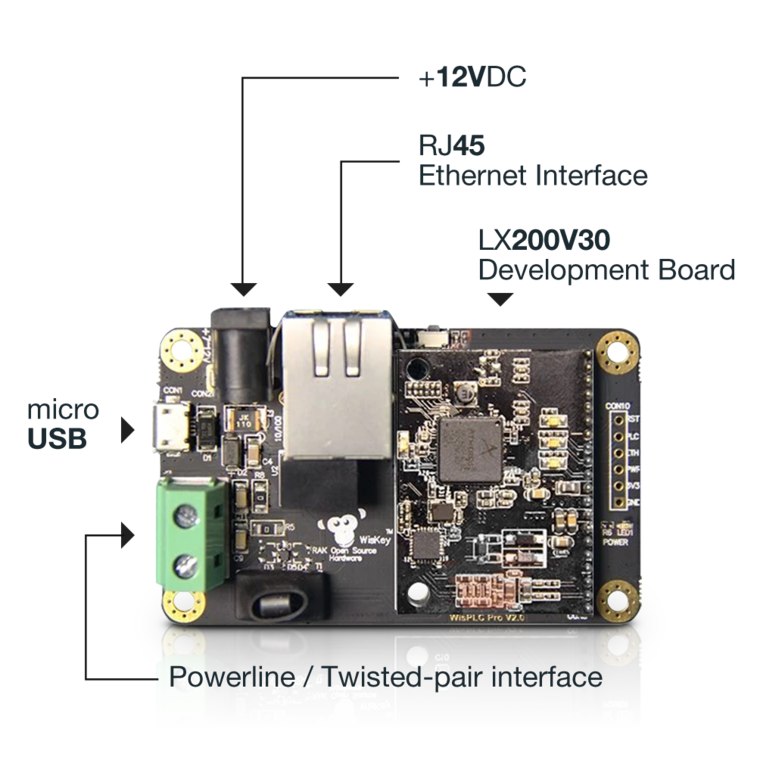

Power line maximum transmission rate can reach 500 Mbps, provide standard Ethernet front-end ports, also support the twisted pair interface.
Support 128-bit AES encryption, takes up 2-30MHZ band communication, the existing CATV cable radio signal or no effect, without user configuration, wiring after the completion of the work.
Faster time-to-market and the flexibility of product function.
Complete documentation of this product can be found on our website documentation page.
Key Features

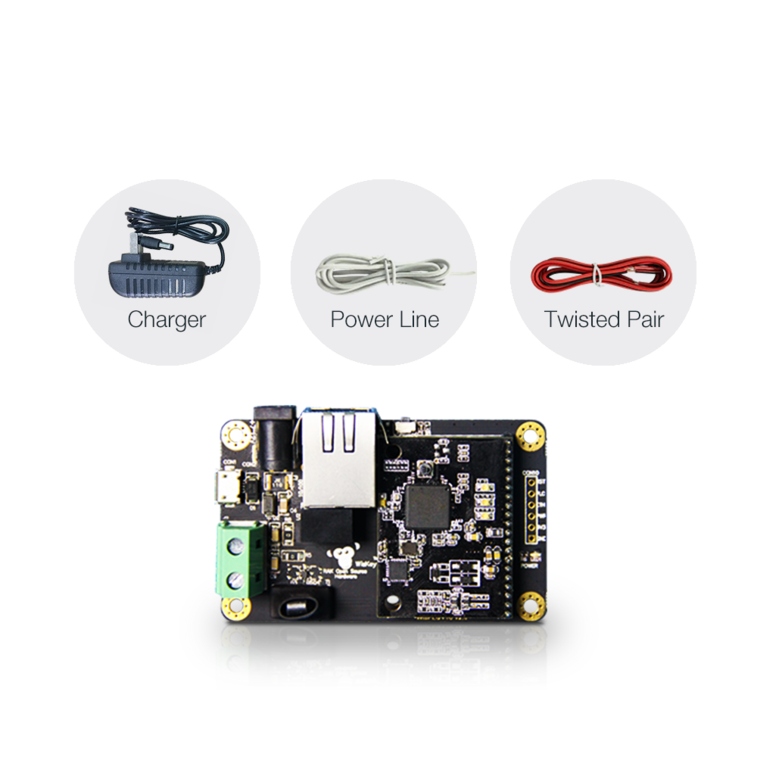

- Medium (Supports multiple transmission medium)
- Power Line: Range up to 300 meters for IP access
- Twisted Pair: Range up to 600 meters for IP access
- Speed: maximum physical layer data rate is 200Mbps
- 128bit AES encryption
- IEEE 1901 and HomePlug AV standards compliance
- A maximum of 8 modules can interface with each other
- Modular design, easy to embedded and implement to any existing devices
Packaging
Board Dimension: 40mm x 30mm (76mm x 46mm for the Base Board)
Package Weight: 0.2kg
Package Size: 15cm x 9cm x 9cm
