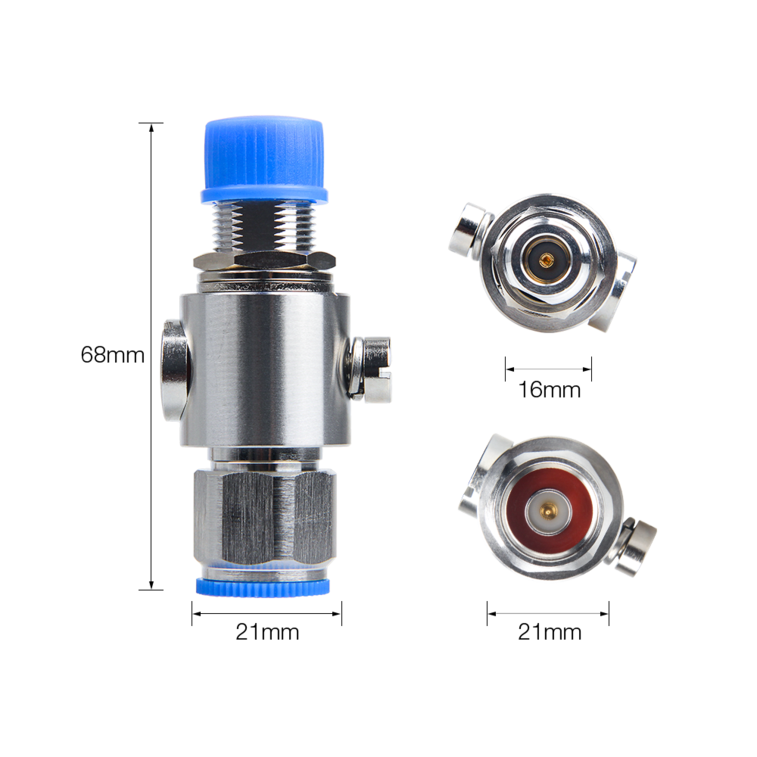

Lightning Arrestor for Wi-Fi, LoRa, LTE Antenna
Lightning Arrestor for LoRaWAN Gateway LoRa/LTE/WIFI Antenna
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Documentation
Product Description
This is a surge protective device for securing transceivers against over-voltage and surge current induced by bolts of lightning.
For the purpose of protecting the indoor equipment and circuitry connected to the LoRa gateway, you need to install an Ethernet Port Surge Protection Device (SPD).

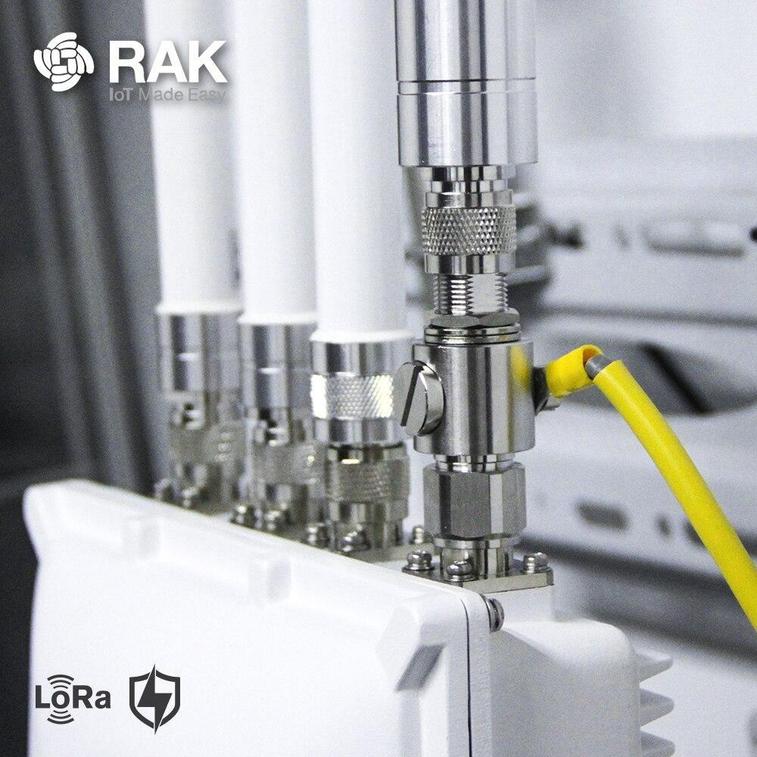

RAKwireless recommends installing a lightning arrestor on all N-type antenna terminals including LoRa, LTE, and 2.4G Wi-Fi antennas. Please refer to the technical manual for wire type and gauge recommendations.
Key Features
Connector Type: N-type male to N-type female
Impedance: 50 Ω
Frequency range: 0-2700 MHz
Power loss 0-2000 MHz: ≤ 0.2 dB
Ingress protection: IP67
Nominal discharge current In: 10 kA
Maximum discharge current Imax: 20 kA
Voltage protection Level Up: ≤ 1200 V
Packaging
Product Weight: Approximately 180g
Product Dimension: 68mm x 21mm
