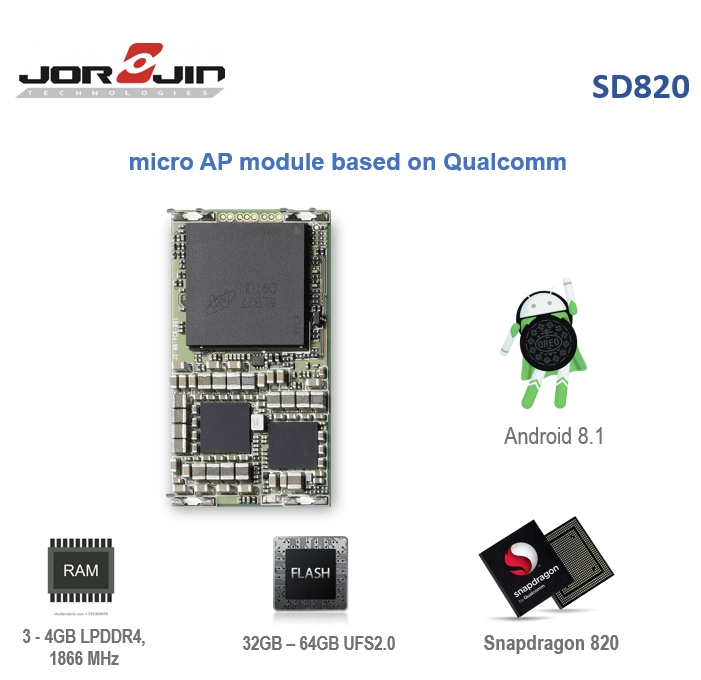

SD820 SOM is a micro AP module based on Qualcomm’s® cutting edge Snapdragon™ 820 processor. And use the POP LPDDR4 to reduce the PCB area. The cost and time-to-market advantage of SoM will help in Smart Media Devices used Wifi/Bluetooth/GPS wireless connectivity adoption in the world IOT market.

    SG$ 19.48 SG$ 19.48 19.4813 SGD

    US$ 15.00

    This combination does not exist.

    Add to Cart Get Best Price

    SD820 SOM is a micro AP module based on Qualcomm’s® cutting edge Snapdragon™ 820 processor. And use the POP LPDDR4 to reduce the PCB area. The cost and time-to-market advantage of SoM will help in Smart Media Devices used Wifi/Bluetooth/GPS wireless connectivity adoption in the world IOT market.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    General escription

    The ASR6502 is a general LoRa Wireless Communication Chipset, with integrated LoRa Radio Transceiver, LoRa Modem and a 32-Bit RISC MCU. The MCU uses ARM Cortex M0+, with 48MHz operation frequency. The LoRa Radio Transceiver has continuous frequency coverage from 150MHz to 960MHz. The LoRa Modem supports LoRa modulation for LPWAN use cases and (G)FSK modulation for legacy use cases. The LoRa Wireless Communication module designed by ASR6502 provides ultra long range, ultra low power communication for LPWAN application.
    The ASR6502 can achieve a high sensitivity of over -140dBm and the maximum transmit power is higher than +21dBm. This makes it suitable to be used in long range LPWAN and have high efficiency. The total chip package is of very small size, 7mm x 7mm.

    Key Feature

    • Small footprint: 7mm x 7mm x 0.9mm.
    • LoRa Radio and LoRa Modem.
    • Frequency Range: 150MHz ~ 960MHz.
    • Maximum Power +21dBm constant RF output.
    • High sensitivity: down to -140dBm.
    • Programmable bit rate up to 62.5kbps in LoRa modulation mode.
    • Programmable bit rate up to 300kbps in (G)FSK modulation mode.
    • Preamble detection.
    • Embedded memories (up to 128kbytes of Flash memory and 16Kbytes of SRAM).
    • 9x~15x configurable GPIOs, 1xI2C, 1xUART, 1xSWD.
    • 48-MHz ARM Cortex-M0+ CPU.
    • 8-Channel DMA engine.
    • Embedded 12-bit 1Msps SAR ADC.
    • 32.768kHz External Watch Crystal Oscillator.
    • 4-33MHz External Crystal Oscillator for MCU (Optional).
    • 32MHz External Crystal Oscillator for LoRa Radio.
    • Embedded internal High frequency (48MHz) RC oscillator.
    • Embedded internal Low frequency (40kHz) RC oscillator.
    • Embedded internal PLL to generate 48MHz clock.









    5dBi 860-960MHz SlimLineOmnidirectional -- (N Fem Integrated Connector)

    The NLOS series omnidirectional antenna system offered by Laird Technologies are constructed of UV stabilized fiberglass and stainless steel. for long service life. Mounting is easy with a dual u-bolt mounting system. The antennas are vertically polarized. The 6dBi and 8dBi come standard with 18” pigtails terminated in an N female connector. The 5dBi and 11dBi comes standard with an integrated N Female connector.  The omni’s are DC grounded for lightning protection. The 11dBi omni is available with 1 deg electrical downtilt which provides null fill and improved close-in coverage.


    Lorem Ipsum
    Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat. Ut wisi enim ad minim veniam, quis nostrud exerci tation.

    Documents

    lora_asr6502_v20c1_190218.pdf

    ora_asr6502_v20c1_190219.pdf

    lor_asr6502_v20c1_190211.pdf


    Reference number : 738027097
    Sku: 201807173714
