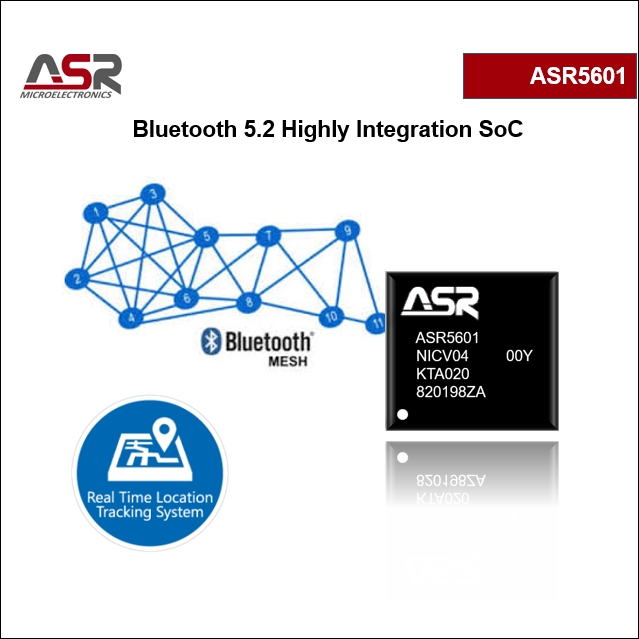

ASR5601 Bluetooth 5.2 SoC

The ARM® Cortex™ M0+ MCU processes BLE software stacks and user’s application software The Cortex™-M0+ core ensures high efficiency and low power. With RF and modem, this SoC supports BLE 125K/500K/1M/2M bps data rates. ASR5601N-ML is designed to meet various kinds of IoT applications such as the data transmission, the remote controller and the speech recognition. OTP is integrated in order to enhance the system's security

    SG$ 1.61

    This combination does not exist.

    Lead Time : 21.0 weeks

    Add to Cart Get Best Price

    The ARM® Cortex™ M0+ MCU processes BLE software stacks and user’s application software The Cortex™-M0+ core ensures high efficiency and low power. With RF and modem, this SoC supports BLE 125K/500K/1M/2M bps data rates. ASR5601N-ML is designed to meet various kinds of IoT applications such as the data transmission, the remote controller and the speech recognition. OTP is integrated in order to enhance the system's security

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    ASR Micro

    ASR is a platform company specialized in the mobile intelligent communication terminal SoC, Internet of Thinghs, artificial intelligence, satellite navigation and other consumer electronics chips. The product line covers multi-standard communication standards of 2G, 3G, 4G, 5G and IoT. ASR is committed to offering complete SoC solutions for customers.


    FIND OUT MORE

    RF Transceiver and Modem

    • Integrated PA and TRSW, single-ended RF Pin, simple interface to antenna

    • Two-point modulation transmitter with robust calibration algorithm

    • Low power receiver with configurable analog BB for 1 MHz and 2 MHz bandwidth

    • RF transceiver and modem supporting BLE 5.2

    • -95 dBm sensitivity at BLE 2 Mbps GFSK

    • -98 dBm sensitivity at BLE 1 Mbps GFSK

    • -104 dBm sensitivity at BLE 500 Kbps GFSK

    • -106 dBm sensitivity at BLE 125 Kbps GFSK

    • -30 dBm to +10 dBm output RF power with low harmonic emissions

    Bluetooth Low Energy 5.2

    • Bluetooth version 5.2 specifications compliant, targeting BLE features only

    • Supporting BLE Mesh Network (SIG MESH V1.x)

    • Support all packets types

    • Support WLAN coexistence mechanism (PTA)

    • Support all device roles (broadcaster, central, observer, peripheral)

    • Support encryption/decryption (AES-CCM) and bit stream processing (CRC, whitening)

    • Support frequency hopping calculation (scheme #1 and scheme #2)

    • Support FDMA/TDMA/events formatting and synchronization

    • Support AHB slave interface for registers access and exchange memory of the CPU access via BLE core

    • Support 16 MHz and 8 MHz operating clock

    • Support power down BLE core during protocol’s idle periods and runs at either 32.0 KHz or 32.768 KHz clock

    Applications

    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    ASR5601N-ML has an RF transceiver and modem featuring high performance and low power consumption. It delivers a maximum of +10 dBm output RF power and achieves -98 dBm sensitivity at BLE 1 Mbps mode without off-chip power amplifier (PA) and TX/RX switch (TRSW). Moreover, an AUDIO-IN path supports both audio-in signals from analog and digital microphones (AMIC/DMIC). The analog audio-in path includes audio PGA, sigma-delta ADC (SD-ADC) as well as MIC bias voltage generation circuits (MICVB). This audio-in path enables flexible configuration to acquire audio signals for speech recognition in voice controlling application. The battery voltage range is extended from 1.7 V to 3.6 V with a flexible power management unit (PMU). The DCDC in PMU boosts the power efficiency of the entire chip. The ARM® Cortex™ M0+ MCU processes BLE software stacks and user’s application software The Cortex™-M0+ core ensures high efficiency and low power. With RF and modem, this SoC supports BLE 125K/500K/1M/2M bps data rates.
    ASR5601N-ML is designed to meet various kinds of IoT applications such as the data transmission, the remote controller and the speech recognition. OTP is integrated in order to enhance the system's security. A true random number generator (TRNG) is also integrated. Encryption of flash image file with key generated by TRNG protects user's software from illegal copying and ensures the safety of this SoC for IoT applications.

    Key Features and Performance


     RF Transceiver and Modem
     Integrated PA and TRSW, single-ended RF Pin, simple interface to antenna
     Two-point modulation transmitter with robust calibration algorithm
     Low power receiver with configurable analog BB for 1 MHz and 2 MHz bandwidth
     RF transceiver and modem supporting BLE 5.2
     -95 dBm sensitivity at BLE 2 Mbps GFSK
     -98 dBm sensitivity at BLE 1 Mbps GFSK
     -104 dBm sensitivity at BLE 500 Kbps GFSK
     -106 dBm sensitivity at BLE 125 Kbps GFSK
     -30 dBm to +10 dBm output RF power with low harmonic emissions

    Bluetooth Low Energy 5.2
     Bluetooth version 5.2 specifications compliant, targeting BLE features only
     Supporting BLE Mesh Network (SIG MESH V1.x)
     Support all packets types
     Support WLAN coexistence mechanism (PTA)
     Support all device roles (broadcaster, central, observer, peripheral)
     Support encryption/decryption (AES-CCM) and bit stream processing (CRC, whitening)
     Support frequency hopping calculation (scheme #1 and scheme #2)
     Support FDMA/TDMA/events formatting and synchronization
     Support AHB slave interface for registers access and exchange memory of the CPU access via BLE core
     Support 16 MHz and 8 MHz operating clock
     Support power down BLE core during protocol’s idle periods and runs at either 32.0 KHz or 32.768 KHz clock

    Power Management Unit (PMU)

     Support single supply input pin, range from 1.7 V to 3.6 V
     Integrated DCDC (BUCK) and LDOs, no need for off-chip PMU
     Integrated single-pin ultra-low power (ULP) 32.768 KHz XTAL circuit (XO32K)
     ULP 32 KHz RC-Oscillator (RCO32K) with high accuracy and stability with auto-calibration
     Finite status machine (FSM) under always-on power domain controls chip power status

    MCU System

     ARM Cortex™-M0+ MCU featuring low power and high efficiency
     ARM Cortex™-M0+ with hardware multiplier
     MCU can run at 16/64 MHz clock frequency configured by software
     Boot ROM and 1K-bit OTP is integrated
     2x2K-Byte dedicated retention RAM in always-on domain
     96 KB system RAM configurable for Instruction or data
     System RAM can be partially configured to retention/shut-down/sleep at low power mode
     512 KB on-system flash
     Support execute-in-place (XiP) mode with on-system flash
     Support external SPI NOR Flash
     Support OTA (conditional)

    Peripherals

     Integrate PWM/TIMER/WATCHDOG/RTC
     Integrate UART/SPI/I2C/DMA
     Integrate GPIOs/KEYPAD
     Integrate USB 2.0 full speed device
     Integrate THREE-AXIS decoder
     Integrate IR transceivers (IR0/IR1)
     Integrate analog audio-in and digital I2S interfaces
     Integrate temperature sensor and VBAT voltage detector
     Integrate generic SAR ADC (AUX_ADC) with a maximum of 8 channels

    Security

     Integrate true random number generator (TRNG)
     Integrated OTP for key data storage and verification
     Support flash image encryption/decryption
     Support hardware dynamic encryption/decryption for customer data (AES-CCM)

    Applications

    Data Transmission
    BLE Voice Remote Controller
    Smart Plug and Lighting
    Smart Home
    BLE Keyboard and Mouse
    Beacon/iTag
    BLE Mesh Network
    Sensor Network
