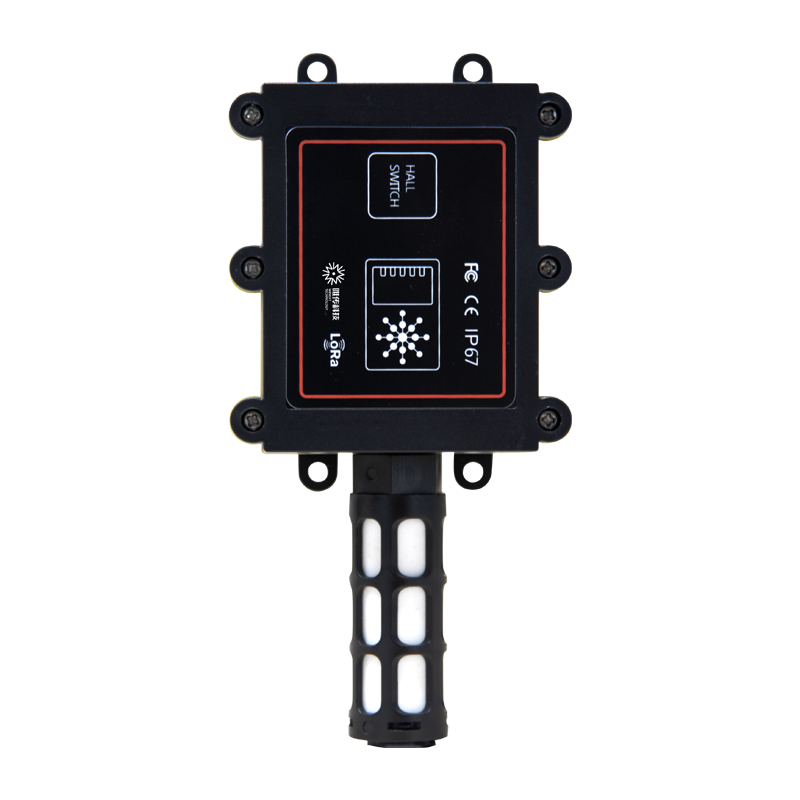

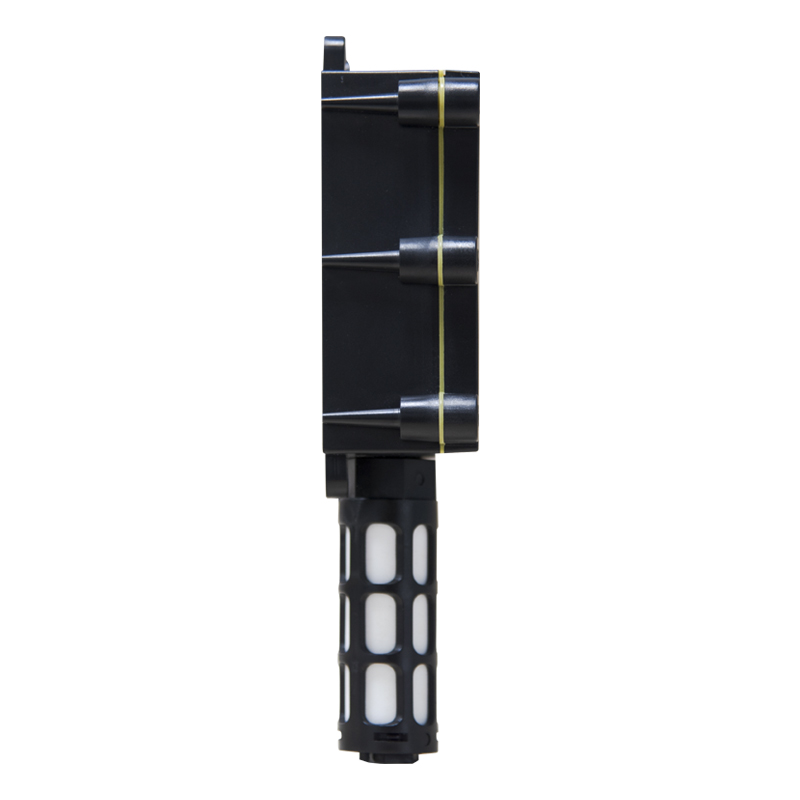

LoRaWAN Outdoor Temperature/Humidity Sensor
AN-103A LoRaWAN Temperature and Humidity Sensor is a wireless temperature and humidity acquisition.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
AN-103A LoRaWAN Temperature and Humidity Sensor is a wireless temperature and humidity acquisition. It is designed for temperature and humidity monitoring and alarm. It complies with LoRaWAN standard communication protocol and integrates data acquisition and monitoring. With a built-in temperature and humidity sensor chip, it has high detection accuracy, stable performance with low power consumption. It has a long transmission distance and reliable signal output.
Features
Support standard LoRaWANTM
High accuracy
Waterproof IP67
Working Temperature: -30℃~80℃
Specifications for LoRaWAN Outdoor Temperature/Humidity Sensor
| LoRaWAN | |
|---|---|
| Configuration Interface | UART |
| Uncategorized | |
| Frequency band | AS923 or AU915 or KR920 or US915 |
| Cable length | NA |
| Sensor | Temperature/Humidity |
| Waterproof | IP67 |
| Class | Class A |
| Power type | Battery |
| Sensor Measurement Range | -30℃~+80℃ |
| Battery Capacity | 3.6V/4000mAh |
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Industrial-grade temperature humidity sensor AN-103A for smart building, smart warehouse, smart community:
AN-103A LoRaWAN Temperature and Humidity Sensor is a wireless temperature and humidity acquisition. It is designed for temperature and humidity monitoring and alarm. It complies with LoRaWAN standard communication protocol and integrates data acquisition and monitoring. With built-in temperature and humidity sensor chip, it has high detection accuracy, stable performance with low power consumption. It has long transmission distance and reliable signal output.
Application scenarios
It is widely used in the communication machine rooms, workshop production lines, pharmaceutical warehouses, large logistics warehouses, greenhouses, flower greenhouses, archives, museum, HVAC control, and others.
Product features:
◊ Support standard LoRaWANTM
◊ High accuracy
◊ Waterproof IP67
◊ Working Temperature: -30℃~80℃
Technical Parameter:
Description | Parameter |
Communication | LoRaWANTM protocol |
Frequency | CN 470MHz~510MHz |
EU 863MHz~870MHz | |
US 902MHz~928MHz | |
AU 915MHz~928MHz | |
AS 923MHz~925MHz | |
Max Rx Power | 17dBm |
Rx sensitivity | -140dBm |
Output voltage | -30℃~+80℃ |
Power consumption | 36mW |
Battery volume | 3.6V/ 8000mAh |
Power | Built-in lithium battery |
Sleep mode current | 15uA |
Transmission current | 110mA |
Dimension | 168mm x 81mm x 36mm |
IP grade | IP67 |
