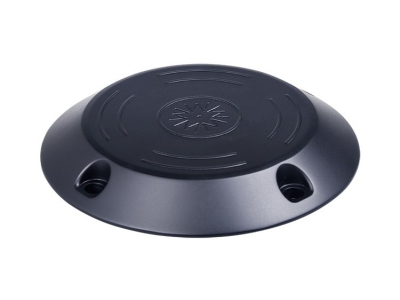

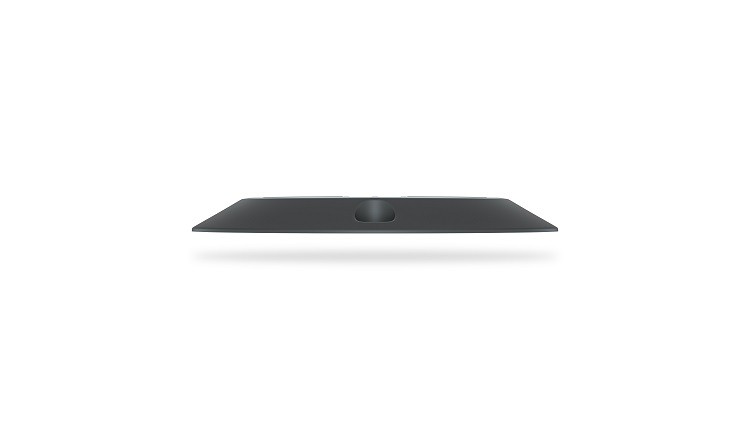

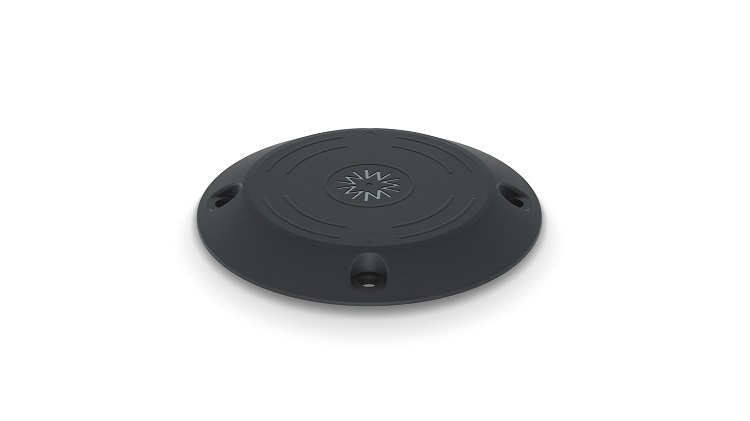

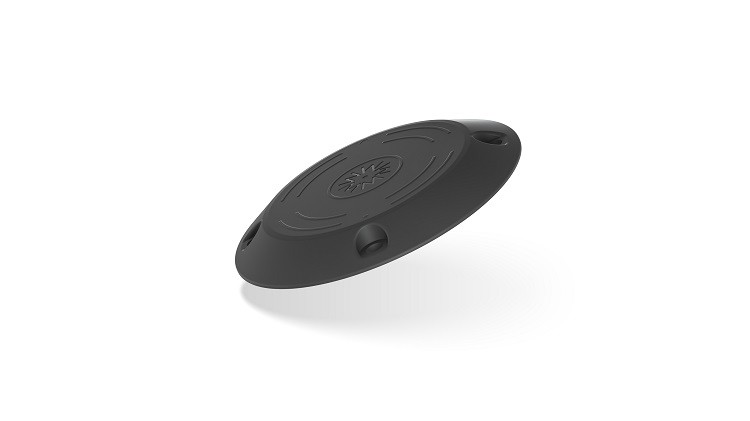

LoRaWAN Surface Mounted Type Smart Parking Sensor
AN-101D is a wireless geomagnetic equipment with radar detecting in high accuracy. Easy to install on the surface of the ground, it is widely used in urban road-side parking space and other application scenarios. It provides accurate detection of the occupied and idle status and transfers the information as digital signals to relevant smart parking systems and management platform.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
AN-101D is a surface-mounted type geomagnetic parking sensor with radar detecting based on standard LoRaWAN protocol to detect the status (occupied or empty) of a parking space. When it detects that there is a car parked in or leaving the parking space, the status information of the parking space will be sent to a LoRa gateway, and the gateway will transmit the information to the LoRa network server, which will then decode the LoRa data and interface with the smart parking platform to achieve real-time management of parking lots. Easy to install in-ground, it is widely used in urban roadside parking spaces and other application scenarios.
Features
Support LoRaWAN CLASS A;
Frequency (optional): CN470/AS923/EU868/US915/AU915/RU864-870/IN865-867
Support the magnetic induction of XYZ in three directions;
Radar detection for parking space occupation status
Support BLE wireless transparent communication
Built-in Li-SOCl2 battery
IP67 protection
Temperature range: -40℃～+80℃
Strong resistance to interference and easy installation
High accuracy: >98%
Low power consumption
Specifications for LoRaWAN Surface Mounted Type Smart Parking Sensor
| LoRaWAN | |
|---|---|
| Configuration Interface | Bluetooth |
| Uncategorized | |
| Frequency band | AS923 or AU915 or KR920 or US915 |
| Cable length | NA |
| Sensor | Magnetic |
| Waterproof | IP68 |
| Class | Class A |
| Power type | Battery |
| Sensor Measurement Range | NA |
| Battery Capacity | 16000mAh |
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
LoRaWAN surface-mounted parking sensor AN-101D for smart on-street parking system:
AN-101D is a surface-mounted type geomagnetic parking sensor with radar detecting based on standard LoRaWAN protocol to detect the status (occupied or empty) of a parking space. When it detects that there is a car parked in or leaving the parking space, the status information of the parking space will be sent to a LoRa gateway, and the gateway will transmit the information to the LoRa network server, which will then decode the LoRa data and interface with the smart parking platform to achieve real-time management of parking lots. Easy to install in-ground, it is widely used in urban roadside parking spaces and other application scenarios.
Product feature
l Support LoRaWAN CLASS A;
l Frequency (optional): CN470/AS923/EU868/US915/AU915/
RU864-870/IN865-867
l Support the magnetic induction of XYZ in three directions;
l Radar detection for parking space occupation status
l Support BLE wireless transparent communication
l Built-in Li-SOCl2 battery
l IP67 protection
l Temperature range: -40℃～+80℃
l Strong resistance to interference and easy installation
l High accuracy: >98%
l Low power consumption
Hardware:
Item | Description |
1.Sensor | Three-axis magnetic sensor |
2.Radar | Millimeter-wave radar detecting |
3.Power | 3.6V/19Ah Li-SOCL2 battery |
4.Frequency (optional) | CN470MHz /EU868MHz US 915MHz /AS923MHz AU915MHz/RU864-870 /IN865-867 |
5.Power supply | 3.6V/16000mAh, built-in Li-SOCL2 battery |
6.Idle current | ≤15uA |
7.Working current | ≤125mA |
8.Rx current | ≤15mA |
9.Antenna | Built-in LoRa antenna and radar antenna |
10.Temperature range | -40℃～+80℃ |
11.Installation | Surface-mounted |
12.Life cycle | 4 years(based on occupied status change 20 times per day) |
13.Load-bearing | 10T |
14.Dimension | Φ195mm*29.5mm |
Software:
Item | Description |
Accuracy | > 98% |
Wireless configuration | Support BLE wireless configuration |
Calibration | Support dynamic automatic calibration |
Temperature compensation | Support |
Protocol | LoRaWAN Class A |
Data transfer | Support data re-sending within 3 times |
Heartbeat interval | 6h by default, it can be set by users. |
Configuration tool | Support web-based graphical configuration, and wireless serial port configuration |
