Manufacturing Company :     Minew

nRF52805 Bluetooth 5.0 Module w Ant

    SG$ 2.52 SG$ 2.52 2.5199000000000003 SGD

    US$ 1.98

    SG$ 2.52

    This combination does not exist.

    Lead Time : 3.0 weeks

    Add to Cart Get Best Price

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products

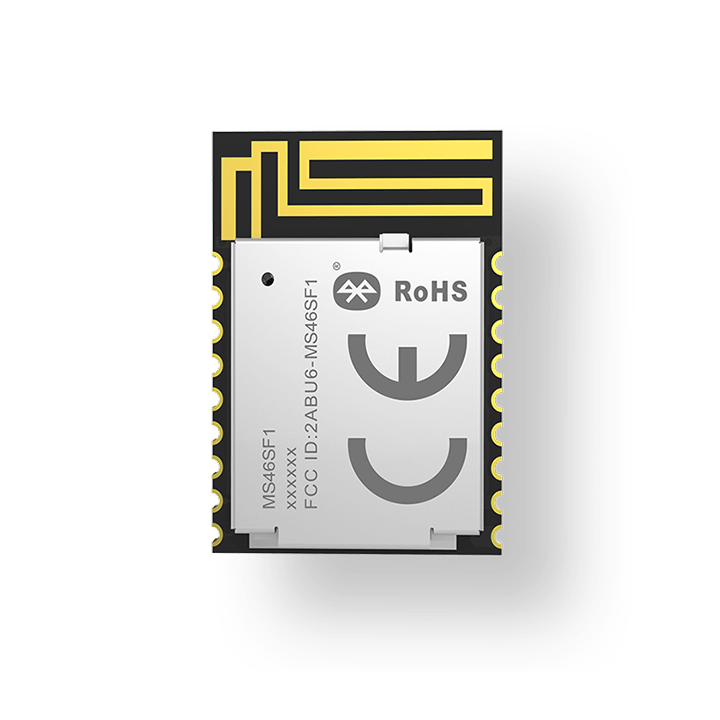

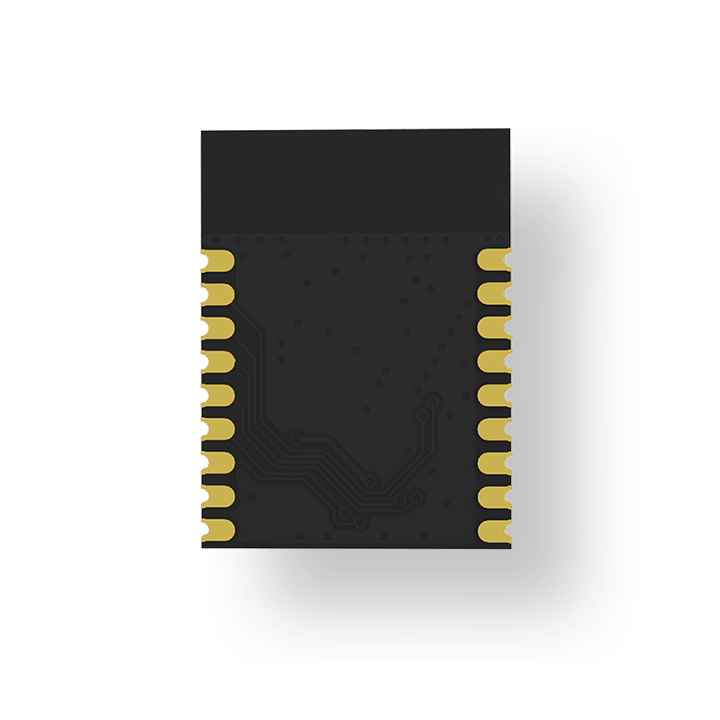

    MS46SF11 is compact size, highly flexible, ultra-low power wireless BLE 5.0 Module based on nRF52805 SoCs. With a powerful 32-bit ARM Cortex® M4 CPU, a 192KB flash memory, a 24KB RAM and integrating a 2.4 GHz Transceiver, the module can offer perfect solution for Bluetooth connectivity.

    MS46SF11 is ideal for cost-constrained applications. It is the best choice for applications such as beacons, disposable medical devices, sensors etc.

    Product Characteristics

    icon_close
    • Highly Integrated Solution
    • With Nordic nRF52805 ARM Cortex-M4 processor
    • Integrated external 32.768K crystal oscillator
    • PCB Trace Antenna support external antenna connection, Metal Shied
    • 192KB Flash and 24KB RAM
    • Support Preload Minew High Speed Slave Uart Firmware
    • Support iBeacon Broadcast Mode

    Specification

    icon_close
    Product Variants:MS46SF11-1Y05AIR
    PCB Antenna:√
    Chip Inside:nRF52805
    Bluetooth Qualification:v5.0(Bluetooth Low Energy)
    Bluetooth low Energy Output Power EIRP[dBm]:4
    Maximum Range [m]:100
    Maximum Number Of Connections:8
    Standalone Module Open CPU:√
    UART:1
    SPl:2
    TwI (2C compatible):1
    GPIO:6
    ADC:2
    PWM:1
    Minimum Supply [M]:1.7
    Maximum Supply [M]:3.6
    Maximum Temperature [C]:85
    Minimum Temperature [C]:-40
    Size [mm]:15.8 x 12 x 2
