Manufacturing Company :
Minew

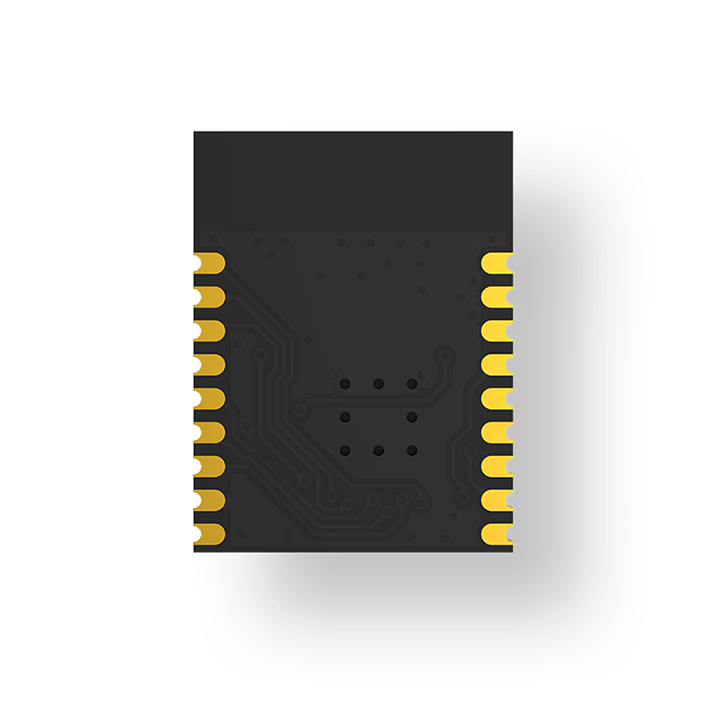

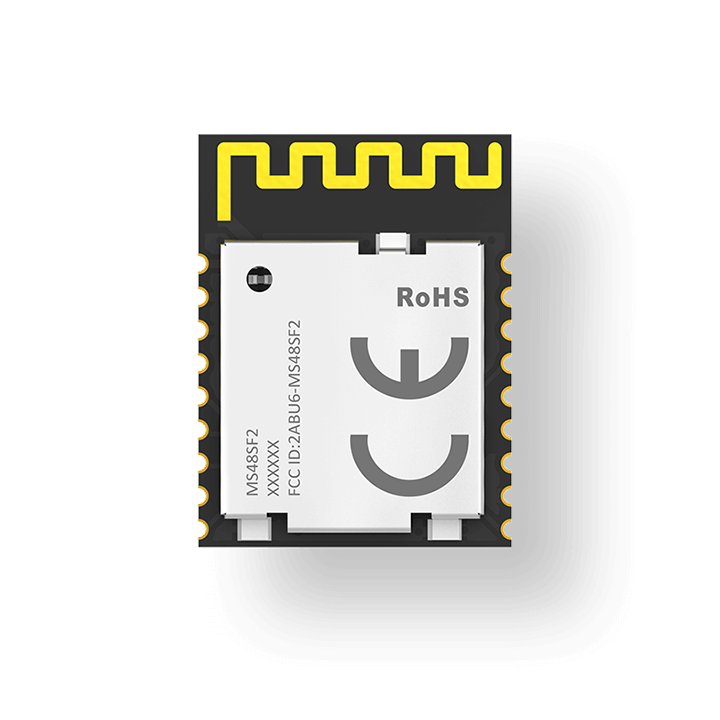

m1805 Bluetooth 5.0 Module w Ant
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Download
The M1805 – MS48SF2 module is a compact size, cost-effective, highly flexible, ultra-low-power wireless BLE 4.0 Module based on Minew m1805 SoC with a high-performance PCB antenna and support external antenna connection. Its complete regulatory certifications enable faster time to market and reduced the development risk of your Bluetooth design.
Product Characteristics
- Highly Integrated Solution
- Wth Minew m1805 SoCs, with ARM Cortex-M4 processor
- Integrated external 32.768K crystal oscillator
- Available with PCB Antenna and support external antenna connection, metal shield
- 512KB Flash and 128KB RAM
- Support Preload Minew Slave Uart Firmware
- Support iBeacon Broadcast Mode
Specification
| Product Variants： | M1805-MS48SF2 |
| PCB Antenna： | √ |
| Chip Inside： | M1805 |
| Bluetooth Qualification： | v4.0(Bluetooth Low Energy) |
| Bluetooth low Energy Output Power EIRP[dBm]： | 5 |
| Maximum Range [m]: | 60 |
| Maximum Number Of Connections： | / |
| Standalone Module Open CPU： | X |
| UART： | / |
| SPl： | / |
| TwI（2C compatible）： | / |
| GPIO： | / |
| ADC： | / |
| PWM： | / |
| Minimum Supply [M]: | 3 |
| Maximum Supply [M]: | 3.6 |
| Maximum Temperature [C]： | 60 |
| Minimum Temperature [C]: | -30 |
| Size [mm]: | 15.8×12×2 |
