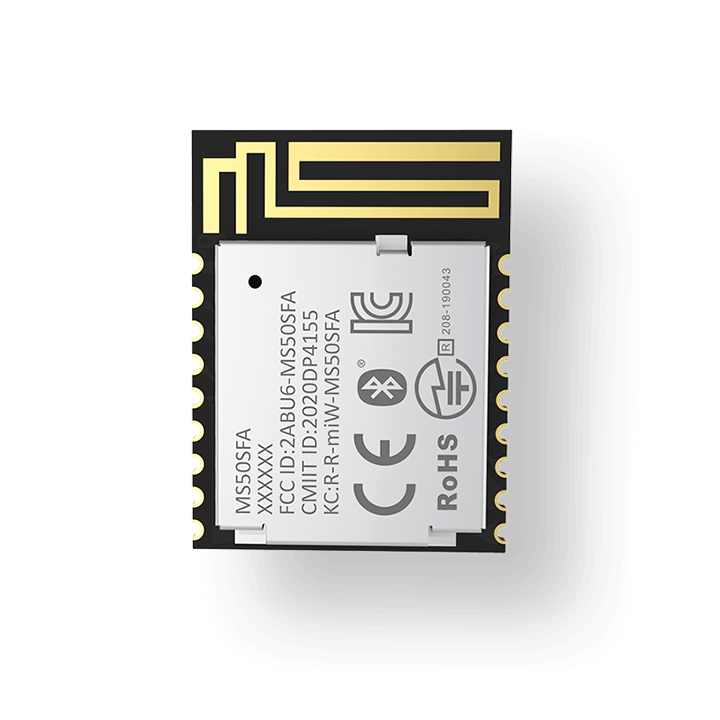

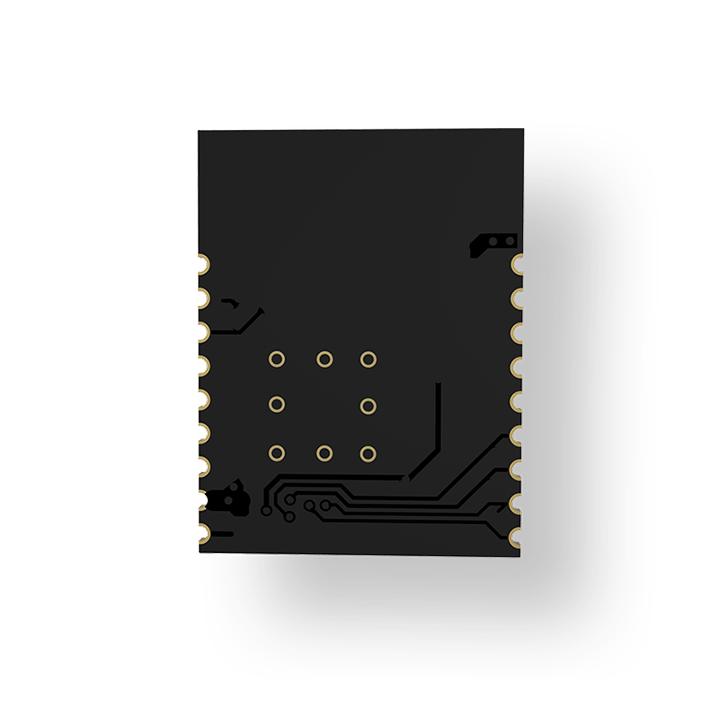

nRF52810 Bluetooth 5.0 Module w Ant
MS50SFA series brings out all nRF52810/nRF52832 hardware features and capabilities including high-speed 2 Mbps feature, ANT and 2.4 GHz proprietary protocols.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Download
Bluetooth 5.0 low energy module
MS50SFA series brings out all nRF52810/nRF52832 hardware features and capabilities including high-speed 2 Mbps feature, ANT and 2.4 GHz proprietary protocols. Integrated DCDC inductor and an external 32.768K crystal oscillator reduce design complexity and BOM cost. Complete regulatory certifications enable faster time to market and reduced development risk of your Bluetooth design.
Product Characteristics
- Highly Integrated Solution
- Available with Nordic nRF52810/nRF52832 SoCs, with ARM Cortex-M4 processor
- Integrated external 32.768K crystal oscillator
- Available with PCB Trace and Ceramic Antenna, support external antenna connection,Metal Shied
- 512/192KB Flash and 64/24KB RAM
- Support Preload Minew High Speed Master/Slave Uart Firmware
- Support iBeacon Broadcast Mode
Specification
| Product Variants: | MS50SFA-1Y10AIR |
| PCB Antenna: | √ |
| Chip Inside: | nRF52810 |
| Bluetooth Qualification: | v5.0(Bluetooth Low Energy) |
| Bluetooth low Energy Output Power EIRP[dBm]: | 4 |
| Maximum Range [m]: | 100 |
| Maximum Number Of Connections: | 8 |
| Standalone Module Open CPU: | √ |
| UART: | 1 |
| SPl: | 1 |
| TwI (2C compatible): | 1 |
| GPIO: | 13 |
| ADC: | 5 |
| PWM: | 4 |
| Minimum Supply [M]: | 1.7 |
| Maximum Supply [M]: | 3.6 |
| Maximum Temperature [C]: | 85 |
| Minimum Temperature [C]: | -40 |
| Size [mm]: | 15.8 ×12× 2 |
