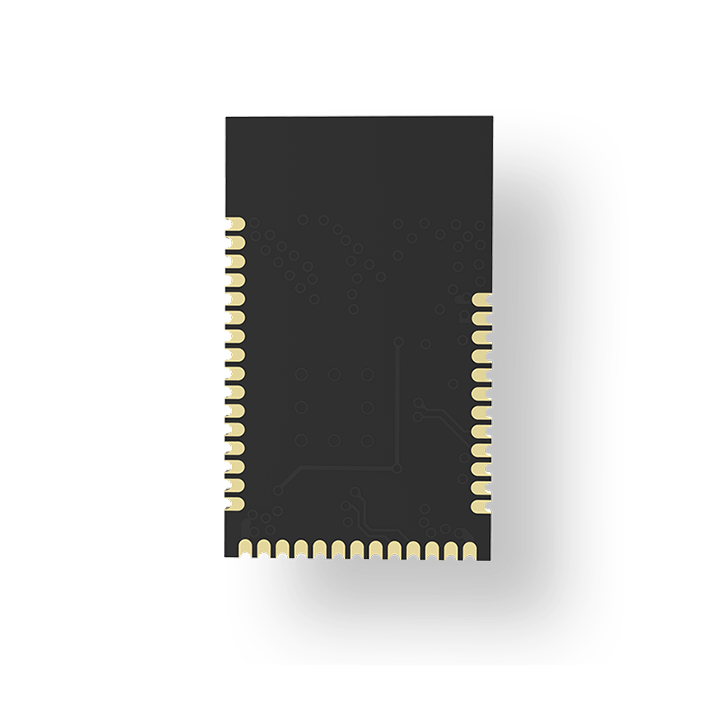

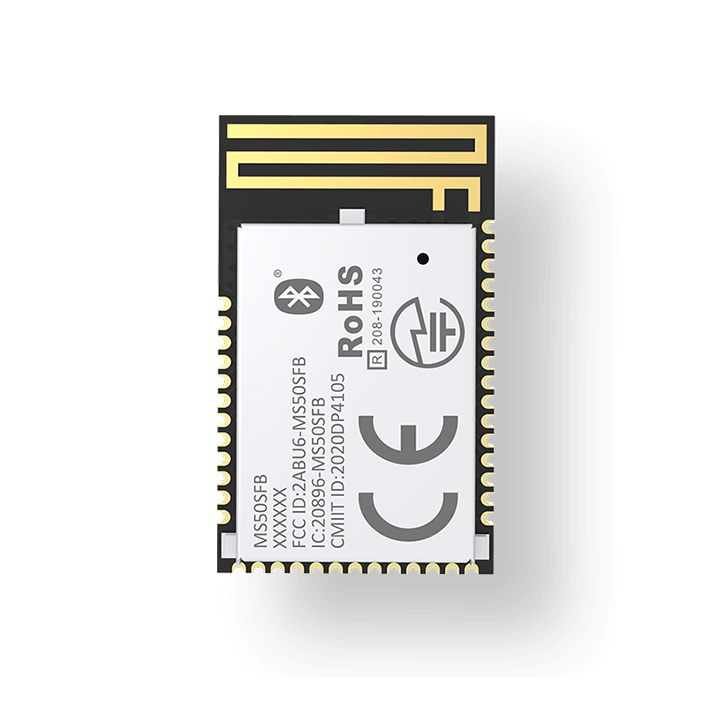

nRF52832 Bluetooth 5.0 Module w Ant
The MS50SFB1 module is a powerful, compact size, highly flexible, ultra-low power wireless BLE 5.0/5.1 Module based on Multi Nordic nRF52 series SoCs with an optimized
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Download
The MS50SFB1 module is a powerful, compact size, highly flexible, ultra-low power wireless BLE 5.0/5.1 Module based on Multi Nordic nRF52 series SoCs with an optimized and complete radio design of 3 types of antenna available: PCB/Ceramic antenna or u.FL(IPEX) connector for external antenna. It’s complete regulatory certifications enable faster time to market and reduced development risk of your Bluetooth design.
Product Characteristics
- Highly Integrated Solution
- Available with Nordic nRF52810/nRF52811/nRF52832 SoCs, with ARM Cortex-M4 processor
- Integrated external 32.768K crystal oscillator
- Available with PCB Trace/Ceramic Antenna and u.FL connector, Metal Shied
- 512/192KB Flash and 64/24KB RAM
- Support Preload Minew High Speed Master/Slave Uart Firmware(Except nRF52811 version)
- Support iBeacon Broadcast Mode
Specification
| Product Variants: | MS50SFB1-1Y10AIR |
| PCB Antenna: | √ |
| Chip Inside: | nRF52810 |
| Bluetooth Qualification: | v5.0(Bluetooth Low Energy) |
| Bluetooth low Energy Output Power EIRP[dBm]: | 4 |
| Maximum Range [m]: | 100 |
| Maximum Number Of Connections: | 8 |
| Standalone Module Open CPU: | √ |
| UART: | 1 |
| SPl: | 1 |
| TwI (2C compatible): | 1 |
| GPIO: | 32 |
| ADC: | 8 |
| PWM: | 4 |
| Minimum Supply [M]: | 1.7 |
| Maximum Supply [M]: | 3.6 |
| Maximum Temperature [C]: | 85 |
| Minimum Temperature [C]: | -40 |
| Size [mm]: | 20 ×12× 2 |
