Specifications for nRF52840 Bluetooth 5.0/5.1 Module w Ant
| Antenna | Chip Antenna or PCB Antenna or iPex Connector |
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Download

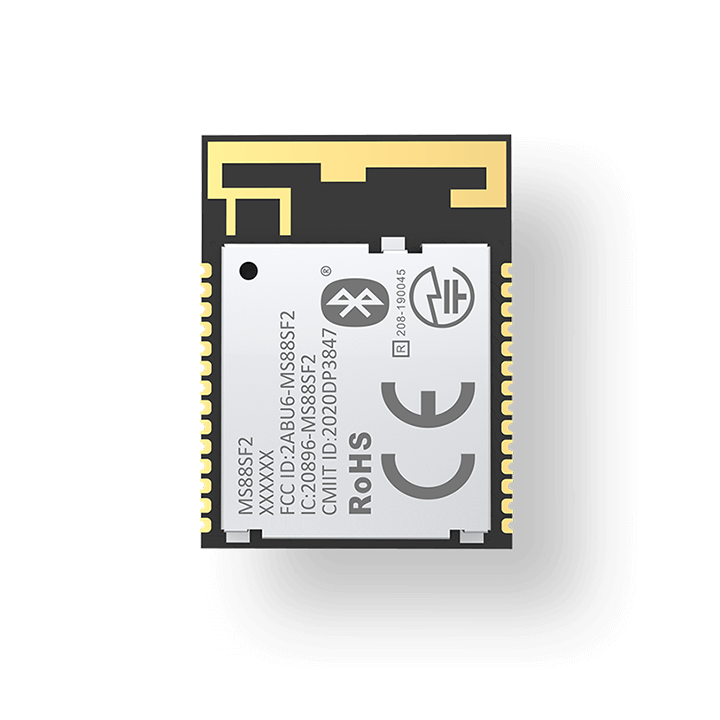

The MS88SF21 module is an advanced, compact size, highly flexible, ultra-low power wireless BLE 5.0/5.1 Module based on Nordic nRF52840/52833 SoC with an optimized and complete radio design of 2 types of antenna available：PCB antenna or u.FL(IPEX) connector for external antenna. MS88SF2 series brings out all nRF52840/nRF52833 hardware features and capabilities including USB access, up to +8 dBm transmit power up to 5.5V supply considerations, and 802.15.4 (Thread/Zigbee) implementation, Bluetooth 5 Long Range Feature and advanced security capabilities.
Product Characteristics
- Highly Integrated Solution
- Available with Nordic nRF52840/nRF52833 SoCs, with ARM Cortex-M4 processor
- Integrated external 32.768K crystal oscillator
- Available with PCB Trace and u.FL connector, Metal Shied
- 1MB/512KB Flash and 256/128KB RAM
- Support Preload Customer Firmware
Specification
| Product Variants: | MS88SF21-1Y40AIR |
| PCB Antenna: | √ |
| Chip Inside: | nRF52840 |
| Bluetooth Qualification: | v5.0(Bluetooth Low Energy) |
| Bluetooth low Energy Output Power EIRP[dBm]: | 8 |
| Maximum Range [m]: | 800 |
| Maximum Number Of Connections: | 8 |
| Standalone Module Open CPU: | √ |
| UART: | 2 |
| SPl: | 7 |
| TwI (2C compatible): | 2 |
| GPIO: | 48 |
| ADC: | 4 |
| PWM: | 16 |
| Minimum Supply [M]: | 1.7 |
| Maximum Supply [M]: | 5.5 |
| Maximum Temperature [C]: | 85 |
| Minimum Temperature [C]: | -40 |
| Size [mm]: | 23.2*17.4*2mm |
