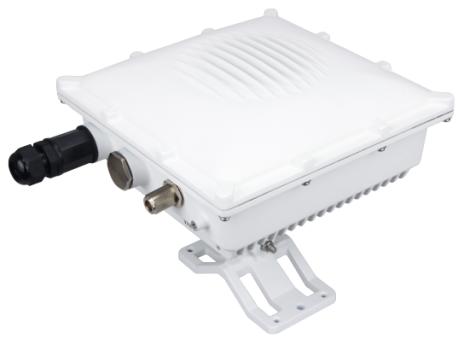

Outdoor Gateway Enclosure

This Enclosure is made of Industrial Die-Cast Aluminum and rated NEMA-67, Designed to withstand the toughest environments

  • Variant

SG$ 92.50

This combination does not exist.

Lead Time : 3.0 weeks

Add to Cart Get Best Price

This Enclosure is made of Industrial Die-Cast Aluminum and rated NEMA-67, Designed to withstand the toughest environments

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


FIND OUT MORE

Specifications for Outdoor Gateway Enclosure

Variant 5 N type Connector or 2 N type Connectors or 2 N type Connectors with Ethernet Cable
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Designed to withstand the toughest of environments, this enclosure is made of Industrial Die-Cast Aluminum. It is rated IP67/NEMA-6, making it completely protected from dust ingress and submergible up to 1m in water.

Complete documentation of this product can be found on our website documentation page.

Thermal Characteristics

  • Enclosure seal operating temperature range: -60°C to 230°C
  • Heat Trap: +6.5°C under full sun exposure (~ 100,000 Lux)
  • Temperature raise using a 5-10W heat source: +5.5°C

Ports

  • Ports For RAKBox-GW-1

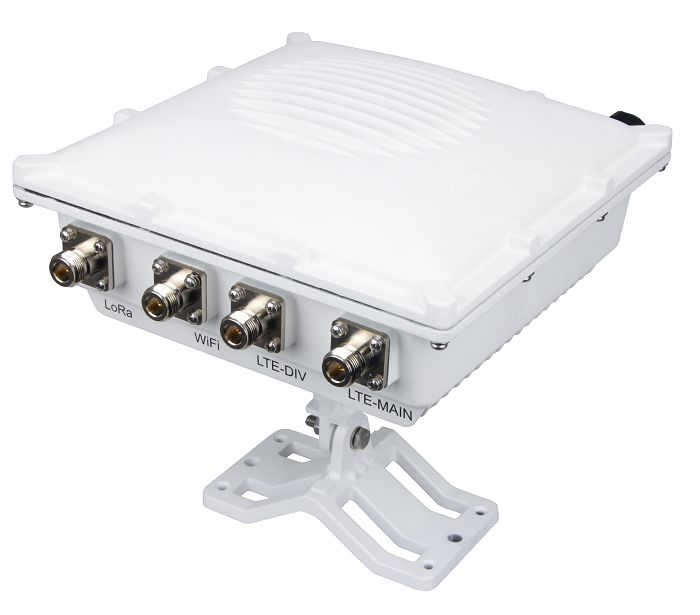

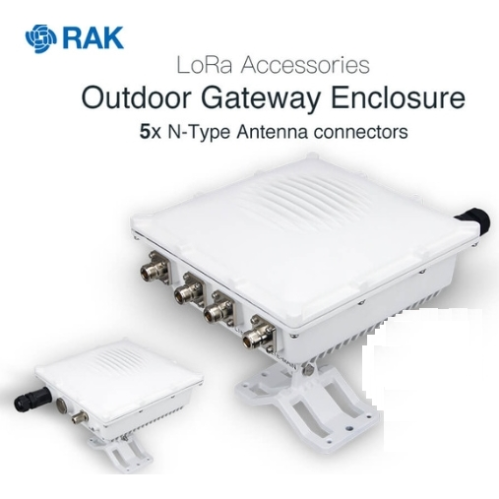

    • 5x N-Type Antenna connectors
    • 1x Ethernet cable gland
    • 1x Reserved port
  • For RAKBox-GW-0
    • 2x N-Type Antenna connectors

Supported Products

  • WisGate Edge Max (RAK7249)
  • RAK831 Concentrator Boards
  • RAK7243C Pilot Gateway

Packaging

  • Product Dimensions: 450mm x 300mm x 150mm
  • Product Weight: 3400g
  • Inclusions:
    • Enclosure together with connectors
    • The full assembly kit is included
