PE42359 AEC-Q100 SPDT RF switch

AEC-Q100 Certified SPDT, Low IL, Reflective, 50Ω RF Switch

    SG$ 1.07 SG$ 1.07 1.0691000000000002 SGD

    US$ 0.84

    SG$ 1.07

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    AEC-Q100 Certified SPDT, Low IL, Reflective, 50Ω RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    Do something

    Overview


    LoRa tester AN-106 based on LoRa module. AN-106 LoRa tester is with LCD screen and connect with gateway via OTAA network joining. It can test the UPLINK and DOWNLINK packet loss rate and meanwhile users can get RSSI and SNR of gateway transmission. Users can also turn on the GPS to display the latitude and longitude coordinates of the device, and check the LoRoWAN CLASS type and the firmware version number of the LoRa tester.

    Features

    • Support LoRa wireless communication , support CN470-510MHz/868MHz/915MHzï¼›

    • Support GPS locating with the accuracy of within 5M;

    • With built-in lithium battery can support the system for 36 hours;

    • With LCD screen, which can support text interface display;

    • Full plastic shell structure design;

    • Wide working temperature range, to achieve industrial -20℃~+70℃;

    • Support real-time communication with gateway, can get RSSI and SNR of gateway transmission;

    • Support statistics of packet loss rate of communication between gateway and nodes

    Applications

    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE42359 UltraCMOS® RF switch is designed to cover a broad range of applications from 10 MHz through 3 GHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface, and can be controlled using either single-pin or complementary control inputs. Using a nominal 3V power supply voltage, a typical input 1 dB compression point of 33.5 dBm can be achieved. PE42359 also meets the quality and performance standards for automotive applications and has received AEC-Q100 Grade 2 certification.

    Key Features

        AEC-Q100 Grade 2 certified
        Supports operating temperature up to +105°C
        Single-pin or complementary CMOS logic control inputs
        Low insertion loss
        Isolation of 30 dB @ 1000 MHz
        High ESD tolerance of 2kV HBM
        Typical input 1 dB compression point of +33.5 dBm
        1.8V minimum power supply voltage

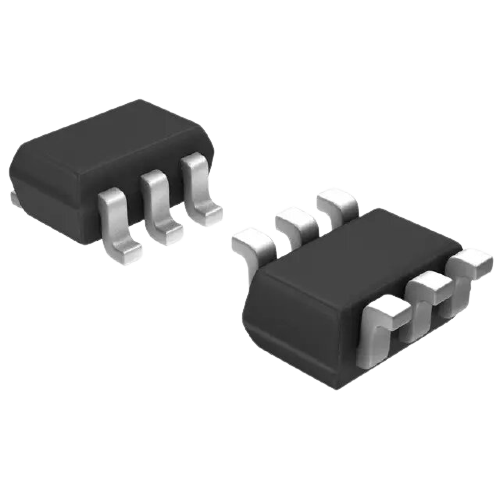

        Packaging: 6‐lead SC‐70

    Specifications

    DescriptionSPDT (R)
    Min Freq.10 MHz
    Max Freq.3000 MHz
    Max Typ. IL (dB)1.10
    Min Typ. IL (dB)0.35
    Max Typ. Iso (dB)35
    Min Typ. Iso (dB)14
    P1/0.1dB (dBm)33.5/-
    IIP3 (dBm)55
    Package6L SC-70
    Package (mm)1.25x2
