Manufacturing Company :

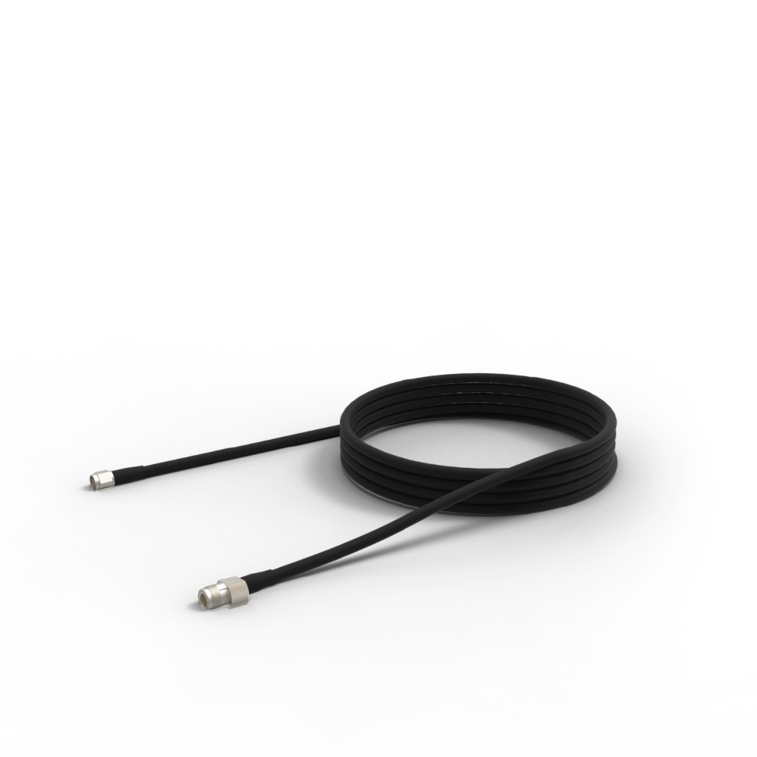

Pulsar Cable

The Pulsar cable is a high-grade, low-loss cable, suitable for outdoor applications with WisGate Edge Prime, Max, and Pro (RAK7240, RAK7249, and RAK7289). This cable allows you to better position the gateway's antennas for optimal coverage.

  • Connector
  • Antenna
  • Cable length

SG$ 75.09 SG$ 75.09 75.0881 SGD

US$ 59.00

SG$ 75.09

This combination does not exist.

Lead Time : 2.0 weeks

Add to Cart Get Best Price

The Pulsar cable is a high-grade, low-loss cable, suitable for outdoor applications with WisGate Edge Prime, Max, and Pro (RAK7240, RAK7249, and RAK7289). This cable allows you to better position the gateway's antennas for optimal coverage.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

Shenzhen Rakwireless Technology Co., Ltd. (RAK) was established in June 2014. Based in Shenzhen with an R&D center in Shanghai and an office in Beijing, RAK devoted to developing and supplying advanced IoT technology and services. RAK has become a one-stop IoT solution supply company from R&D, production to sales. Based on rich experiences on IoT industry, the RAK founder and his team focus on developing IoT Middleware, which is the company core competence, and supply end to end IoT solutions to customers. Besides having accumulated many experiences of most of main protocols such as HomeKit, Amazon Echo, NEST, IFTTT, Z-Wave and LoRa, RAK is also an Apple Homekit licensee, Amazon IoT Consulting Partner, Z-Wave Alliance Member and Google Thread Member.

FIND OUT MORE

Specifications for Pulsar Cable

Antenna
Connector N Type Male /N Type Female
Uncategorized
Antenna for 12dBi Directional Antenna or for omni Antenna
Cable length 10m or 5m
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Product Description

RAK9731

The Pulsar cable is a high-grade, low-loss cable, suitable for outdoor applications with WisGate Edge Prime, Max, and Pro (RAK7240, RAK7249, and RAK7289).  This cable allows you to better position the gateway's antennas for optimal coverage.

Power Loss
Frequency 1.5-m / 4.9-f Length 3-m / 9.8-f Length 5-m / 16.40-f Length 10-m / 32.80-f Length
433 - 435 MHz ≤ 0.30 dB ≤ 0.15 dB ≤ 0.65 dB ≤ 1.15 dB
470 - 510 MHz ≤ 0.35 dB ≤ 0.50 dB ≤ 0.70 dB ≤ 1.20 dB
863 - 870 MHz ≤ 0.10 dB ≤ 0.63 dB ≤ 0.85 dB ≤ 1.65 dB
902 - 930 MHz ≤ 0.15 dB ≤ 0.65 dB ≤ 0.90 dB ≤ 1.70 dB

RAK9733

The Pulsar cable is a high-grade, low-loss cable, suitable for all gateways from the WisGate Developer series and the RAK Hotspot Miner. This cable allows you to better position the gateway's antennas for optimal coverage.

Power Loss

Frequency 1.5-m / 4.9-f Length 3-m / 9.8-f Length 5-m / 16.40-f Length 10-m / 32.80-f Length
433 - 435 MHz ≤ 0.30 dB ≤ 0.15 dB ≤ 0.65 dB ≤ 1.15 dB
470 - 510 MHz ≤ 0.35 dB ≤ 0.50 dB ≤ 0.70 dB ≤ 1.20 dB
863 - 870 MHz ≤ 0.10 dB ≤ 0.63 dB ≤ 0.85 dB ≤ 1.65 dB
902 - 930 MHz ≤ 0.15 dB ≤ 0.65 dB ≤ 0.90 dB ≤ 1.70 dB

Product Features

  • RAK9731
    • Cable length variants: 1.5 m, 3 m, 5 m, 10 m
    • Connector: N-type male to N-type female
    • Frequency Range: 0~6 GHz
    • Cable type: LMR400
    • VSWR: ≤ 1.5
  • RAK9733
    • Cable length variants: 5 m, 10 m
    • Connector: RP-SMA male to N-type female
    • Frequency Range: 0~6 GHz
    • Cable type: LMR400
    • VSWR: ≤ 1.5
