R313CC-Wireless 2-Gang Door/Window Sensor

Manufacturing Company :

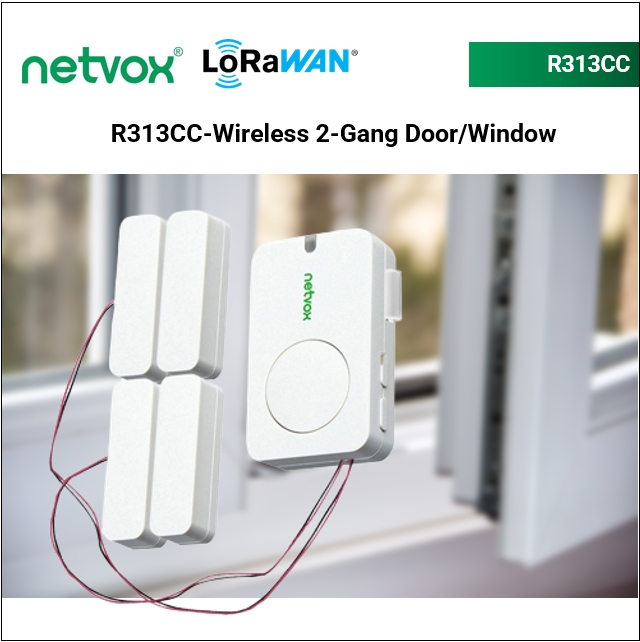

R313CC-Wireless 2-Gang Door/Window Sensor

R313CC is equipped with two external reed switches, which can be used for door and window switch state detection. The built-in wireless module can realize wireless alarm and other functions, and is compatible with the LoRaWAN protocol.

Configuration Interface
Waterproof
Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
Transmit Power
Chipset
Sensors

SG$ 117.94

This combination does not exist.

Lead Time : 6.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

The R313B uses a photosensor. The output current of the photosensor changes in the same direction as the ambient light intensity changes. By detecting the change in the input level value, the corresponding illumination intensity is detected.

Features

• Adopt SX1276 wireless communication module
• 2 x 3.0V CR2450 button batteries
• 2-gang reed switch status detection
• Compatible with LoRaWAN™ Class A
• Frequency Hopping Spread Spectrum (FHSS)
• Configuration parameters can be configured through a third-party software platform
• Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
• Low power consumption and long battery life Improved

Specifications for R313CC-Wireless 2-Gang Door/Window Sensor

LoRaWAN
Configuration Interface	UART
Uncategorized
Frequency band	AS923 or AU915 or EU868 or US915
Waterproof	IP30
Class	Class A
Power type	2 pcs 3.0V CR2450 button batteries
Sleep Power consumption	12uA
Rx Sensitivity	-136dBm
Transmit Power	16dBm
Chipset	SX1276
Sensors	Magnetic

R313CCUser manual
R313CCDatasheet

Electric:

Power Supply	2 x 3.0V CR2450 button batteries
Operation Voltage	DC 2.4V to 3.0V
Standby Current	10uA/3.0V
Transmitting Current (max)	120mA / 3.0V
Receiving Current (max)	11mA/ 3.0V
Battery Measurement Accuracy	± 0.1V
Low Voltage Threshold	2.4V

Frequency:

Frequency Range	863MHz-928MHz 470MHz-510MHz
TX Power	US915 20dbm； AS923 16dbm； AU915 20dbm； CN470 19.15dbm； EU868 16dbm； KR920 14dbm； IN865 20dbm；
Receiving Sensitivity	-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )； -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type	External antenna
Communication Distance	Up to 10 km (visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate	LoRa: 0.3kbps～50kbps FSK: 1.2kbps～300kbps
Modulation	LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band	EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, IN865-867,CN470-510 (Note: The frequency band is optional and needs to be configured before shipment)

Physical:

Main Body Dimension	57mm x 38.05mm x 15mm
Weight	48.9g
Operating Temperature	-20°C ~ 55°C
Storage Temperature	-40°C ~ 85°C
Ambient Humidity	<90%RH (No condensation)
