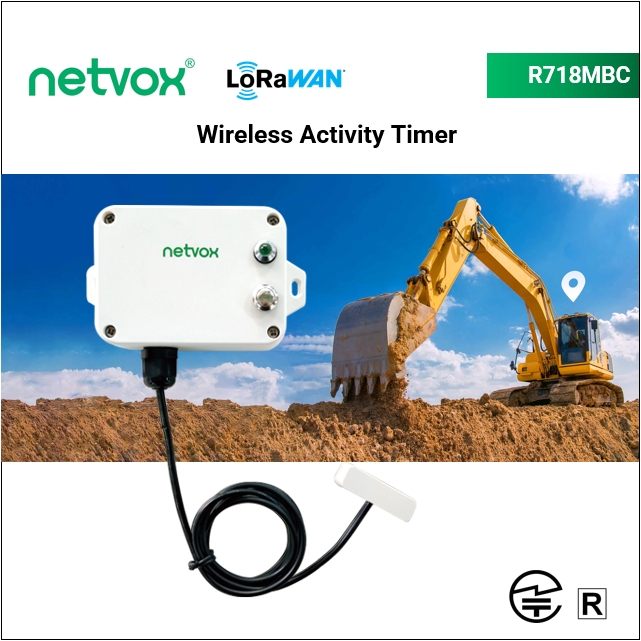

R718MBC Wireless Activity Timer

The Netvox R718MBC LoRaWAN device detects the duration of the movement or vibration (timekeeping) and sends the duration or timing information of the movement or vibration to the gateway for processing. The duration of the movement or vibration can be up to 1000 hours (theoretical value). The R718MBC uses sx1276 wireless communication module. The communication is fully compatible with LoRaWAN™ protocol (class A).

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • TX Power
  • Chipset
  • Sensors

SG$ 160.87

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

The Netvox R718MBC LoRaWAN device detects the duration of the movement or vibration (timekeeping) and sends the duration or timing information of the movement or vibration to the gateway for processing. The duration of the movement or vibration can be up to 1000 hours (theoretical value). The R718MBC uses sx1276 wireless communication module. The communication is fully compatible with LoRaWAN™ protocol (class A).

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

The Netvox R718MBC LoRaWAN device detects the duration of the movement or vibration (timekeeping) and sends the duration or timing information of the movement or vibration to the gateway for processing. The duration of the movement or vibration can be up to 1000 hours (theoretical value). The R718MBC  uses sx1276 wireless communication module. The communication is fully compatible with LoRaWAN™ protocol (class A).


    Features

    • Wireless Range of 10 Km (Actual Range May Vary Depending On Environment)
    • LoRaWAN™ Class A Compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management For Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
    • Battery Life: 5 Years (Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

              Specifications for R718MBC Wireless Activity Timer

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP67
              Class Class A
              Power type 2 X 3.6V ER14505 AA
              Sleep Power consumption 76uA
              Rx Sensitivity -136dBm
              TX Power 16dBm
              Chipset SX1276
              Sensors Vibration
              This is a preview of the recently viewed products by the user.
              Once the user has seen at least one product this snippet will be visible.

              Recently viewed Products


              R718MBC NETVOX LORAWAN WIRELESS ACTIVITY TIMER

              The Netvox R718MBC LoRaWAN device detects the duration of the movement or vibration (timekeeping) and sends the duration or timing information of the movement or vibration to the gateway for processing. The duration of the movement or vibration can be up to 1000 hours (theoretical value). The R718MBC  uses sx1276 wireless communication module. The communication is fully compatible with LoRaWAN™ protocol (class A).

              FEATURES:

              • Wireless Range of 10 Km (Actual Range May Vary Depending On Environment)
              • LoRaWAN™ Class A Compatible
              • Frequency Hopping Spread Spectrum (FHSS)
              • Improved Interference Immunity
              • Improved Power Management For Longer Battery Life
              • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
              • Battery Life: 5 Years (Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
              • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
              • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

                Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell

                Electric:

                Input Power

                2 X 3.6V ER14505 AA Lithium Batteries
                (3.6V 2400mah/Section）

                Sleeping Mode

                76 UA

                Wake Up Mode

                6.3mA@3.3V

                Receiving Current (Max)

                11mA @3.3V

                Transmitting Current (Max)

                120mA/3.3V

                Battery Voltage Measurement
                Accuracy

                ±0.1V

                Low Voltage Threshold

                3.2V


                Frequency:

                TX Power

                19dBm±1dBm

                Rx Sensitivity

                -136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
                -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

                Antenna Type

                Build-In Antenna

                Communication Range

                10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)

                Data Transfer Rate

                0.3kbps～50kbps

                Spread Technique

                LoRa/FSK

                Available Frequency

                US915       AU915       AS923 EU868       KR920       CN470
                Configured Before Shipment


                Physical:

                Dimension

                Main Part: L: 112mm*W: 65mm*H: 32mm

                Weight

                141g

                Environment Temperature Range

                -20℃ ～ 55℃

                Environment Humidity Range

                <90% RH  (No Condensation)

                Storage Temperature

                -40℃ ～ 85℃

                IP Rating (Main Part)

                IP67

                IP Rating (External Sensor)

                IP67
