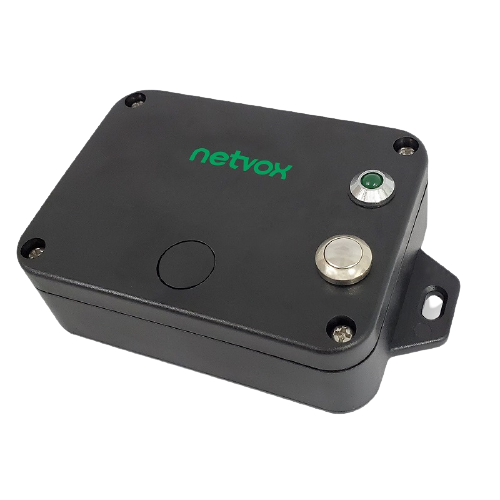

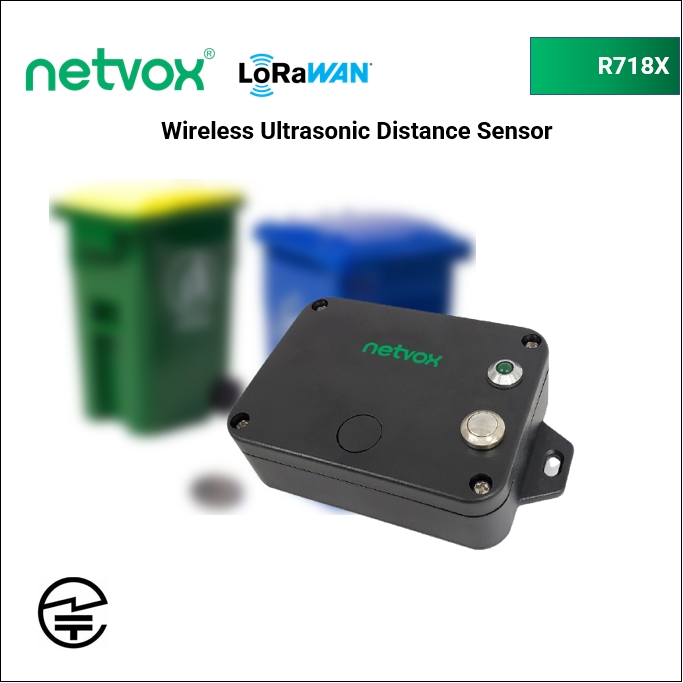

R718X Wireless Ultrasonic Distance Sensor

R718X is a wireless device that detect distance by ultrasonic ranging sensor. R718X also equips an NTC temperature sensor and will send alarm message while detecting abnormal temperature; it also equips with three-axis digital accelerometer sensor and would send out a warning while detects tilt, and the warning would be sent based on LoRa communication protocol.

  • Sensor
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Certification
  • Cable length

SG$ 199.69

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

R718X is a wireless device that detect distance by ultrasonic ranging sensor. R718X also equips an NTC temperature sensor and will send alarm message while detecting abnormal temperature; it also equips with three-axis digital accelerometer sensor and would send out a warning while detects tilt, and the warning would be sent based on LoRa communication protocol.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

R718X is a wireless device that detects distance by the ultrasonic ranging sensor. R718X also equips an NTC temperature sensor and will send alarm messages while detecting abnormal temperature; it also equips with three-axis digital accelerometer sensor and would send out a warning while detecting tilt, and the warning would be sent based on LoRa communication protocol.

              Features

              Apply SX1276 wireless communication module
              2 sections ER14505 3.6V Lithium AA battery
              Tilt angle detection
              Temperature detection
              Distance detection
              The base is attached with a magnet that can be attached to a ferromagnetic material object
              Protection level: Main body IP65
              Compatible with LoRaWANTM Class A
              Frequency hopping spread spectrum technology
              Configuration parameters can be configured through third-party software platforms, data can be read and alarms can be set via SMS text and email (optional)
              Available third-party platform: Actility / ThingPark, TTN, MyDevices/Cayenne
              Low power consumption and long battery life

                        Specifications for R718X Wireless Ultrasonic Distance Sensor

                        Frequency band AS923 or AU915 or EU868 or US915
                        Sensor Ultrasonic + NTC Temperature + Tilt
                        Waterproof IP30
                        Class Class A
                        Power type 2 x ER14505
                        Sleep Power consumption 70uA
                        Rx Sensitivity -136dBm
                        Sensor Measurement Range 0.20~3.5m
                        TX Power 16dBm
                        Chipset SX1276
                        Certification TELEC
                        Cable length NA
                        This is a preview of the recently viewed products by the user.
                        Once the user has seen at least one product this snippet will be visible.

                        Recently viewed Products


                        R718X is a wireless device that detects distance by the ultrasonic ranging sensor. R718X also equips an NTC temperature sensor and will send alarm messages while detecting abnormal temperature; it also equips with a three-axis digital accelerometer sensor and would send out a warning while detecting tilt, and the warning would be sent based on LoRa communication protocol.

                        Features

                        • Apply SX1276 wireless communication module
                        • 2 sections ER14505 3.6V Lithium AA battery
                        • Tilt angle detection
                        • Temperature detection
                        • Distance detection
                        • The base is attached with a magnet that can be attached to a ferromagnetic material object
                        • Protection level: Main body IP65
                        • Compatible with LoRaWANTM Class A
                        • Frequency hopping spread spectrum technology
                        • Configuration parameters can be configured through third-party software platforms, data can be read and alarms can be set via SMS text and email (optional)
                        • Available third-party platform: Actility / ThingPark, TTN, MyDevices/Cayenne
                        • Low power consumption and long battery life
                        Electric:

                        Power Supply

                        2xER14505 lithium batteries (3.6 V, 2400 mAh/section) in parallel

                        Standby Current

                        < 70 uA

                        Wake-up Current

                        7.11mA (Typical value)
                        Wakeup current range 0.8mA-20 mA
                        * When not transmitting /receiving LoRa data)

                        Low battery Alarm

                        3.2V

                        Distance of Detection

                        0.20~3.5m

                        Distance Accuracy

                        S±0.12m

                        Blind Zone

                        0~0.20m

                        Detecting Range of NTC

                        -40℃ to 55℃ ±3℃


                        Frequency:

                        Frequency Range

                        863MHz-928MHz 470MHz-510MHz

                        TX Power

                        US915 20dbm；
                        AS923 16dbm；
                        AU915 20dbm；
                        CN470 19.15dbm；
                        EU868 16dbm；
                        KR920 14dbm；
                        IN865 20dbm；

                        Receiving Sensitivity

                        -136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
                        -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

                        Antenna Type

                        Built-in antenna

                        Communication Distance

                        Up to 10 km
                        (visible linear obstacle-free transmission distance, actual transmission distance depends on the environment )

                        Data Transfer Rate

                        LoRa: 0.3kbps～50kbps
                        FSK: 1.2kbps～300kbps

                        Modulation

                        LoRa/FSK (Note: You can choose one of them)

                        Supportable LoRaWAN Band

                        EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
                        IN865-867,CN470-510

                        (Note: The frequency band is optional and needs to be configured before shipment)


                        Physical:

                        Dimension

                        L:112mm*W:65mm*H:32mm

                        Body Weight

                        About 143 g

                        Ambient Temperature Range

                        -20°C to 55°C

                        Ambient Humidity Range

                        <90% RH (no condense)

                        Storage Temperature Range

                        -40 °C ~ 85 °C
