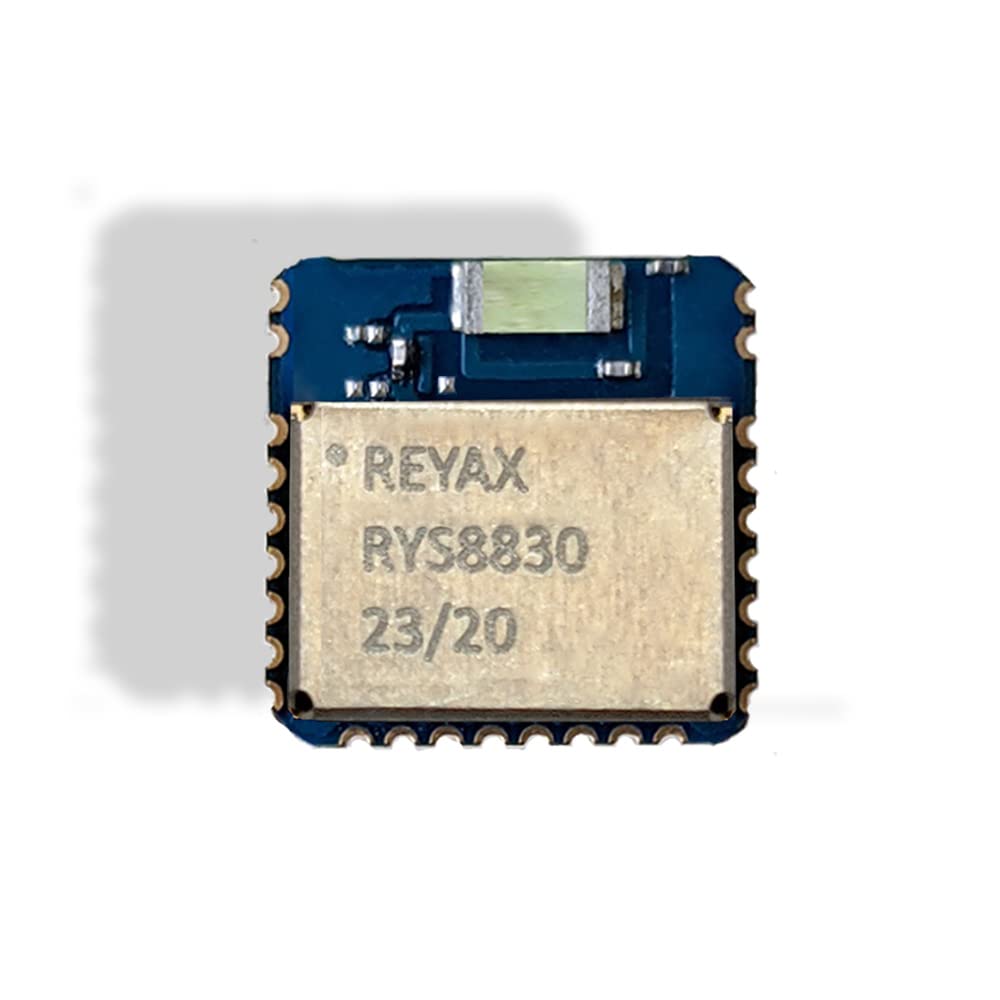

Ultra Low Power 1.8V GNSS with Antenna Module

The REYAX RYS8830 is built on the high performance of the SONY CXD5605GF CXD5605AGF GNSS engine. The RYS8830 modules utilize concurrent reception of GNSS systems offering high sensitivity in a small SMD form factor.

    SG$ 22.91 SG$ 22.91 22.9082 SGD

    US$ 18.00

    SG$ 12.73

    This combination does not exist.

    Lead Time : 4.0 weeks

    Add to Cart Get Best Price

    The REYAX RYS8830 is built on the high performance of the SONY CXD5605GF CXD5605AGF GNSS engine.
    The RYS8830 modules utilize concurrent reception of GNSS systems offering high sensitivity in a small SMD form factor.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Reyax

    Established in 2008, REYAX Technology Co., Ltd is a total solutions provider of high quality modules, engineering designs and supply chain services to electronics manufacturers. Our products contain the  MQTT IoT Cloud Platform/Bluetooth/Wi-fi/GPS/Lora/NB-IoT modules that can be applied in fields of industrial electronics, security monitoring or Internet of Things.


    More Detail

    Overview

    REYAX’s RYWB116_Lite DIP module provides a comprehensive multi-protocol wireless solution including 802.11 b/g/n, dual-mode Bluetooth 5.


    Feature

    • Compliant to single-spatial stream IEEE 802.11 b/g/n, Bluetooth 5.

    • Co-existence of multiple wireless protocols managed by an internal protocol arbitration manager.

    • Ultra-low power consumption with multiple power modes to reduce the system energy consumption.

    • Leading edge RF performance providing long range and higher throughputs.

    • Support for 20 / 40 MHz channel bandwidths.

    • Transmit power up to +21dBm with integrated PA.

    • Wi-Fi receive sensitivity as low as -98.5 dBm.

    • BT receive sensitivity as low as -95 dBm.

    • Support for Client mode, Access point mode, Wi-Fi Direct and enterprise security.

    • Support for concurrent Wi-Fi, Bluetooth 5.

    • 8.9 mA transmit current in BT 5 mode, 2 Mbps data rate

    • Operating temperature: -40°C to +85°C

    Applications

    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    ItemMin.TypicalMax.UnitCondition
    Power Supply Voltage1.711.81.89VVDD
    0.91.81.95VVDD_LDO_IN
    GNSS continuous mode
    Satellite acquisition Current19mA
    Satellite tracking Current13mA
    Idle Current3.7mAWaiting for command
    Sleep2 mode current200uA
    Satellite acquisition Current11.5mAUse buck regulator
    Satellite tracking Current8.2mAUse buck regulator
    Idle Current3.3mAUse buck regulator
    Sleep0 mode current0.5mAUse buck regulator
    Sleep1 mode current0.26mAUse buck regulator
    Sleep2 mode current0.26mAUse buck regulator
    GNSS low power mode
    Satellite tracking average
    current    		2.68.2mAUse buck regulator
    @GSOP command
    Sleep1 and normal mode cycle
    I2C slaveI2C clock : 400kHz

    Address length : 7 bits

    Slave address : 0x24

    Default Baud Rate 115200bps8,N,1
    Digital input level high0.7*VDDVDD+0.3VVIH
    Digital input level low-0.30.3*VDDVVIL
    Digital output level high0.8*VDDVDDVVOH 2mA
    Digital output level low00.2*VDDVVOL 2mA
    Flash size8M-bit
    GNSS Center Frequency1561.098

    1575.42

    1602.5625

    		MHzBeiDou

    GPS

    Glonass

    Navigation update rate1Hz
    Accuracy1MSignal strength is -130dBm
    Cold starts35Sec.Signal strength is -130dBm
    Hot starts1Sec.
    Tracking Sensitivity-161dBm
    Hot starts Sensitivity-160dBm
    Cold starts Sensitivity-147dBm
    Operating Temperature-4025+85˚C
    Dimensions11mm*11mm*2.2mm
    Weight0.43g
