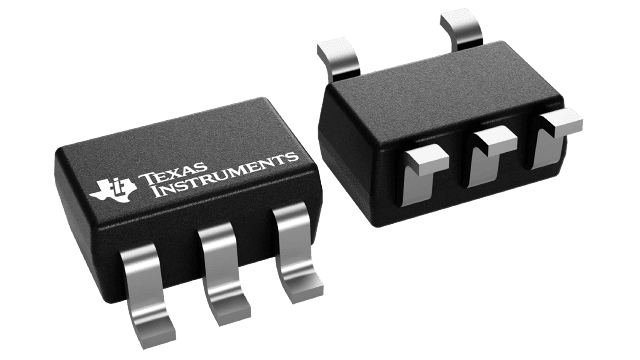

Single 1.65-V to 5.5-V buffer with open-drain outputs

This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation.

    SG$ 1.27 SG$ 1.27 1.2727000000000002 SGD

    US$ 1.00

    SG$ 6.50

    This combination does not exist.

    Lead Time : 1.0 weeks

    Add to Cart Get Best Price

    This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    Description for the SN74LVC1G07

    This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation.

    The output of the SN74LVC1G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA.

    The SN74LVC1G07 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.


    Features for the SN74LVC1G07

    • Available in the Ultra Small 0.64-mm2 Package (DPW) With 0.5-mm Pitch
    • Supports 5-V VCC Operation
    • Input and Open-Drain Output Accept Voltages up to 5.5 V
    • Can Translate Up or Down
    • Max tpd of 4.2 ns at 3.3 V
    • Low Power Consumption, 10-µA Max ICC
    • ±24-mA Output Drive at 3.3 V
    • Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
    • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
    • ESD Protection Exceeds JESD 22
      • 2000-V Human-Body Model (A114-A)
      • 200-V Machine Model (A115-A)
      • 1000-V Charged-Device Model (C101)
