Manufacturing Company :
Bivocom

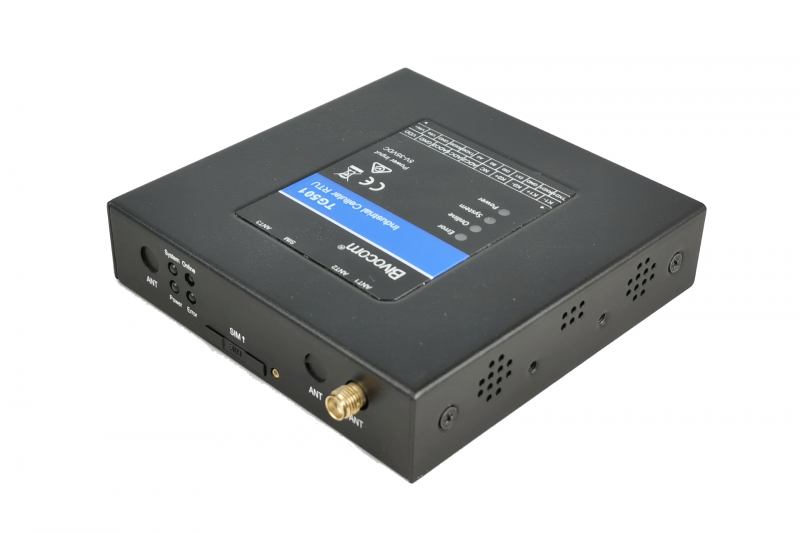

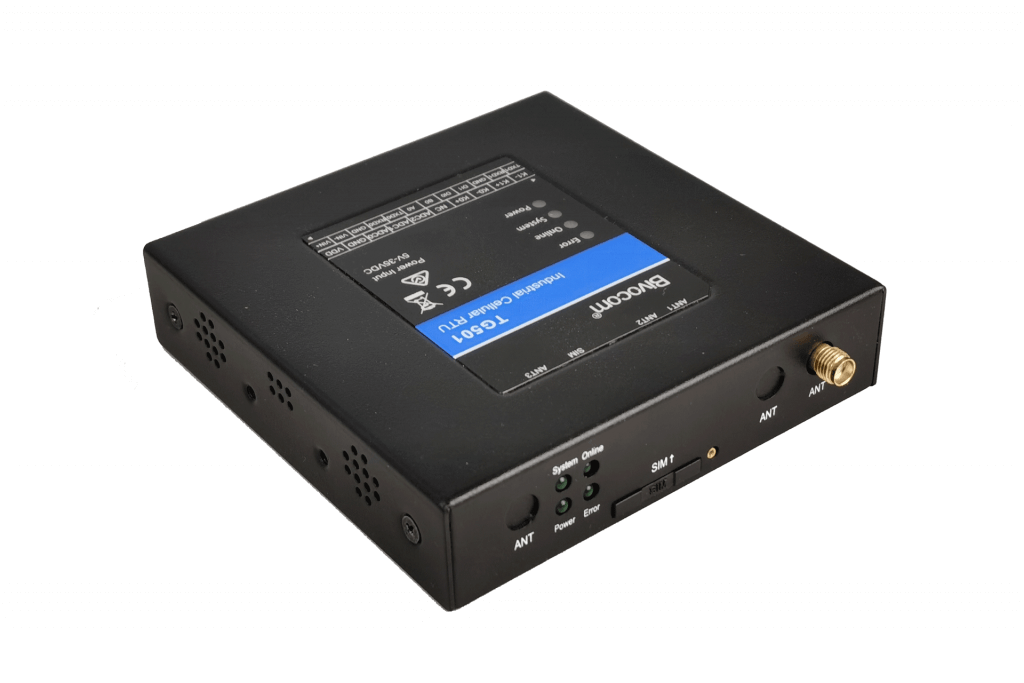

TG501 mini Cellular RTU
Industrial LTE-M/NB-IoT RTU, 2-RS232, 1- RS485, 3-ADC(4-20mA, or 0-5V Option), 2-DI, 2-Relay, 1-Power output
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Specifications for TG501 mini Cellular RTU
| Cellular | LTE or NB-IoT/LTE-M |
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Bivocom TG451 is an industrial IoT gateway designed for applications like water pump station, power substation, vehicle WIFI, traffic light that requires collecting and sending types of data from different sensors and controllers to remote location over cellular network at a high speed data rate.
The dual SIM and dual module mode*, as well as LTE CAT 6* allows users to transfer the big data at wider bandwidth and faster speed.
The rich interface enabled feature allows users to connect serial port, Ethernet port, digital input, Bluetooth sensors and controllers, and relay output to control the status of external field device.
TG451 industrial iot gateway has customized firmware for bus/taxi intelligent marketing wifi system, which it’s a great solution for display of video ads on the passenger mobile devices, helping the bus/taxi companies increase their customer satisfaction, meanwhile, earning money from selling advertisement.
| Item | TG451 |
|---|---|
| Cellular Interfaces | |
| Antenna Connector SIM Slot | 2 × 50 Ω SMA Female 1, or 2 (For DSDM or DSSM) |
| Ethernet Interface | |
| Ports Data Rate | 5-RJ45 (1-WAN, 4-LAN or 5-LAN) 10/100 Mbps (Auto-Sensing), Auto MDI/MDIX |
| Serial Interface | |
| Ports | 1-RS232 + 1-RS485 |
| Wi-Fi | |
| Antenna Connector Standard Transmission Rate | 1 × 50 Ω SMA Male IEEE 802.11b/g/n IEEE802.11b/g: Up to 54Mbps IEEE802.11n: Up to 300Mbps |
| External Storage | |
| USB Port SD (Optional) Usage | 1 x USB 2.0 1 x Micro SD interface, Up to 32G User Program, Data Storage and Firmware Upgrade |
| I/O | |
| DI DO | 2-DI (0-30V Input) 2-Relay (Up to 5A and 30VDC/250VAC output) |
| GPS (Optional) | |
| Module Antenna Connector | Built-in independent GPS module 1 × 50 Ω SMA Female |
| Power Supply | |
| Standard Power Input Voltage | DC 12V/1.5A 5-35 VDC |
| Software | |
Network Protocols Serial Port VPN Tunnel | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, VLAN, SSH MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP) IPsec/PPTP/L2TP/GRE/OpenVPN |
| Physical | |
| Ingress Protection Housing & Weight Dimensions Mounting | IP30 Metal, 790 g(1.74lbs) 145 x 114 x 45mm (5.71 x 4.49 x 1.77in) Desktop, DIN-Rail |
| Environmental | |
| Operating Temperature | -35°C to +75°C (-31℉ to +167℉) |
| Others | |
Reset Button LED Indicators Approvals Warranty Period | 1 POWER, WiFi, SYSTEM, ALARM,ONLINE, Signal Strength CE, RCM, NBTC, FCC*(*Under Progress) Standard: 12 Months Extended: 2-5 Years*(Please refer to warranty policy) |
