698-2700 MHz 3G/4G-LTE - N Female - No Ground Plane

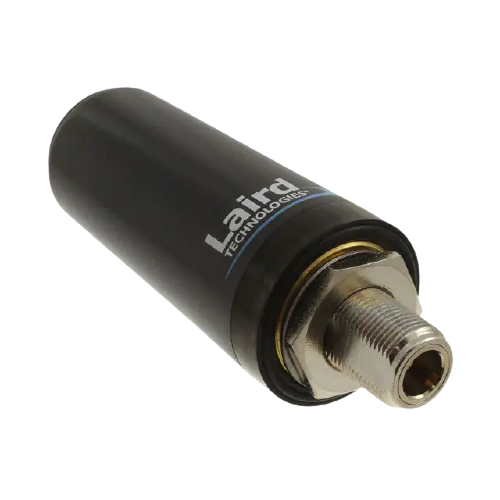

This unit is a Black 'Phantom' style Omni-directional antenna with N-Female-permanent 5/8 Inch mount operating at 698-2700 MHz range. This antenna offers a powerful punch with up to 3 dBi of gain. Please note that this model DOES NOT REQUIRE mounting on metallic ground plane for best performance. The Phantom series offers ultra-rugged ABS construction which is virtually indestructible, and has a proven track record for holding up in the field for many years in any conditions. Cable kits and mounting hardware for this antenna can be purchased separately. Equivalent to PCTEL part# BMLPVMBLTENGP-VP.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
| SKU | TRA6927M3PBN001 |
|---|---|
| Manufacturer Part Number | TRA6927M3PBN-001 |
| Manufacturer | Arcadian - ArcAntenna.com |
| Antenna Category | 3G/4G/LTE (698-2700 MHz) |
| Working Frequency | 698-960 MHz |
| Gain | 0 dBi |
| Working Frequency 2 | 1710-1990 MHz |
| Gain 2 | 1.7 dbi |
| Working Frequency 3 | 2100-2700 MHz |
| Gain 3 | 2.9 dBi |
| Antenna Style | Phantom Low Profile |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 100 Watts |
| Height/Length (inches) | 3.3 Inches |
| Height/Length (mm) | 83.8 mm |
| Width (inches) | 1.44 |
| Width (mm) | 36.6 |
| Weight (lbs) | 0.38 |
| Weight (grams) | 172.7 |
| Operating Temp (celsius) | (-40 C) to 85 C |
| Mount Style | N-Female-permanent 5/8 Inch mount |
| Color | Black |
| Connector Type | Connector - Bottom |
| Connector 1 | N-Female |
| Includes | Or-Ring, Star Washer, Hex Nut |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
