  2. Phantom Omni Antenna- 410-430 MHz - N Female - Ground Plane
SGD Pricelist
Manufacturing Company :

Phantom Omni Antenna- 410-430 MHz - N Female - Ground Plane

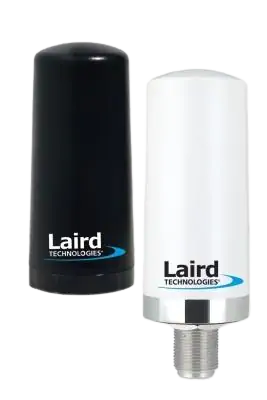

This unit is a Black 'Phantom' style Omni-directional antenna with N-Female-permanent 5/8 Inch mount operating at 410-430 MHz range. This antenna offers a powerful punch with up to 3 dBi of gain. Please note that this model REQUIRES mounting on metallic ground plane for best performance. The Phantom series offers ultra-rugged ABS construction which is virtually indestructible, and has a proven track record for holding up in the field for many years in any conditions. Cable kits and mounting hardware for this antenna can be purchased separately.

    SG$ 110.72 SG$ 110.72 110.7232 SGD

    US$ 87.00

    SG$ 109.45

    This combination does not exist.

    Add to Cart Get Best Price

    This unit is a Black 'Phantom' style Omni-directional antenna with N-Female-permanent 5/8 Inch mount operating at 410-430 MHz range. This antenna offers a powerful punch with up to 3 dBi of gain. Please note that this model REQUIRES mounting on metallic ground plane for best performance. The Phantom series offers ultra-rugged ABS construction which is virtually indestructible, and has a proven track record for holding up in the field for many years in any conditions. Cable kits and mounting hardware for this antenna can be purchased separately.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    SKUTRAB4103P
    Manufacturer Part NumberTRAB4103P
    ManufacturerLaird
    Antenna CategoryUHF (380-600 MHz)
    Working Frequency410-430 MHz
    Gain3 dBi
    Antenna StylePhantom Low Profile
    PolarityDual Polarity
    BandsSingle
    SISO or MIMOSISO
    Directional or OmniOmnidirectional
    Impedance50 ohms
    Max Input Power (W)150 Watts
    VSWR: < X: 1< 1.5:1 @10MHz <2.0:1 @ 20 MHz
    Horizontal/Azimuth Beamwidth360
    Vertical/Elevation Beamwidth146
    Height/Length (inches)3.5 Inches
    Height/Length (mm)88.9 mm
    Width (inches)1.44
    Width (mm)36.5
    Thickness/Diameter (inches)1.438
    Weight (lbs)0.35
    Weight (grams)159.1
    MaterialABS
    Operating Temp (celsius)(-40 C) to 85 C
    Mount StyleN-Female-permanent 5/8 Inch mount
    ColorBlack
    Connector TypeConnector - Bottom
    Connector 1N-Female
    IncludesOr-Ring, Star Washer, Hex Nut
    OK for Outdoor UseYes
    VehicularYes
    Ground Plane RequiredYes
    Product ConditionNew
