Manufacturing Company :
TE Connectivity

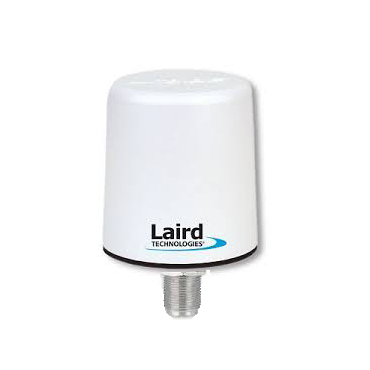

Phantom Omni Antenna- 150-168Mhz - N Female - Ground Plane Reqd VHF Low Profile Antenna
This unit is a White 'Phantom' / Stealth VHF style Omni-directional antenna with N-Female-permanent 5/8 Inch mount operating at 150-168Mhz range. This antenna offers a powerful punch with up to 3 dBi of gain. Please note that this model REQUIRES mounting on metallic ground plane for best performance. The Phantom series offers ultra-rugged ABS construction which is virtually indestructible, and has a proven track record for holding up in the field for many years in any conditions. Cable kits and mounting hardware for this antenna can be purchased separately.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
| SKU | TRAT1500P |
|---|---|
| Manufacturer Part Number | TRAT1500P |
| Manufacturer | Laird |
| Antenna Category | VHF (132-220 MHz) |
| Working Frequency | 150-168Mhz |
| Gain | Unity |
| Antenna Style | Phantom Low Profile |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 60 Watts |
| Horizontal/Azimuth Beamwidth | 360 |
| Height/Length (inches) | 3.3 Inches |
| Height/Length (mm) | 83.8 mm |
| Width (inches) | 3.25 |
| Width (mm) | 82.6 |
| Weight (lbs) | 0.35 |
| Weight (grams) | 159.1 |
| Operating Temp (celsius) | (-40 C) to 85 C |
| Mount Style | N-Female-permanent 5/8 Inch mount |
| Color | White |
| Connector Type | Connector - Bottom |
| Connector 1 | N-Female |
| Includes | Or-Ring, Star Washer, Hex Nut |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
