Manufacturing Company :

4G Router with 1WAN & 4LAN & 1RS232

4G Router with 1WAN & 4LAN & 1RS232

  • SIM Slot
  • Wi-Fi Compliance
  • Ethernet Ports
  • Operation Temperature range

SG$ 320.39

This combination does not exist.

Lead Time : 2.0 weeks

Add to Cart Get Best Price

4G Router with 1WAN & 4LAN & 1RS232


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

USR-IoT


USR IOT provides industrial routers, serial to Ethernet converters and other products and related IOT applications in healthcare, providing reliable data transmission for various medical equipment. Realize remote monitoring of medical equipment through iot healthcare solutions.


FIND OUT MORE

Overview

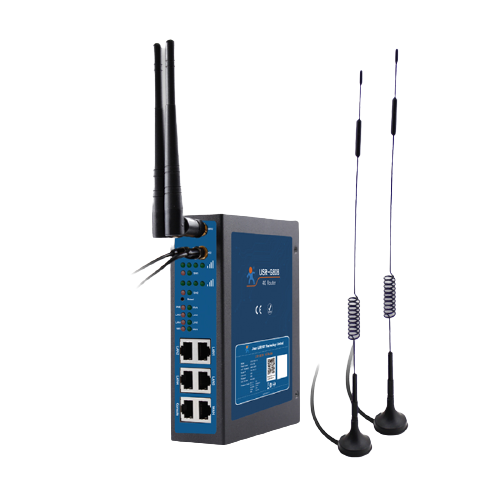

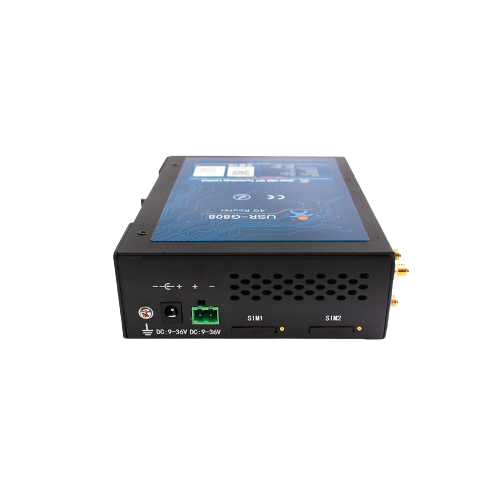

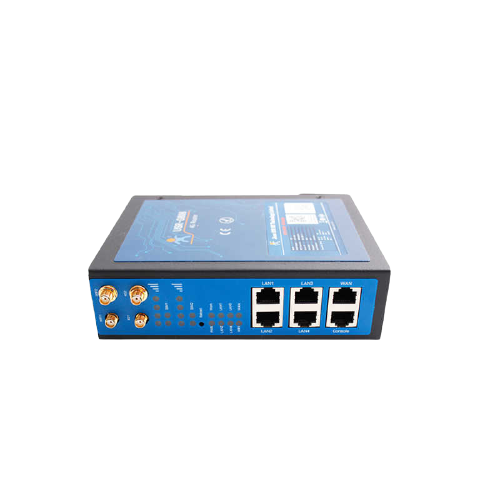

USR-G808 is a dual SIM LTE router for the field network accessories. Dual SIM cards provide an auto fail-over for higher stability and convenience.  The router is easy to install in the field because it supports kinds of rail/mounting. This product provides serval protocols for customers, such as TCP UDP and HTTP.

Features

● Industrial 4G LTE Router, secure wireless routing for industrial remote access

● Providing reliable, seamless connectivity for M2M & IoT applications

● Supports PPTP L2TP IPSEC OPENVPN GRE

● Supports 5 10/100Base-T(X) self-adaptive Ethernet interface

● Hardware watchdog, rugged metal casing and Din-Rail mounting

● Supports 802.11 b/g/n WLAN

● DIN-Rail Installing

Applications

Specifications for 4G Router with 1WAN & 4LAN & 1RS232

Cellular
SIM Slot Single SIM Card
Wireless
Wi-Fi Compliance IEEE 802.11b/g/n
Network
Ethernet Ports 4 x 10/100Mbps
Uncategorized
Operation Temperature range -20℃~ +70℃
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


USR-G808 is a dual SIM LTE router for field network accessories. Dual SIM cards provide a auto fail-over for higher stability and convenience. The router is easy to install in the field because it supports kinds of rail/mounting. This product provides serval protocols for customers, such as TCP UDP and HTTP.

Frequency Band
Operation Band
        Network Type
Asia
Europe
Australia

4G
FDD-LTE
1/3
1/3/5/7/8/20
TDD-LTE
38/39/40/41
38/40/41
3G
WCDMA/HSPA/UMTS
1/8
1/8
2G
GPRS/GSM/EDGE
3/8
3/8
Feature
WAN port
LAN port
WAN * 1
LAN * 4
Both LAN port and WAN port with a rate of 10/100Mbps,Auto MDI/MDIX
WIFI Network
Support 802.11b/g/n
Antenna
WIFI antenna *2
SIM/USIM Card
Standard 6 pin SIM card, 3V/1.8V SIM card
Antenna
3/4G full-frequency antenna * 1
Working Voltage
DC9~36V
Working Current
Average: 391mA; Max: 578mA (DC12V)
TDD-LTE
download rate of 130 Mbps; Upload rate of 35 Mbps
FDD-LTE
download rate of 150 Mbps; Upload rate of 50 Mbps
WCDMA
download rate of 42 Mbps; upload rate of 5.76 Mbps
TD-SCDMA
download rate of 4.2 Mbps; upload rate of 2.2 Mbps
CDMA2000 1x/EVDO
download rate of 3.1 Mbps; upload rate of 1.8 Mbps
GSM/GPRS/EDGE
download rate of 236.8 kbps; upload rate of 236.8 kbps
Typical Application

Power Industry


1. Dual card mode can automatically switch the strongest signal
2. Keep abreast of the power situation, to monitor the power grid information.
3. Fully monitor the database of important accounts, to ensure data system security status.

Smart Parking Lot


1. Field network monitoring, security and safety.
2. To provide parking inquiries, booking services.
3. Dual-mode dual-card work mode, stable and no downtime, anti-dropped

Smart Environmental


1. To conduct rel-time monitoring of dispersed pollution discharge points.
2. Special area can use VPN private network transmission, to ensure security.
3. To achieve the unified management of sewage units or individuals, and improve work efficiency.
