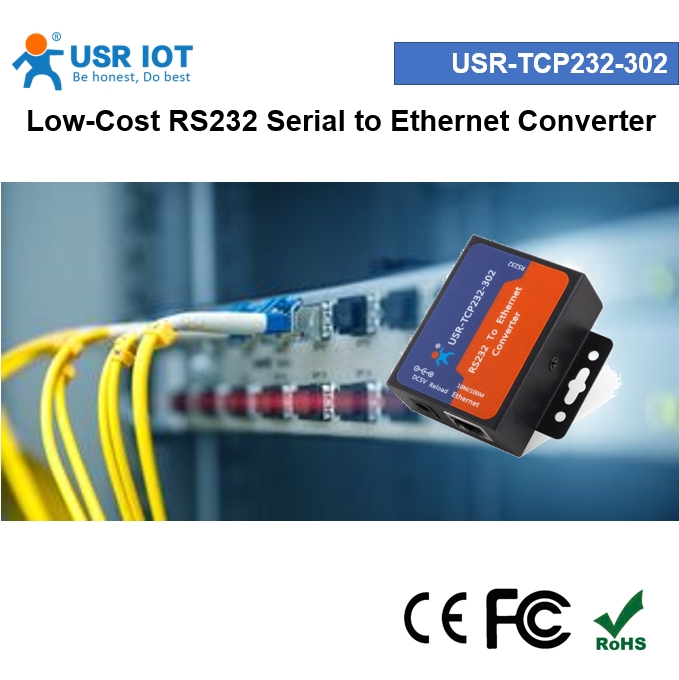

RS232 Port Serial Device Server

1 port RS232 to Ethernet converters USR-TCP232-302 can transmit data transparently between TCP/IP and RS232. RS232 to IP Converters USR-TCP232-302 are widespread required in industrial automation. Simple configuration and easy to use.

    SG$ 32.17

    This combination does not exist.

    Lead Time : 2.0 weeks

    Add to Cart Get Best Price

    1 port RS232 to Ethernet converters USR-TCP232-302 can transmit data transparently between TCP/IP and RS232. RS232 to IP Converters USR-TCP232-302 are widespread required in industrial automation. Simple configuration and easy to use.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    USR-IoT


    USR IOT provides industrial routers, serial to Ethernet converters and other products and related IOT applications in healthcare, providing reliable data transmission for various medical equipment. Realize remote monitoring of medical equipment through IoT Healthcare Solutions.


    FIND OUT MORE

    Overview


    1 port RS232 to Ethernet converters USR-TCP232-302 can transmit data transparently between TCP/IP and RS232. RS232 to IP Converters USR-TCP232-302 are widespread required in industrial automation. Simple configuration and easy to use.

    Features

    ● Single RS232 to Ethernet converters
    ● Cost-effective
    ● RS232 port
    ● Power supply: DC 4.75-7V
    ● Compact, Light Weight
    ● Supports TCP server/client, UDP server/client
    ● Virtual COM

    Applications

    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    1 port RS232 to Ethernet converters USR-TCP232-302 can transmit data transparently between TCP/IP and RS232. RS232 to IP Converters USR-TCP232-302 are widespread required in industrial automation. Simple configuration and easy to use.

    ● Single RS232 to Ethernet converters
    ● Cost-effective
    ● RS232 port
    ● Power supply: DC 4.75-7V
    ● Compact, Light Weight
    ● Supports TCP server/client, UDP server/client
    ● Virtual COM

    System Information

    Processor

    TI Cortex-M0

    Ethernet

    Port Number

    1

    Interface Standard

    RJ45

    Rate

    10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection

    Protection

    2KV electromagnetism isolation, shell insulation blocking

    Network Protocol

    IP、TCP/UDP、ARP、ICMP、IPV4、HTTP

    Buffer

    Send: 6K bytes, receive: 4K bytes

    Serial Port

    Port Number

    1

    Interface Standard

    RS-232: DB9 female port

    Data Bits

    5, 6, 7, 8

    Stop Bit

    1, 2

    Check Bit

    None, Even, Odd, Space, Mark

    Baud Rate

    600 bps ~ 230.4 Kbps

    Flow Control

    Null

    Buffer

    Receive: 800 bytes

    Software

    Virtual Serial（USR-VCOM）

    Windows 2000 or higher (32 bit/64 bit)

    Configuration

    Computer set-up software, serial command, built-in webpage

    Basic Parameter

    Size

    71 x 60 x 25 mm

    Operating Temp.

    -25 ~ 75°C

    Storage Temp.

    -40 ~ 105°C, 5 ~ 95% RH

    Input Voltage

    DC 4.75 ~ 7V

    Working Current

    150mA @ 5V

    Power

    <1W

    More

    Warranty

    2 years
