UV Digital Sensor Probe with RS485 interface
LS129 UV intensity online monitor is a smart digital probe of small size. It is suitable for various measurement occasions that need to monitor UV power and energy in real time. With standard RS485 communication interface and MODBUS communication protocol.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Specifications for UV Digital Sensor Probe with RS485 interface
| UV light Type | UVA or UVLED or UVC |
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
LS129 UV intensity online monitor is a smart digital probe of small size. It is suitable for various measurement occasions that need to monitor UV power and energy in real time. With standard RS485 communication interface and MODBUS communication protocol. The detector and controller adopt a split design, which can be directly connected to a computer, PLC and human-machine interface for communication to achieve real-time data collection and monitoring.
LS129 Ultraviolet Digital Probe Parameters

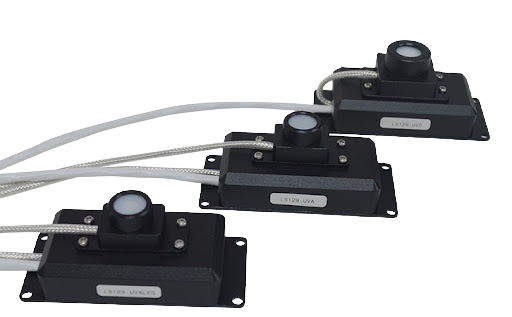

| Probe Model | LS129-UVALED | LS129-UVA | LS129-UVC |
|---|---|---|---|
| Spectral response | 340nm-420nm, calibrated at 395nm | 315nm-400nm, λp =365nm | 230nm-280nm, λp =254nm |
| Power measurement range | 0-20000mW/cm2 | 0-2000mW/cm2 | 0-20000μW/cm2 |
| Energy measurement range | 0 - 4 × 109 mJ/cm2 | 0 - 4 × 109 μJ/cm2 | |
| Resolution | 1mW/cm2 | 0.1mW/cm2 | 1μW/cm2 |
| Measurement accuracy | ±10 % | ||
| Sampling speed | 2048times/s | ||
| Data fresh cycle | 200ms | ||
| Test light hole diameter | ￠10mm | ||
| Communication line length | 1m, resistant to high temperature of 200℃ | ||
| Detector line length | 0.5m, resistant to high temperature of 200℃ | Integrated | |
| Communication interface | RS485 | ||
| Communication protocol | MODBUS | ||
| Supply voltage | DC 5V-24V | ||
| Operation temperature | -25℃- 85℃ (Humidity less than 85%, no condensation) | ||
| Controller size | 72.5*32*15.1(mm) | ||
| Probe size | 35*15*14.5(mm) | 35*23*16.7(mm) | |
Ultraviolet Digital Probe Characteristics

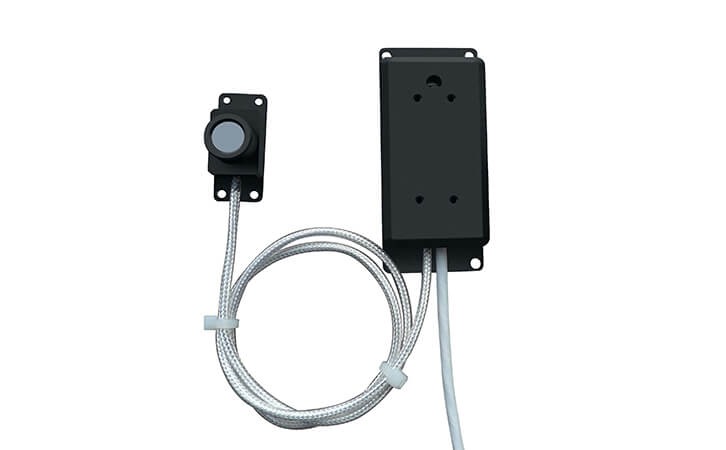

1. The LS129 UV digital probe has a very small size, and the detector and controller adopt a split design, which is very convenient for installation where measurement is needed. It is also possible to combine the detector and controller with screws for measurement.
2. It adopts standard RS485 communication interface and MODBUS communication protocol. This UV intensity meter is equipped with high temperature wire capable of withstanding temperature of 200 ℃, which can realize online monitoring in real time for a long time.
3．The probe is powered by a 5-24V ultra-wide DC power supply range, which is very convenient for use in different industries on spot.
4. Free computer debugging software for communication protocol debugging.
Communication Parameters
1. Station No
The LS129 smart digital probe supports the standard MODBUS protocol. The default communication address is "1". You can modify the probe communication address through the "Human Machine Debugging Tool" or the communication protocol. The address setting range is 1-247.
2. Baud rate
The default baud rate of the UV digital probe is 9600bps. The baud rate can be modified through the "Human Machine Debugging Tool" or communication protocol.
3. Protocol
Supports the standard MODBUS protocol. You can read the probe measurement data and set the communication address and baud rate through the communication protocol. For detailed communication commands, please refer to "LS129 Digital Probe Communication Protocol".

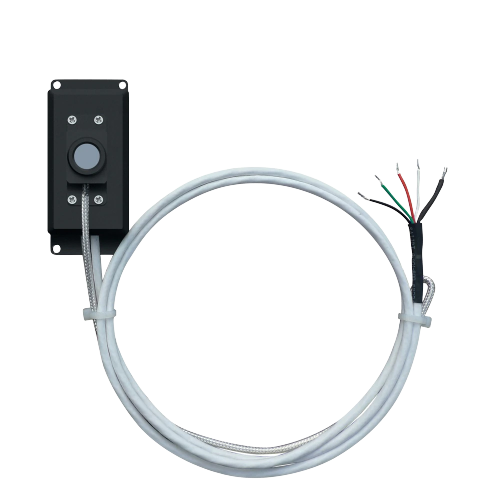

4. Probe wiring
| Wire color | Function |
|---|---|
| Black (with heat-shrinkabletube) | Shielded wire |
| Red | Positive power（DC 5-24V） |
| Black | Negative power |
| Green | RS485- |
| White | RS485+ |
Debugging tools
1. Human-machine interface for debugging (optional): It can be used to view the probe data and set the probe communication address and baud rate during debugging.
2. RS232 / RS485 converter (optional): Used for communication protocol debugging.
3．USB adapter (optional): used to read data from RS485 to USB connection computer
