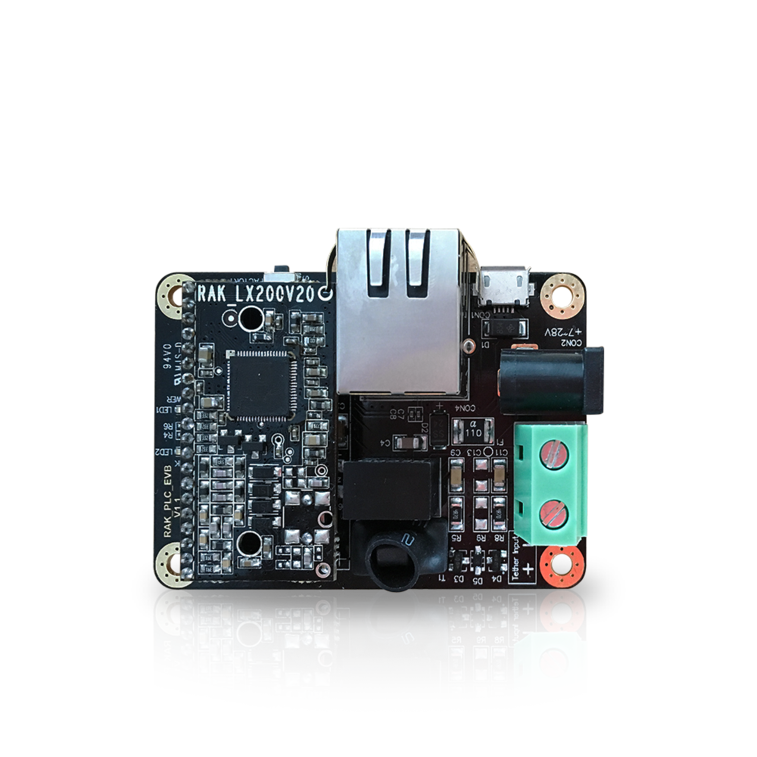

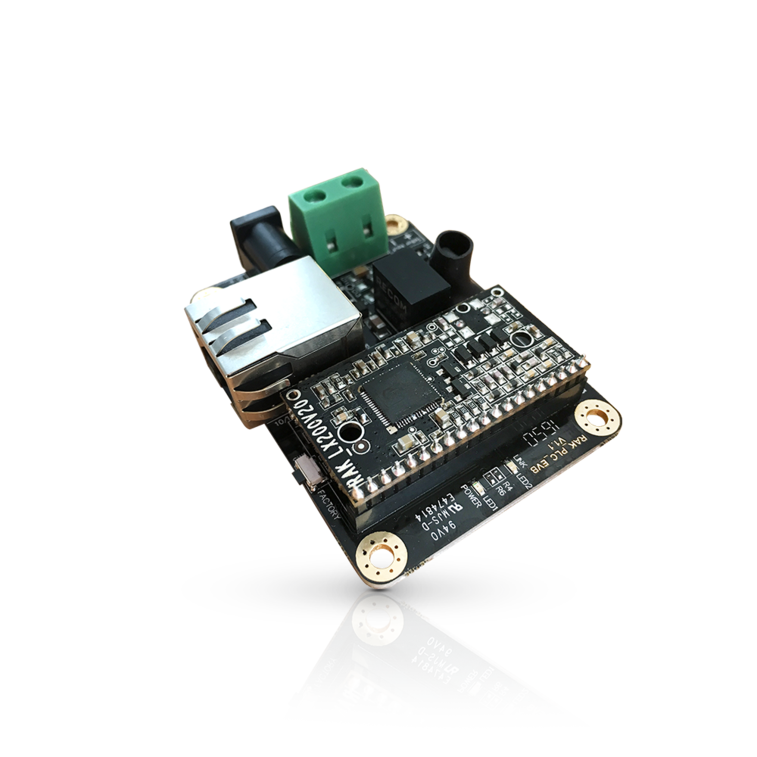

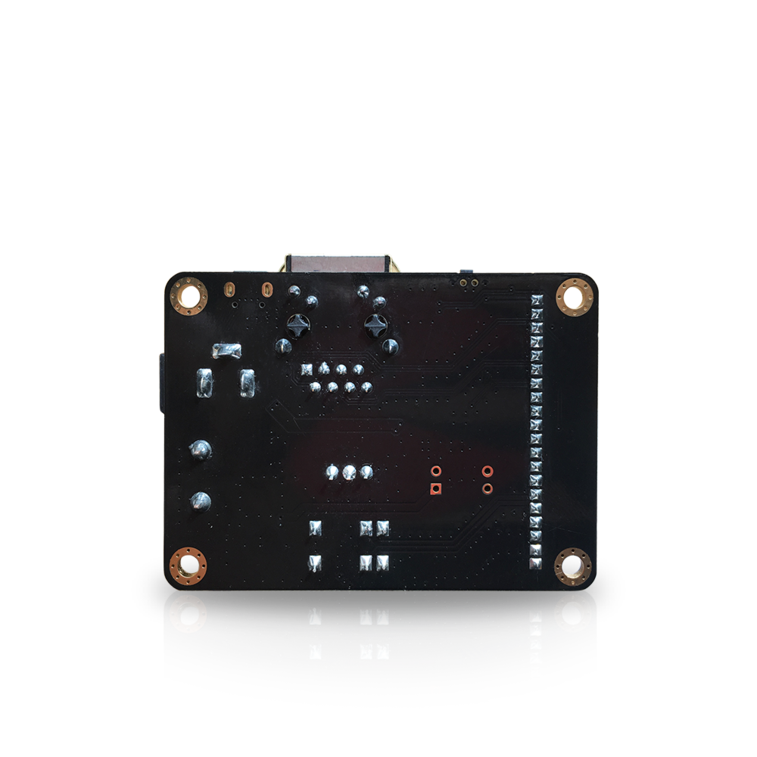

WisLink LX200V20 EVB
WisPLC Homeplug AV|Power line, twisted pair, Ethernet interface|200M Transmission rate|transmission of IPTV, HDTV signals
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Specifications for WisLink LX200V20 EVB
| PLC Region | US or AU or EU or UK |
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Product Description
WisLink LX200V20 EVB is a new type of based on OFDM (Orthogonal Frequency Division Multiplexing) modulation technology of data transmission products. Power line maximum transmission rate can reach 200 Mbps, provide standard Ethernet front-end ports, also support the twisted pair interface.
Support 128-bit AES encryption, takes up 2-30MHz band communication, the existing CATV cable radio signal or no effect. Without user configuration, wiring after the completion of the work. Faster time-to-market and flexibility of product function.
Key Features
- Medium (Supports multiple transmission medium)
- Power Line: Range up to 300 meters for IP access
- Twisted Pair: Range up to 600 meters for IP access
- Speed: maximum physical layer data rate is 200Mbps
- 128bit AES encryption
- IEEE 1901 and HomePlug AV standards compliance
- A maximum of 8 modules can interface with each other
- Modular design, easy to embedded and implement to any existing devices
Packaging
- Packaging Dimension: 145mm x 90mm x 90mm
- Package Weight: 0.275kg
RELATED PRODUCTS: Compare

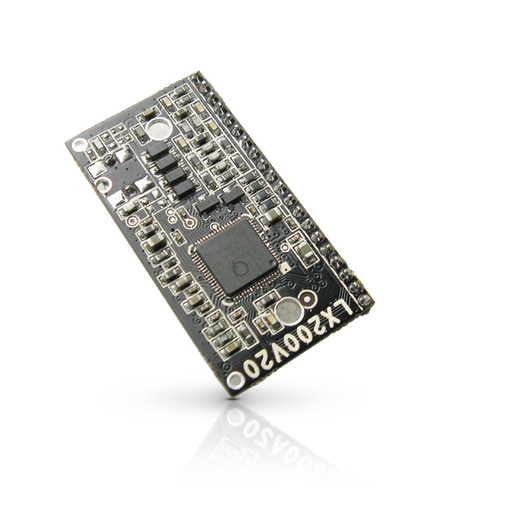

![[500003] WisLink LX200V20 Power line communication module](/web/image/product.template/44428/image_512/%5B500003%5D%20WisLink%20LX200V20%20Power%20line%20communication%20module?unique=539c3a4)
