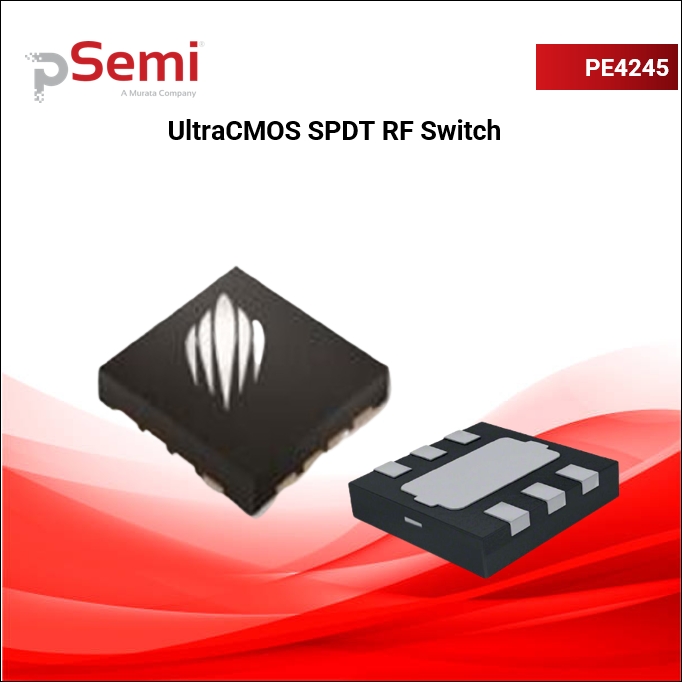

PE4245 SPDT low insertion loss RF switch

SPDT, Low IL, Reflective, 50Ω RF Switch

  • Frequency
  • RF Switch
  • IIP3 (dBm)
  • P1/0.1dB (dBm)
  • Package
  • Insertion Loss (dB)
  • Isolation (dB)

SG$ 2.16

This combination does not exist.

Lead Time : 22.0 weeks

Add to Cart Get Best Price

SPDT, Low IL, Reflective, 50Ω RF Switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

pSemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare. From headquarters in San Diego and offices around the world, pSemi’s team explores new ways to make electronics for the connected world smaller, thinner, faster and better.


FIND OUT MORE

Overview

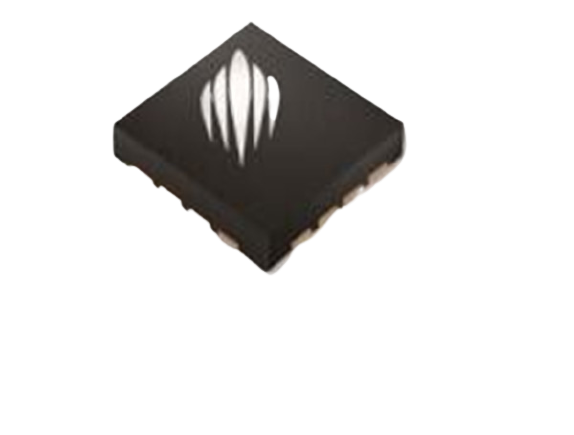

The PE4245 RF Switch is designed to cover a broad range of applications from near DC to 4000 MHz. This switch integrates onboard CMOS control logic with a low voltage CMOS compatible control input. Using a 3V nominal power supply, a 1 dB compression point of +27 dBm can be achieved. The PE4245 also exhibits excellent isolation of better than 42 dB at 1000 MHz and is offered in a small 3 × 3 mm DFN package.

Features

      Single 3.0 V Power Supply
      Low insertion loss
      High isolation
      Typical 1 dB compression of +27 dBm
      Single-pin CMOS logic control

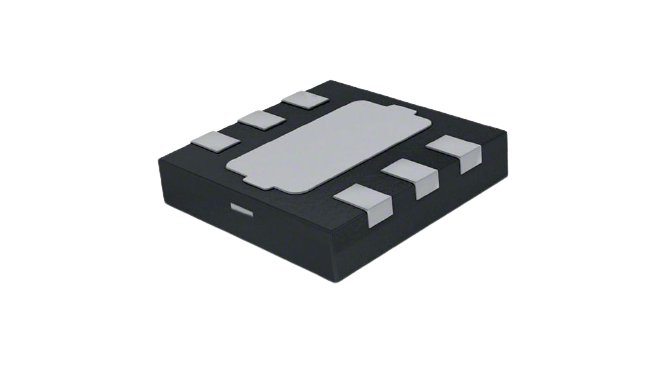

      Packaging: 6-lead 3 × 3 DFN

Specifications for PE4245 SPDT low insertion loss RF switch

Antenna
Frequency DC~4000MHz
RF Radio
RF Switch SPDT
IIP3 (dBm) 45
P1/0.1dB (dBm) 27.0/-
Uncategorized
Package 6L DFN
Insertion Loss (dB) 0.6~0.7
Isolation (dB) 32~42
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


The PE4245 RF Switch is designed to cover a broad range of applications from near DC to 4000 MHz. This switch integrates onboard CMOS control logic with a low voltage CMOS compatible control input. Using a 3V nominal power supply, a 1 dB compression point of +27 dBm can be achieved. The PE4245 also exhibits excellent isolation of better than 42 dB at 1000 MHz and is offered in a small 3 × 3 mm DFN package.

Key Features

      Single 3.0 V Power Supply
      Low insertion loss
      High isolation
      Typical 1 dB compression of +27 dBm
      Single-pin CMOS logic control
      Packaging: 6-lead 3 × 3 DFN


Specifications

DescriptionSPDT (R)
Min Freq.DC
Max Freq.4000 MHz
Max Typ. IL (dB)0.70
Min Typ. IL (dB)0.60
Max Typ. Iso (dB)42
Min Typ. Iso (dB)32
P1/0.1dB (dBm)27.0/-
IIP3 (dBm)45
Package6L DFN
Package (mm)3x3
