PE4259 SPDT High Power UltraCMOS® 10 MHz–3.0 GHz RF Switch

SPDT, Low IL, Reflective, 50Ω RF Switch

    SG$ 0.88

    This combination does not exist.

    Lead Time : 51.0 weeks

    Add to Cart Get Best Price

    SPDT, Low IL, Reflective, 50Ω RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

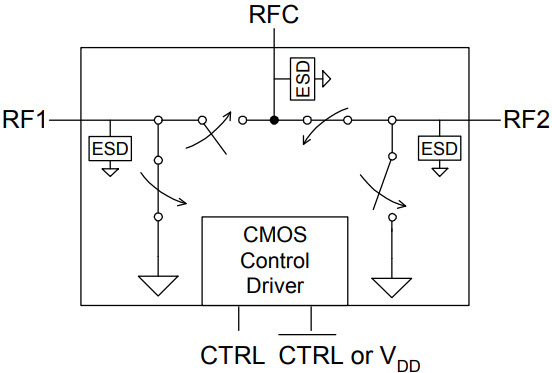

    The PE4259 UltraCMOS® RF switch is designed to cover a broad range of applications from 10 MHz through 3000 MHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and can be controlled using either single-pin or complementary control inputs. Using a nominal 3V power supply voltage, a typical input 1 dB compression point of +33.5 dBm can be achieved

    Features

        Single-pin or complementary CMOS logic control inputs
        Low insertion loss
        Isolation of 30 dB @ 1000 MHz
        High ESD tolerance of 2 kV HBM
        Typical input 1 dB compression point of +33.5 dBm
        1.8V minimum power supply voltage

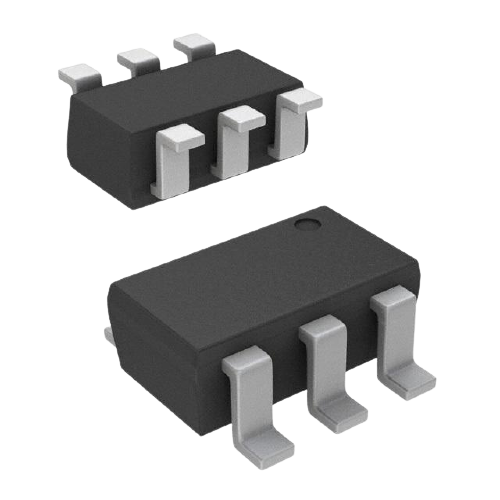

        Packaging: Ultra-small 6-lead SC-70
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE4259 UltraCMOS® RF switch is designed to cover a broad range of applications from 10 MHz through 3000 MHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface, and can be controlled using either single-pin or complementary control inputs. Using a nominal 3V power supply voltage, a typical input 1 dB compression point of +33.5 dBm can be achieved.

    Key Features

        Single-pin or complementary CMOS logic control inputs
        Low insertion loss
        Isolation of 30 dB @ 1000 MHz
        High ESD tolerance of 2 kV HBM
        Typical input 1 dB compression point of +33.5 dBm
        1.8V minimum power supply voltage
        Packaging: Ultra-small 6-lead SC-70


    Specifications

    DescriptionSPDT (R)
    Min Freq.10 MHz
    Max Freq.3000 MHz
    Max Typ. IL (dB)0.50
    Min Typ. IL (dB)0.35
    Max Typ. Iso (dB)30
    Min Typ. Iso (dB)20
    P1/0.1dB (dBm)30.5/-
    IIP3 (dBm)55
    Package6L SC-70
    Package (mm)1x2
