WisLink Cellular mPCIe

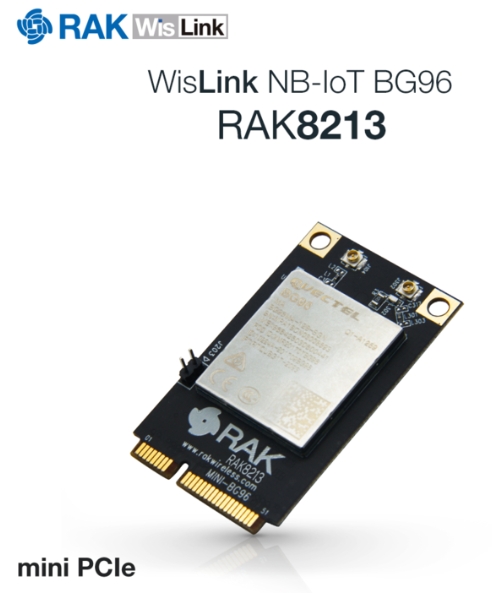

RAK8213 BG96 based mPCIe cellular IoT module GNSS+NB-IoT USB2.0 CatM1&NB1 and EGPRS, Pin compatible with EC21 Mini PCIe dongle

    SG$ 52.76

    This combination does not exist.

    Lead Time : 2.0 weeks

    Add to Cart Get Best Price

    RAK8213 BG96 based mPCIe cellular IoT module GNSS+NB-IoT USB2.0 CatM1&NB1 and EGPRS, Pin compatible with EC21 Mini PCIe dongle

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Rakwireless

    RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.

    Do something

    Overview

    The RAK8213 is a LTE Cat M1/Cat NB1 module based on the Quectel BG96 with a standard PCI Express MiniCard form factor (Mini PCIe). Supports EGPRS network at the same time, can offer the highest data rate of 300kbps down-link and 375kbps up-link.

    Features

    • LTE Cat. M1/Cat.NB1/EGPRS module with Mini PCIe form factor, optimized for M2M and IoT applications.

    • Ultra-low power consumption.

    • USB Drivers and support 2.0 high speed interface.

    • Quectel Enhanced AT commands.

    • Feature refinements: supports DFOTA, VoLTE.

    • Easy migration from Quectel GSM/GPRS, UMTS/HSPA and LTE modules.

    • Robust mounting and interfaces

    • Pin compatible with EC21 Mini PCIe dongle

    • PCM interface available for VOLTE

    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    Product Description

    WisLink Cellular mPCIe (RAK8213) is a multi-band LTE Cat M1/Cat NB1/EGPRS module based on the Quectel BG96 with a standard PCI Express® form factor (Mini PCIe). It offers a maximum data rate of 375Kbps downlink and 375Kbps uplink.

    RAK8213€™s built-in GNSS module can support GPS, GLONASS, BeiDou/Compass, Galileo, QZSS, integrated GNSS greatly simplifies product design and provides faster, more accurate, and more reliable positioning.

    Rich Internet protocol, industry-standard interfaces (USB/UART/I2C/Status indicators) and rich features (applicable to Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux drivers for Linux and Android) Modules that extend applicability are suitable for a wide range of M2M applications such as wireless POS, smart metering, and tracking.

    Product Applications

    • M2M and IoT applications
    • Tracker application

    Key Features

    • LTE Cat. M1/Cat.NB1/EGPRS module with Mini PCIe form factor, optimized for M2M and IoT applications.
    • Ultra-low power consumption.
    • USB Drivers and support 2.0 high-speed interface.
    • Quectel Enhanced AT commands.
    • Feature refinements: supports DFOTA, VoLTE.
    • Easy migration from Quectel GSM/GPRS, UMTS/HSPA, and LTE modules.
    • Robust mounting and interfaces
    • PCM interface available for VOLTE

    Product Details

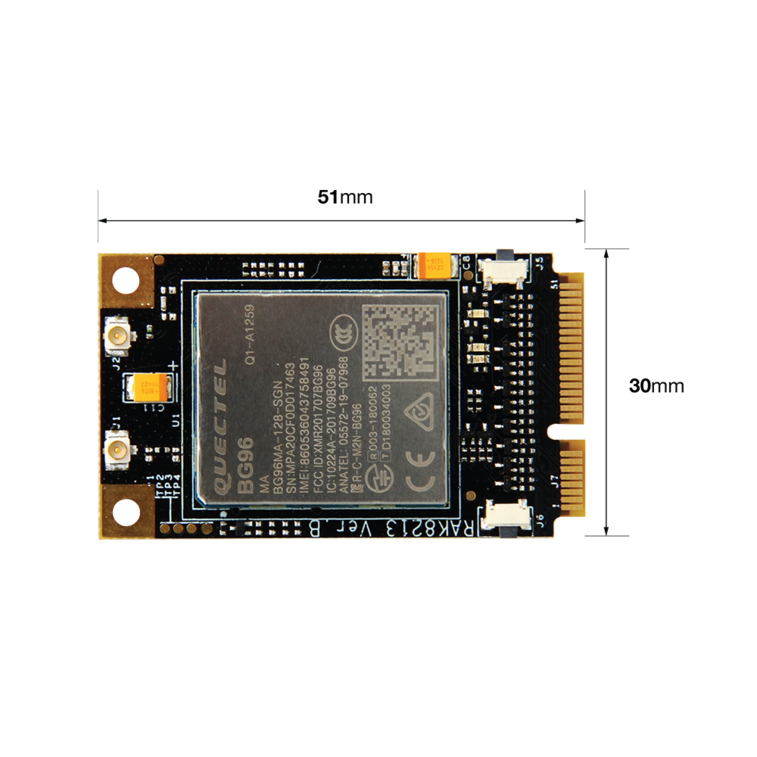

    • Product Dimensions: 51mm x 30mm x 4.9mm (± 0.2mm)
    • Product Weight: 8.9g

    Package Inclusions

    • 1x WisLink Cellular mPCIe (RAK8213) module
    • 1x  iPEX LTE Antenna
    • 1x iPEX GPS Antenna
