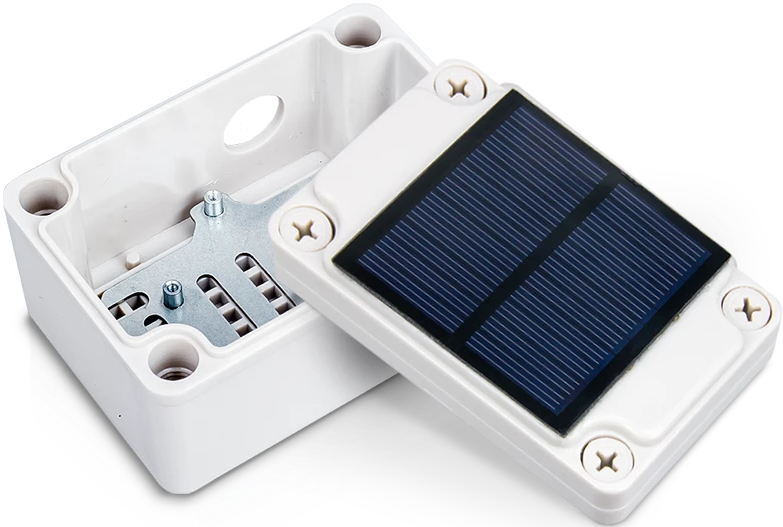

RAKBox-B2 Enclosure with Solar Panel

RAKBox-B2 Enclosure with Solar Panel is rated IP67 for outdoor Industrial IoT Application matching WisBlock form factor board.

    SG$ 37.02

    This combination does not exist.

    Lead Time : 2.0 weeks

    Add to Cart Get Best Price

    RAKBox-B2 Enclosure with Solar Panel is rated IP67 for outdoor Industrial IoT Application matching WisBlock form factor board.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Rakwireless

    RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.



    FIND OUT MORE
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    Product Description

    Made up of lightweight plastic, this enclosure is small, solid, and perfect for setups where space is limited. It is rated IP67/NEMA-6, making it completely protected from dust ingress and submersible up to 1m in water.

    Complete documentation of this product can be found on our website documentation page.

    Board Support

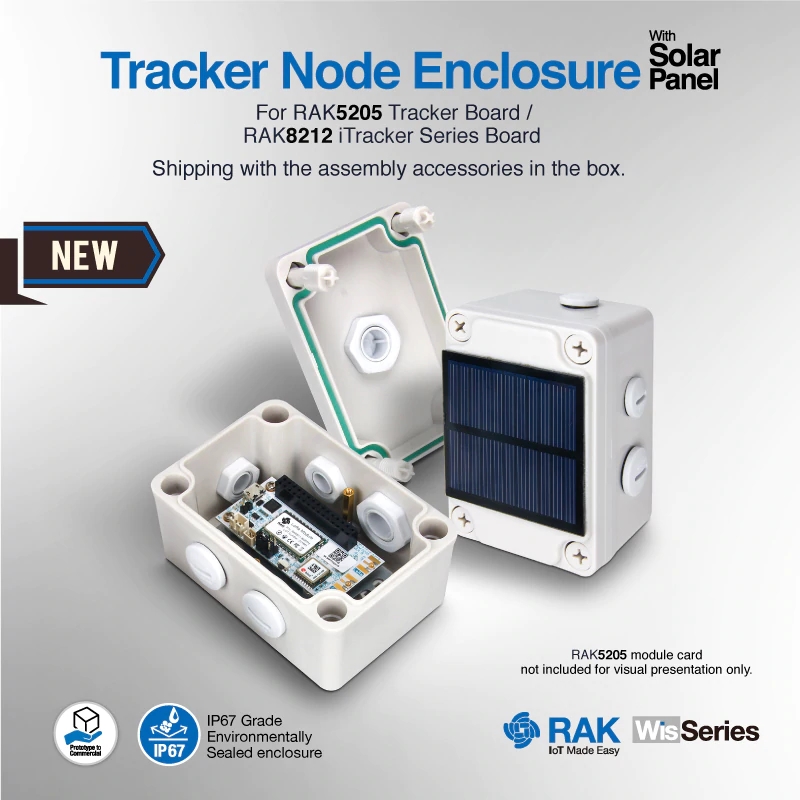

    • 96Boards form factor board (e.g. RAK5205)
    • iTracker form factor board (e.g. RAK8212)

    Key Features

    • IP67 / NEMA-6 ingress protection.
    • Applicable for pole and wall mounting. The diameter of the pole it can be attached to is between 60mm and 75mm.
    • Customizable: We can customize it for you by printing your logo on it, or painting the enclosure in a different color.
    • 1 x 16mm ports supporting N-type connectors / circular connector GX16
    • Solar Panel Specifications:
      • Panel Dimensions: 60mm x 60mm x 2mm
      • Voltage at nominal power: 5V (±10%)
      • Current at nominal power: 80mA (±5%)
      • Cell efficiency: 17.5%
      • Working Environment:
        • Temperature:-20-65ºC
        • Humidity: 45-95%
        • UV resistance
      • The ZH1.5-2P connector
        • Red cable is for positive pole
        • Black cable is for negative pole

    Packaging

    • Enclosure Weight: 0.5kg
    • Enclosure Dimensions: 150mm x 90mm x 90mm
    • Inclusions:
      • 1pc Sensor Enclosure
      • 1sets Port Plugs

    Optional Accessories

    • Supporting plate kits for 96Boards form factor board
    • Supporting plate kits for iTracker form factor board
    • Mounting Kit for Wall Mounting or Pole Mounting
