Ag1170 Ringing SLIC with DC-DC converter

The world’s first +3.3V only ringing SLIC. Also available as a +5V version, Ag1170 has a built in DC-DC converter to generate all of the tricky telecom and ringing voltages on board – all from a single +3.3V (or +5V) supply. Ag1170 is available in SIL or DIL formats, ideal for VoiP applications.

  • Output Voltage
  • Impedance
  • PSTN Package

SG$ 13.22

This combination does not exist.

Lead Time : 20.0 weeks

Add to Cart Get Best Price

The world’s first +3.3V only ringing SLIC. Also available as a +5V version, Ag1170 has a built in DC-DC converter to generate all of the tricky telecom and ringing voltages on board – all from a single +3.3V (or +5V) supply. Ag1170 is available in SIL or DIL formats, ideal for VoiP applications.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

Overview

The world’s first +3.3V only ringing SLIC. Also available as a +5V version, Ag1170 has a built-in DC-DC converter to generate all of the tricky telecom and ringing voltages onboard – all from a single +3.3V (or +5V) supply. Ag1170 is available in SIL or DIL formats, ideal for VoiP applications.

Features

  • 600R and Programmable impedance options

  • Very small SIL and DIL package options

  • Very Simple integration

  • On-board ringing generator

  • Integral high-efficiency DC/DC converter, providing:

  • Ringing voltage and Loop current

  • Single supply voltage (3.3v or 5v option)

  • Tip/Ring polarity reversal

  • Simplified protection

Specifications for Ag1170 Ringing SLIC with DC-DC converter

Output Voltage 3.3V or 5V
Impedance 600Ω or Programmable
PSTN Package SIL or DIL
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products

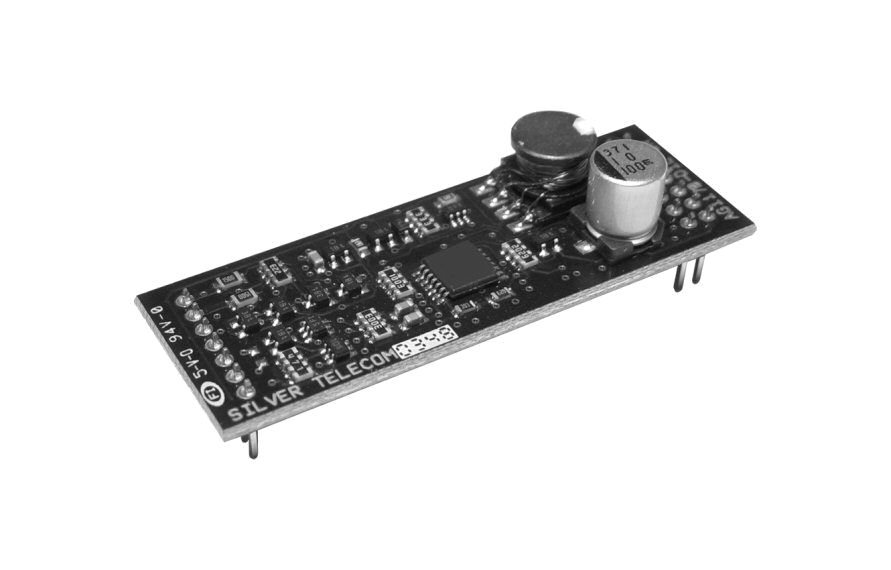

The Silvertel Ag1170 is a single Subscriber Line Interface Circuit (SLIC) in a 14 pin single inline (SIL) or 21 pins dual inline (DIL) format. The combination of features and packaging offers extremely efficient use of board area, saving significant system size and cost, minimizing time to the market for Telephony Systems developers. The Ag1170 has been designed to work with loop lengths of typically 3.0km (800Ω including telephone). Its performance to regulatory standards (G712) allows use in public and private network applications. The Ag1170 has an integral dc/dc converter and ringing generation thus providing all the line powering requirements from a single supply. The SLIC requires a minimum of external components. The system interface has been designed for direct connection to popular codecs, for both audio and signaling The Ag1170 is ideal for low line count, short loop length applications, such as ISDN Terminal Adaptors, Internet Telephony (VoIP), Computer Telephony Integration (CTI), Wireless Local Loops (WLL) and Small Office Home Office (SOHO).


Features

  • A highly featured low-power SLIC in a 14 pin SIL or 21 pin DIL format.

  • Integral high-efficiency DC/DC converter. Single +5V or +3.3V supply voltage.

  • Highly integrated with an onboard ringing generator.

  • Tip/Ring polarity reversal. On-Hook Transmission for caller line ID.

  • Line and balance impedance programmable with external components (on Ag1170-P version)

  • Easy to use, with a minimum number of external components.

  • Simplified protection in “on-premise” applications.

  • Silvertel “design-in” assistance.
