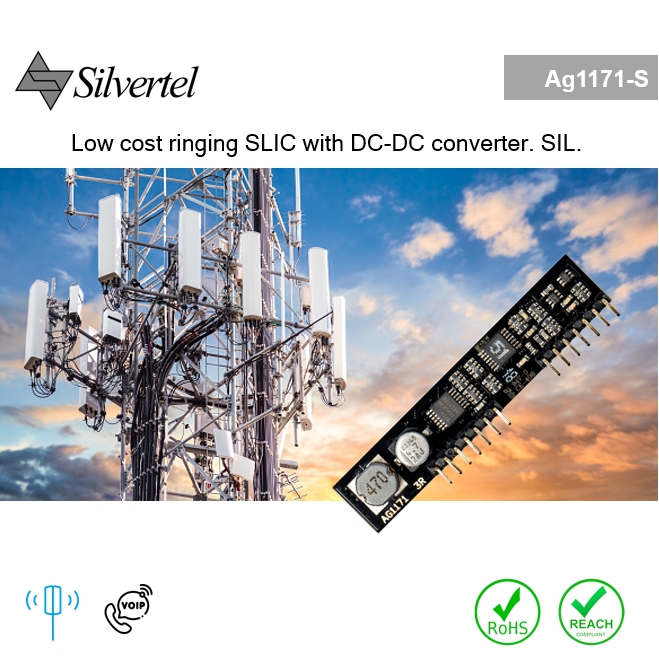

AG1171-S Low Cost Ringing SLIC with DC-DC Converter. SIL.

Ag1171 is a low cost single channel SLIC with a fully integrated DC-DC converter to generate all necessary battery and ringing voltages. The module only requires a single supply from +3.3V to +5V. Ag1171 is suitable for low line count, short loop applications, such as Wireless Local Loop Terminals (WLL), Fixed Cellular Terminals (FCT), Fixed Wireless Terminals (FWT) and Internet Telephony (VoIP).

    SG$ 10.18

    This combination does not exist.

    Lead Time : 20.0 weeks

    Add to Cart Get Best Price

    Ag1171 is a low cost single channel SLIC with a fully integrated DC-DC converter to generate all necessary battery and ringing voltages. The module only requires a single supply from +3.3V to +5V. Ag1171 is suitable for low line count, short loop applications, such as Wireless Local Loop Terminals (WLL), Fixed Cellular Terminals (FCT), Fixed Wireless Terminals (FWT) and Internet Telephony (VoIP).

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Silvertel

    Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality.


    FIND OUT MORE


    Overview

    Ag1171 is a low-cost single-channel SLIC with a fully integrated DC-DC converter to generate all necessary battery and ringing voltages. The module only requires a single supply from +3.3V to +5V. Ag1171 is suitable for low line count, short loop applications, such as Wireless Local Loop Terminals (WLL), Fixed Cellular Terminals (FCT), Fixed Wireless Terminals (FWT) and Internet Telephony (VoIP).


    Features

    • Low Cost

    • Very Simple integration

    • Small size - SIL package

    • 600R impedance

    • On-board ringing generator

    • Integral high-efficiency DC/DC converter, providing:

    • Ringing voltage and Loop current

    • +5V to +3.3V supply voltage

    • Tip/Ring polarity reversal

    • Simplified protection

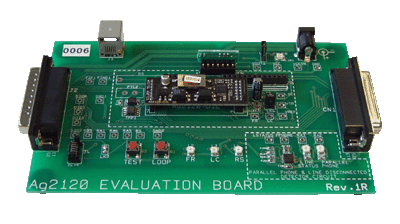

    Evaluation Kit

    This evaluation board is suitable for use with all variants of the Ag1170 and Ag1171. It can be used on its own or it can be connected to another Ag117x evaluation board or to an Ag2120 evaluation board.

    Applicaitons

    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The Silvertel Ag1171 is a single Subscriber Line Interface Circuit (SLIC) in a 14 pin single in line (SIL) format. The combination of features and packaging offers extremely efficient use of board area, saving significant system size and cost, minimising time to market for Telephony Systems developers.

    The Ag1171 has been designed to work with loop lengths of typically 1.0km (470R including telephone).

    The Ag1171 has integral dc/dc converter and ringing generation thus providing all the line powering requirements from a single supply. The Ag1171 requires a minimum of external components, making it ideal for low line count, short loop length applications, such as WLL Terminal (WLL), Fixed Cellular Terminals (FCT), Fixed Wireless Terminals (FWT) and Internet Telephony (VoIP).
