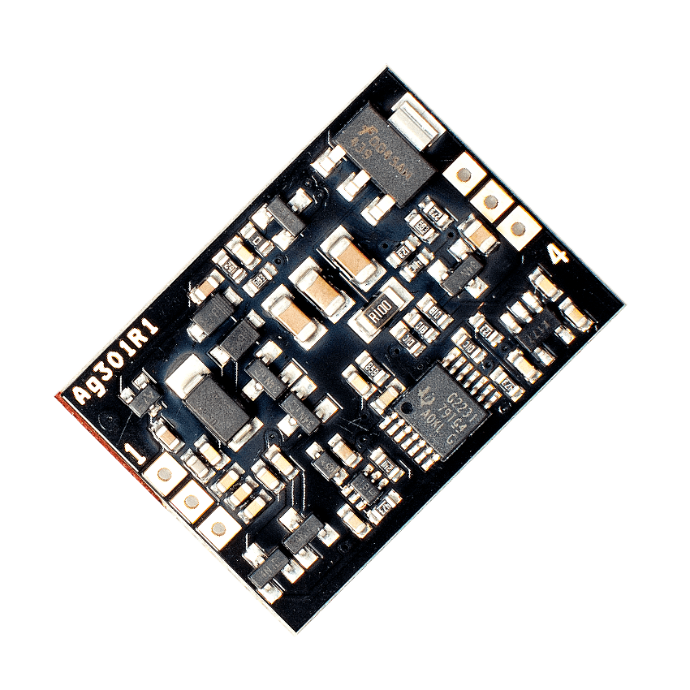

Ag301 5W, Qi-Compatible Wireless Receiver Module

a wireless charging receiver module; designed to work with the Ag311 or any other Qi compliant wireless power transmitter

This product is no longer available.

a wireless charging receiver module; designed to work with the Ag311 or any other Qi compliant wireless power transmitter

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

Overview


Silvertels’ Ag300 series are a range of wireless power modules designed for Qi compliance. They are aimed at Wireless Power applications, and would typically be used for wireless charging. Wireless power transfer products can be quickly designed by the simple addition of a compliant coil. Ag301 shown here is the wireless power receiver module, aiding the effortless, fast design of Qi compliant wireless charging products.


Features

  • Compact, low profile Qi-compatible power receiver module

  • Module size: 31mm x 23mm

  • Up to 5 Watts Output Power

  • Automatic Qi-compatible transmitter verification

  • Overload and short-circuit protection

  • Low standby power consumption

  • Only a receiver coil required

This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Description

The Ag301 is a wireless charging receiver module; designed to work with the Ag311 or any other Qi compliant wireless power transmitter, typically used in wireless charging applications. With the increased use of mobile & portable devices, the Ag301 & Ag311 wireless power modules offer a wide range of benefits: - There are no cables to get tangled and you don’t have the problem of having different plugs or sockets for various devices. There is no risk of electrical shock, as there are no exposed metal parts. Can be used in explosive environments as there are no contacts to cause sparks. This means that there is no contact degradation due to friction, corrosion or abrasion. The units can be completely sealed for use in harsh environments, as their operation is not affected by dirt, dust, water or chemicals and can even be used underwater. Can be used in a medical environment where disinfecting and sterilization is required.
