  2. Ag312 5W, Qi-Compatible Wireless Transmitter Module
SGD Pricelist
Manufacturing Company :

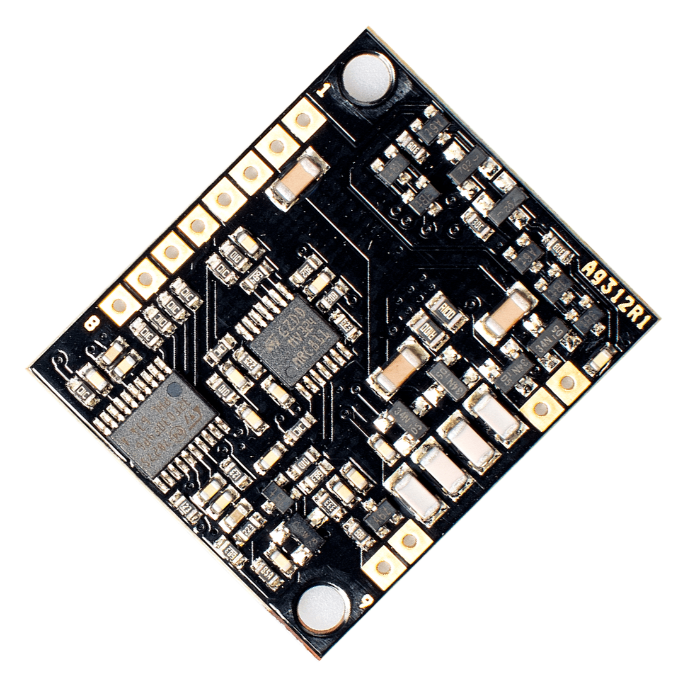

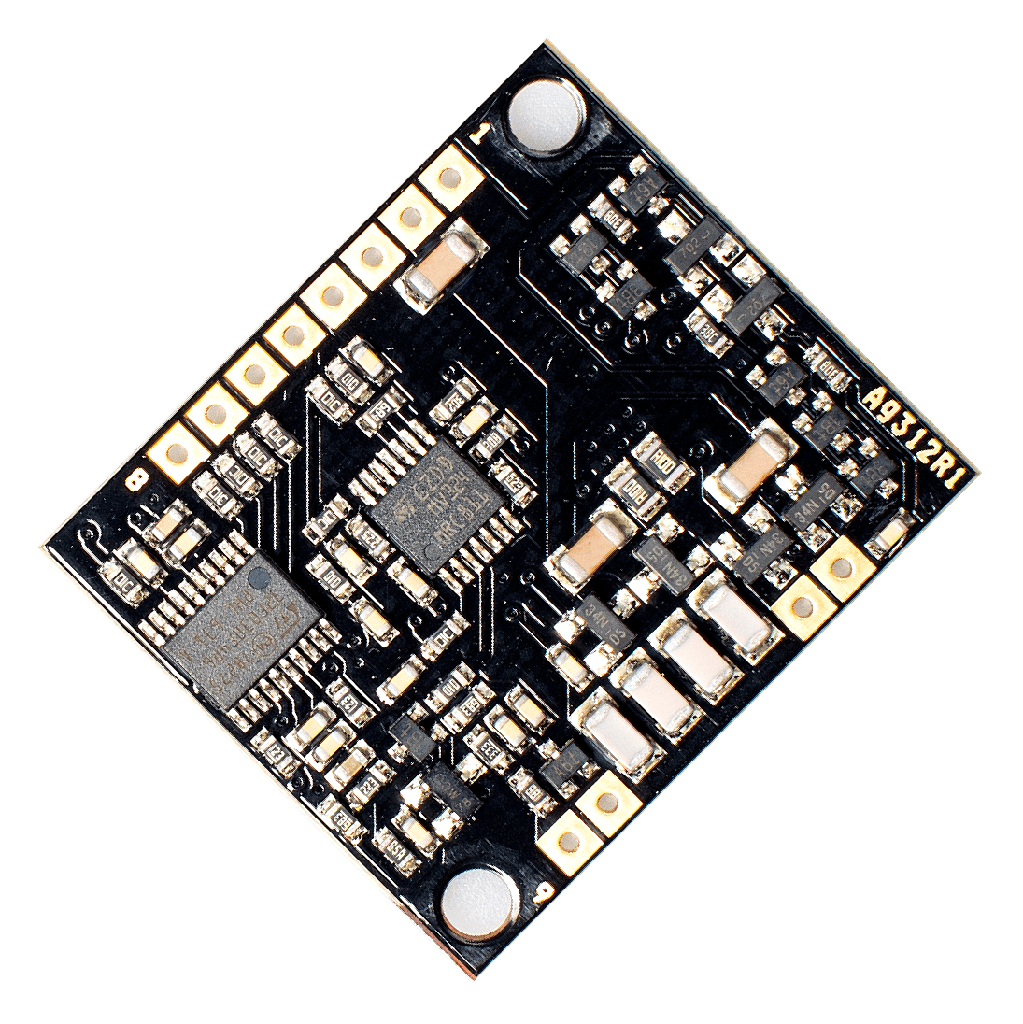

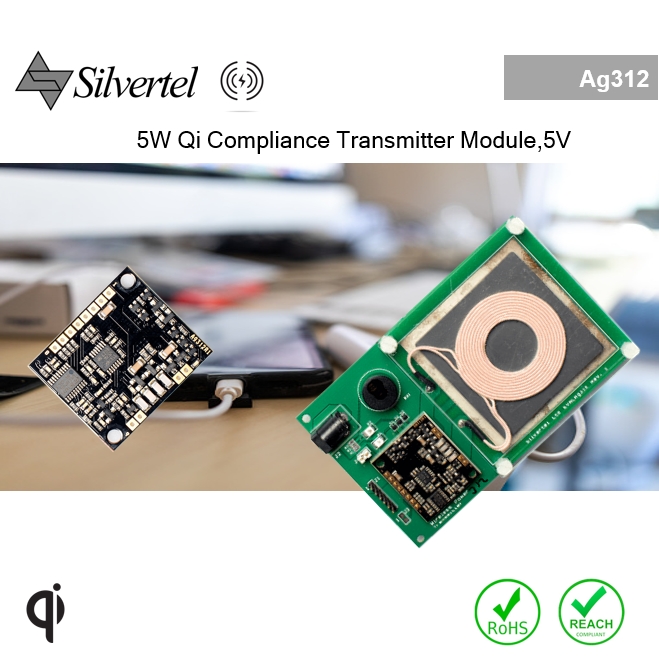

Ag312 5W, Qi-Compatible Wireless Transmitter Module

The Ag312 is a 5V DC input wireless power transmitter (A5/A11) module; designed to work with the Ag301 or any other Qi compliant wireless power receiver,

This product is no longer available.

The Ag312 is a 5V DC input wireless power transmitter (A5/A11) module; designed to work with the Ag301 or any other Qi compliant wireless power receiver,

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

Overview


The Ag312 is a 5V DC input wireless power transmitter (A5/A11) module; designed to work with the Ag301 or any other Qi compliant wireless power receiver, typically used in wireless charging applications.


Features

  • Compact, low profile Qi-compatible power transmitter module

  • Module size: 33mm x 29mm

  • Input Voltage 5V DC

  • Up to 5 Watts Output Power from receiver

  • Automatic Qi-compatible receiver & foreign object detection

  • Overload and short-circuit protection

  • Low standby power consumption

  • Only a transmitter coil required

Specifications for Ag312 5W, Qi-Compatible Wireless Transmitter Module

Role Transmitter Module
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Description

The Ag312 is a wireless power transmitter (A5 / A11) module; designed to work with the Ag301 or any other Qi compliant wireless power receiver, typically used in wireless charging applications. With the increased use of mobile & portable devices, the Ag301 & Ag312 wireless power modules offer a wide range of benefits: - There are no cables to get tangled and you don’t have the problem of having different plugs or sockets for various devices. There is no risk of electrical shock, as there are no exposed metal parts. Can be used in explosive environments as there are no contacts to cause sparks. This means that there is no contact degradation due to friction, corrosion or abrasion. The units can be completely sealed for use in harsh environments, as their operation is not affected by dirt, dust, water, or chemicals and can even be used underwater. Can be used in a medical environment where disinfecting and sterilization are required.
