  2. PD Module, 85W, IEEE802.3bt Compliant, 12V/24V
SGD Pricelist
Manufacturing Company :

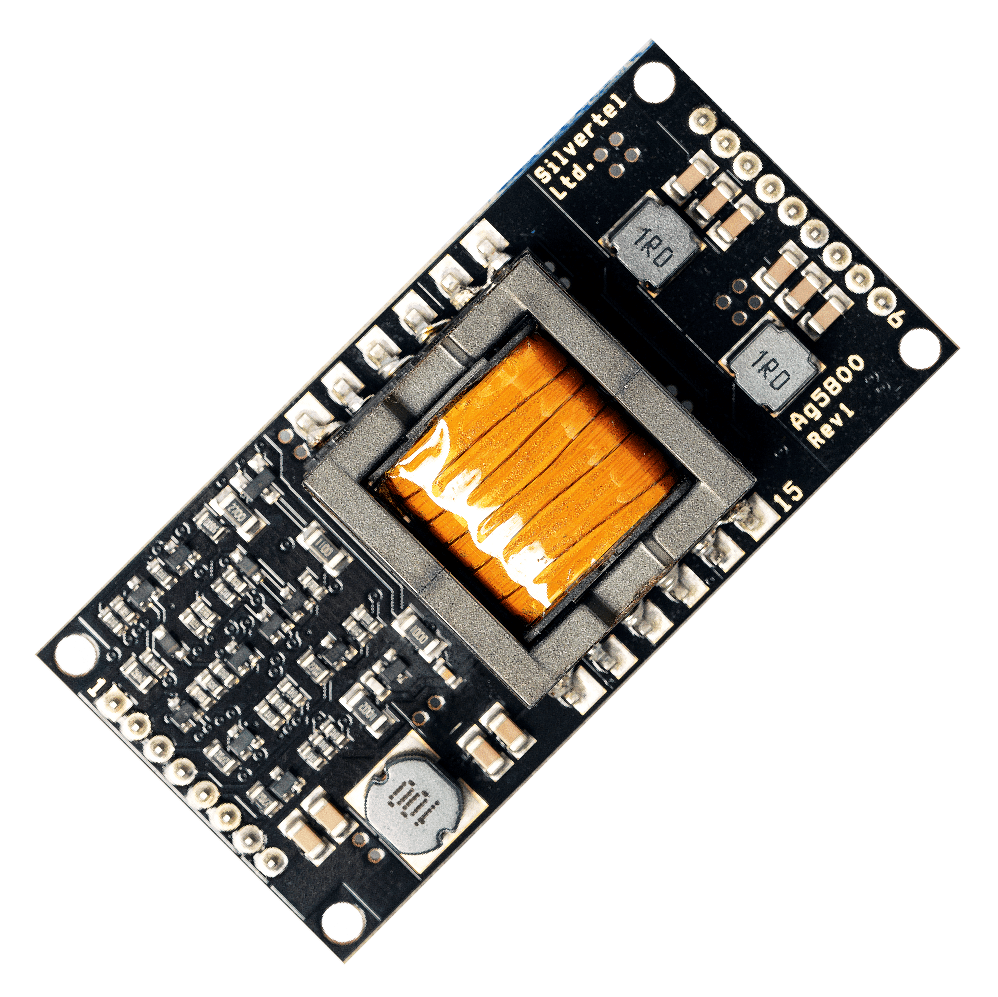

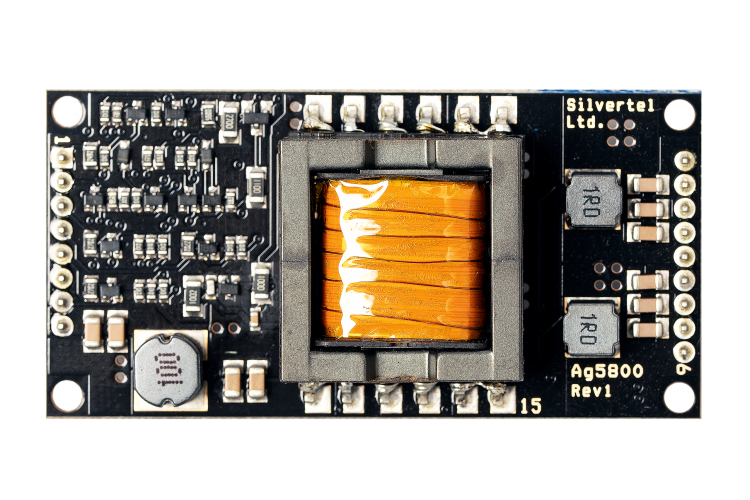

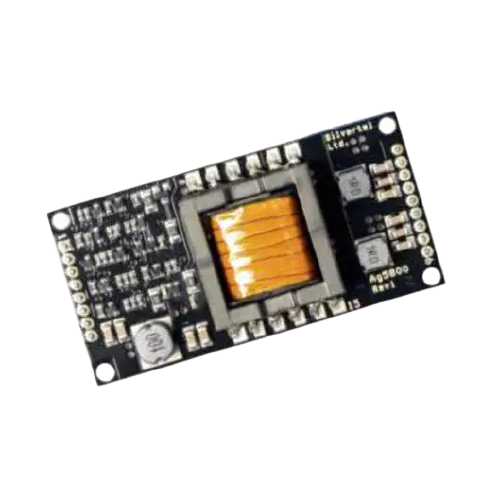

PD Module, 85W, IEEE802.3bt Compliant, 12V/24V

The Ag5800 is IEEE802.3bt Draft compliant PD module is designed for high power POE applications. Depending on cable length it can output up to 85W when supplied from an IEEE802.3bt PSE. This total solution includes 1.5kV of isolation, PoE signature and an integral DC to DC converter for 12 or 24V output

  • Output Voltage

SG$ 31.53

This combination does not exist.

Lead Time : 20.0 weeks

Add to Cart Get Best Price

The Ag5800 is IEEE802.3bt Draft compliant PD module is designed for high power POE applications. Depending on cable length it can output up to 85W when supplied from an IEEE802.3bt PSE. This total solution includes 1.5kV of isolation, PoE signature and an integral DC to DC converter for 12 or 24V output

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel


Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. ... Analog Telecom modules - SLIC and DAA (FXS and FXO). These products are sold around the world through a vast network of distributors. Silvertel's design focus is on size, cost and ease of use.


FIND OUT MORE

Overview


The Ag5800 is an IEEE802.3bt compliant PD module is designed for high-power POE applications. Depending on cable length it can output up to 85W when supplied from an IEEE802.3bt PSE. This total solution includes 1.5kV of isolation, PoE signature and an integral DC to DC converter for 12 or 24V output.

Features

  • Smallest 85W ‘bt’ solution in the world

  • DIL - 70mm(L) x 35mm(W) x 17mm(H)

  • Power received on all 4 pairs - Type 4, Class 8

  • Overload, thermal & short-circuit protection

  • Very low power standby mode

  • Wide input voltage range (37-57V)

  • 12V or 24 V output

  • 89% efficient isolated DC/DC converter

  • Minimal low-cost external components required

  • Simple integration


Applications

Specifications for PD Module, 85W, IEEE802.3bt Compliant, 12V/24V

Output Voltage 12V/24V
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Description

The Ag5800 is an IEEE802.3bt Power over Ethernet module that can deliver up to 85 Watts* of output power when connected to IEEE802.3bt compliant power sourcing equipment. Suitable for applications such as PTZ IP cameras, LED lighting, door access systems, intelligent displays and sensors, monitors and projectors. The module’s input conforms to the IEEE 802.3bt standard for signature recognition and class programming. It has been designed to work with IEEE802.3bt and existing high power PSE’s from leading manufacturers. The high-efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload, thermal and short-circuit output protection.

Features

  • Type 4 PD Compliant with IEEE802.3bt

  • 85 Watt Output Power

  • 12V or 24V output with a wide adjustable output voltage range

  • High-efficiency DC/DC converter

  • Overload, thermal, and short-circuit protection

  • 1500V isolation (input to output)

  • Input voltage range 36V to 57V

  • Low output ripple and noise

  • Compact DIL package - 70mm(L) x 35mm(W) x 17mm(H)

  • Complete PD solution with minimal (low cost) external components required

  • Silvertel “design-in” assistance
