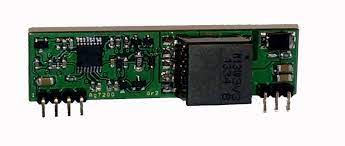

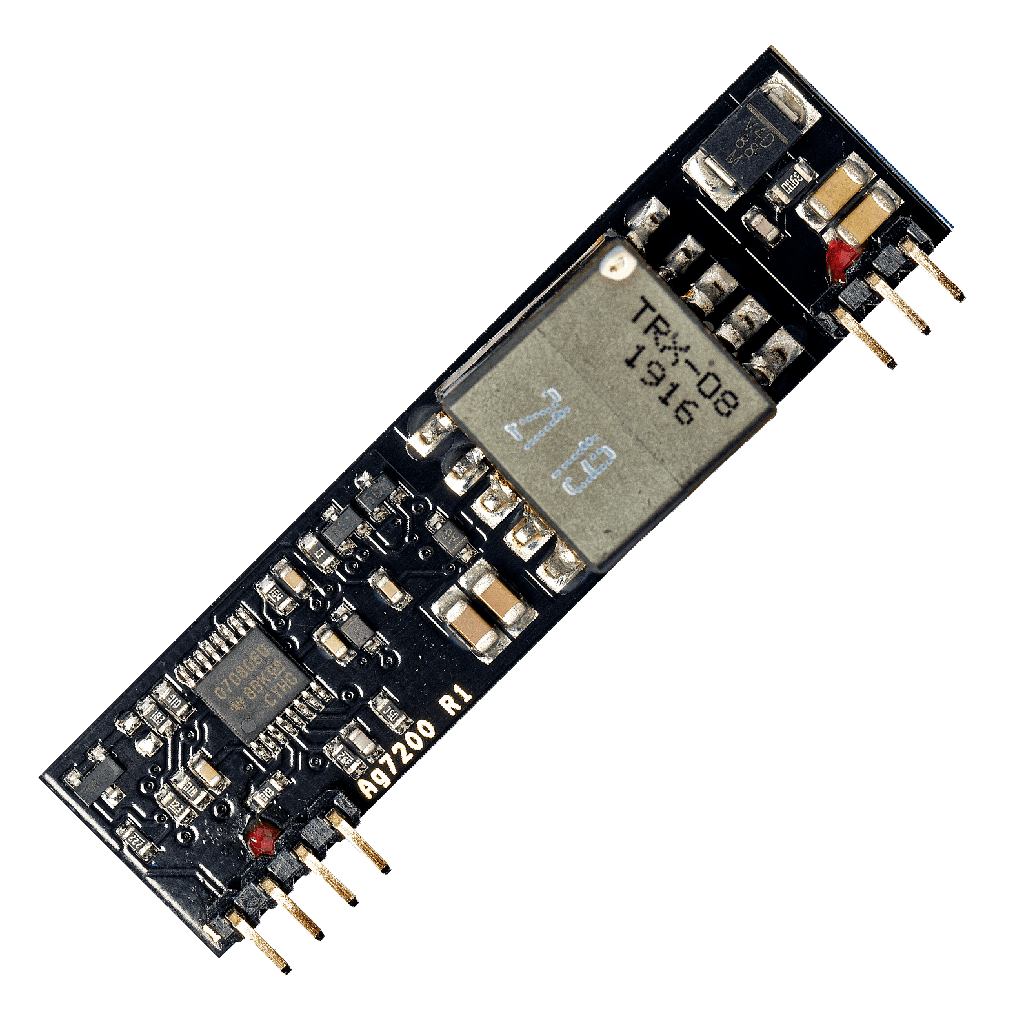

Ag7200 Boost Converter Module, 20W, Isolated DC-DC converter, IEEE802.3af compliant, 5-15V In, 36/57V Out,

Boost Converter Module, 20W, Isolated DC-DC converter, IEEE802.3af compliant, 5-15V In, 36/57V Out, SIL.

    SG$ 15.89

    This combination does not exist.

    Lead Time : 20.0 weeks

    Add to Cart Get Best Price

    Boost Converter Module, 20W, Isolated DC-DC converter, IEEE802.3af compliant, 5-15V In, 36/57V Out, SIL.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Silvertel

    Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality.

    FIND OUT MORE

    Overview

    Ag7200 provides a cost and footprint optimised SIL package 20W isolated DC-DC converter, to boost from 5V to 15V up to between 36V and 57V. It is perfect for PoE, PSE or other applications requiring a convenient isolated solution with minimal additional components and easy integration. It is an ideal functional complement to the Ag6100 PSE module, optimised for 802.3af (15.4W) power levels and applications.

    Features


    • Wide input supply 5V - 15V DC

    • Maximum output power 20W

    • 36V to 57V Output

    • Industrial Temperature range

    • 1.5kV isolation

    • Over-current, thermal & short circuit protection

    • High efficiency (>90%)

    • Low noise and output ripple

    • Simple integration

    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The Ag7200 module is a low noise DC/DC boost converter, designed to generate the higher voltages required for IEEE802.3 PSE applications from lower voltage supplies. This module provides exceptional efficiency (>90%) while providing full compatibility with the IEEE 802.3af power and isolation requirements. The module accepts a wide DC voltage input range, from 5V to 15V. The input voltage is then boosted to generate the higher voltages required to power any IEEE802.3af PSE circuits (including those supplied by Silvertel). The Ag7200 provides a regulated adjustable output, of between 36V and 57V. Ag7200 has been designed to provide an ideal solution for powering the Silvertel Ag6100 PSE module from a vehicle battery, 12V plug-top PSU or other commonly available power supplies. Its low cost, small footprint, high efficiency, and in-built isolation make it an extremely versatile DC-DC boost converter for a wide range of potential applications.
