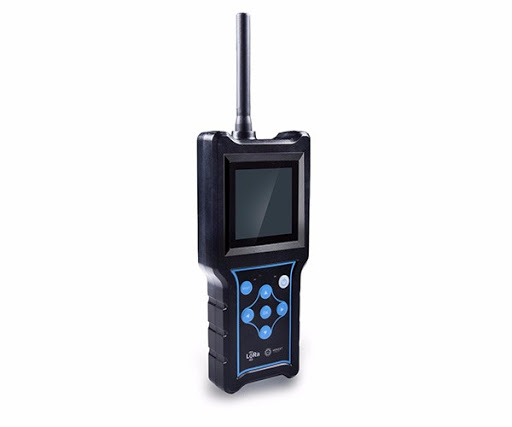

AN-106 LoRaWAN Tester

LoRa tester AN-106 based on LoRa module. AN-106 LoRa tester is with LCD screen and connect with gateway via OTA network joining. It can test the UPLINK and DOWNLINK packet loss rate and meanwhile users can get RSSI and SNR of gateway transmission.

  • Frequency band

SG$ 493.21

This combination does not exist.

Lead Time : 3.0 weeks

Add to Cart Get Best Price

LoRa tester AN-106 based on LoRa module. AN-106 LoRa tester is with LCD screen and connect with gateway via OTA network joining. It can test the UPLINK and DOWNLINK packet loss rate and meanwhile users can get RSSI and SNR of gateway transmission.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Winext


Winext Technology is an AIoT "end-to-end" one-stop solution provider. Focusing on R&D for IoT, we offer whole stack IoT products and system solutions. Our business covers smart city, smart community, smart firefighting, smart elevator, smart street lighting, smart parking and so on.


FIND OUT MORE

Overview


LoRa tester AN-106 based on LoRa module. AN-106 LoRa tester is with LCD screen and connects with the gateway via OTAA network joining. It can test the UPLINK and DOWNLINK packet loss rate and meanwhile users can get RSSI and SNR of gateway transmission. Users can also turn on the GPS to display the latitude and longitude coordinates of the device and check the LoRoWAN CLASS type and the firmware version number of the LoRa tester.

Features

  • Supports LoRa wireless communication, supports CN470-510MHz/868MHz/915MHz;

  • Support GPS locating with the accuracy of within 5M;

  • With built-in lithium battery can support the system for 36 hours;

  • With an LCD screen, which can support text interface display;

  • Full plastic shell structure design;

  • Wide working temperature range, to achieve industrial -20℃~+70℃;

  • Support real-time communication with gateway, can get RSSI and SNR of gateway transmission;

  • Support statistics of packet loss rate of communication between gateway and nodes

Applications

Specifications for AN-106 LoRaWAN Tester

Frequency band AS923
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


PRODUCT DESCRIPTIONS
This is based on LoRa module. LoRa tester is with LCD screen and connects with the gateway via OTA network joining. It can test the UPLINK and DOWNLINK packet loss rate and meanwhile users can get RSSI and SNR of gateway transmission. Users can also turn on the GPS to display the latitude and longitude coordinates of the device and check the LoRoWAN CLASS type and the firmware version number of the LoRa tester.
KEY FEATURES
• Support LoRa wireless communication, support CN470-510MHz/868MHz/915MHz
• Support GPS locating with the accuracy of within 5M
• With built-in lithium battery can support the system for 36 hours
• With LCD screen, which can support text interface display
• Full plastic shell structure design
• Wide working temperature range, to achieve industrial -20℃~+70℃
• Support real-time communication with gateway, can get RSSI and SNR of gateway transmission
• Support statistics of packet loss rate of communication between gateway and nodes
SPECIFICATIONS
CPUARM 32bit-Cortex-M3 kernel;
Main frequency: 32MHz
Memory128KB Flash
16KB RAM
4KB EEPROM
Sensorbuilt-in GPS
BuzzerBuilt-in
LED indicator1x power indicator, red
1x charging indicator, green
AntennaExternal LoRa antenna,
Built-in GPS ceramic antenna
Data rate300bps~5.4Kbps
Working frequency470MHz~510MHz

863MHz~870MHz

902MHz~928MHz

ProtocolSupport LoRaWAN
Maximum transmitted power17dbm
Rx sensitivity-140dBm
Overall power consumption110mW
Battery capacity3.7V/3500mAh
Working temperature-20℃~70℃
Working humidity10%~90%
Power supplybuilt-in rechargeable lithium battery
Input voltageDC3.7V
Transmit status150mA
IP gradeIP65
Dimension190*86*30mm
APPLICATIONS
• Smart city communication management system
• Smart community communication management system
• Smart Agriculture communication system
• Smart transportation communication system
