Manufacturing Company :

Cypress SDIO bgn WIFi Combo Baseband module

  • Wi-Fi Compliance
  • Bluetooth version
  • Security
  • Interface
  • Chipset
  • Operation Temperature range

SG$ 3.26

This combination does not exist.

Lead Time : 8.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Winext

Lierda is a hi-tech enterprise in the national key area. For more than ten years, it has been dedicated to technology and market promotion of IoT embedded industry, and has abundant technical strength. More than 30% of the Company’s employees are technical researchers and developers, and possess a wealth of practical experience in embedded micro control technology, RF hardware R&D, communication and networking technology. In the IoT wireless communication field, Lierda has developed mature communication solutions as NB-IoT, LoRa, Wi-Fi, BLE, ZigBee and RF; the underground garage energy-saving lighting, wireless four-meter centralized reading, room energy consumption monitoring and analysis, smart cold chain, smart electric vehicle, smart retail terminal, smart AD delivery, smart air monitoring and purification, smart shoes and other system solutions which are put forward by it have been widely applied.


FIND OUT MORE

Overview

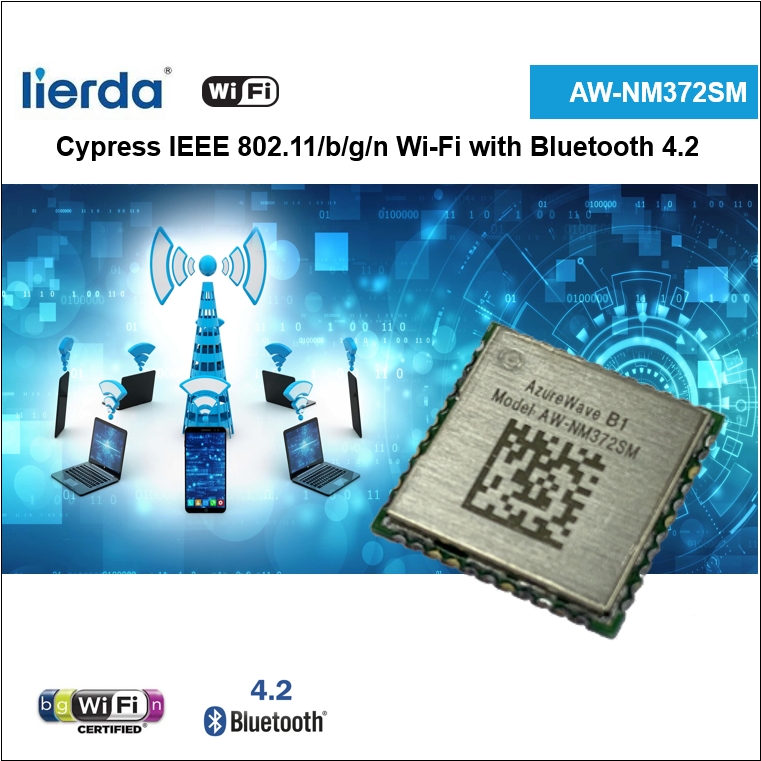

Advanced IEEE 802.11 b/g/n WLAN, Bluetooth and FM combo module - AW-NM372SM. The module is targeted to mobile and embedded devices which need a small footprint package, low power consumption, and multiple OS support. The module supports 2.4GHz IEEE 802.11n MAC/baseband/radio, and Bluetooth 4.2 functionality. It also features an integrated Power Management Unit (PMU), Power Amplifiers (PAs), and a Low Noise Amplifier (LNA) to address the needs of mobile devices that require minimal power consumption and compact size.

Features

  • Integrates Broadcom solutions of CYW43438_A1 WiFi /BT/FM RX SoC

  • SDIO v2.0 interfaces support for WLAN

  • High-speed UART and PCM for Bluetooth

  • Lead-free Design

  • 12.0mm(L) x 12.0mm(W) x 1.5 mm(H) 47 pin LGA package

  • With Crystal(XTAL) 1.2.1 WLAN

  • Single band 2.4 GHz 802.11 b/g/n

  • WLAN host interface options

  • SDIO v2.0, including DS and HS modes

  • Security–WEP, WPA/WPA2 (personal), AES (HW), TKIP (HW), CKIP (SW), WMM/WMM-PS/WMM-SA

Applications

Specifications for Cypress SDIO bgn WIFi Combo Baseband module

Wireless
Wi-Fi Compliance 802.11 b/g/n
Bluetooth version Bluetooth 4.2
Security Cisco® Compatible Extension CCX5.0
External
Interface SDIO
Uncategorized
Chipset CYW43438
Operation Temperature range -30~85 oC
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


AzureWave Technologies, Inc. introduces the advanced IEEE 802.11 b/g/n WLAN, Bluetooth, and FM combo module - AW-NM372SM. The module is targeted to mobile and embedded devices which need a small footprint package, low power consumption, and multiple OS support. The module supports 2.4GHz IEEE 802.11n MAC/baseband/radio, and Bluetooth 4.2 functionality. It also features an integrated Power Management Unit (PMU), Power Amplifiers (PAs), and a Low Noise Amplifier (LNA) to address the needs of mobile devices that require minimal power consumption and compact size. By using AW-NM372SM, the customers can easily enable the Wi-Fi and BT embedded applications with the benefits of high design flexibility, short development cycle, and quick time-to-market. Specified in the IEEE 802.11 standard minimize the system power requirements by using AW-NM372SM. In addition to the support of WPA/WPA2 (personal) and WEP encryption, the AW-NM372SM also supports the IEEE 802.11i security standard through AES and TKIP acceleration hardware for faster data encryption. For the video, voice, and multimedia applications the AWNM372SM supports 802.11e Quality of Service (QoS). The host interface is SDIO v2.0 interface. For Bluetooth operation, the AW-NM372SM is Bluetooth 4.2 compliant. The Bluetooth transmitter also features a Class 1 power amplifier. The AW-NM372SM supports extended Synchronous Connections (eSCO), for enhanced voice quality by allowing for retransmission of dropped packets, and Adaptive Frequency Hopping (AFH) for reducing radio frequency interference. It also incorporates all Bluetooth 4.2 features including Secure Simple Pairing, Sniff Subrating, and Encryption Pause and Resume. An independent, high-speed UART is provided for the Bluetooth host interface. The Bluetooth subsystem presents a standard Host Controller Interface (HCI) via a high-speed UART and PCM for audio. For FM receiver, the AW-NM372SM is 76-MHz to 108-MHz FM bands supported and supports the European Radio Data Systems (RDS) and the North American Radio Broadcast Data System (RBDS) modulations. The FM subsystem supports the HCI control interface as well as I2S interfaces of the Bluetooth subsystem.


Features

  • Integrates Broadcom solutions of CYW43438_A1 WiFi /BT/FM RX SoC

  • SDIO v2.0 interfaces support for WLAN

  • High-speed UART and PCM for Bluetooth

  • Lead-free Design

  • 12.0mm(L) x 12.0mm(W) x 1.5 mm(H) 47 pin LGA package

  • With Crystal(XTAL) 1.2.1 WLAN

  • Single band 2.4 GHz 802.11 b/g/n

  • WLAN host interface options

  • SDIO v2.0, including DS and HS modes

  • Security–WEP, WPA/WPA2 (personal), AES (HW), TKIP (HW), CKIP (SW), WMM/WMM-PS/WMM-SA

Bluetooth

  • Supports extended Synchronous Connections (eSCO), for enhanced voice quality by allowing for retransmission of dropped packets

  • Adaptive Frequency Hopping (AFH) for reducing radio frequency interference

  • Maximum UART baud rates up to 4 Mbps

  • Supports all Bluetooth 4.2 packet types

  • Fully supports Bluetooth Core Specification version 4.2 + (Enhanced Data Rate) EDR features:

  • Adaptive Frequency Hopping (AFH)

  • Quality of Service (QoS)

  • Extended Synchronous Connections (eSCO) — Voice Connections

  • Fast Connect (interlaced page and inquiry scans)

  • Secure Simple Pairing (SSP)

  • Sniff Subrating (SSR)

  • Encryption Pause Resume (EPR)

  • Extended Inquiry Response (EIR)

  • Link Supervision Timeout (LST)

  • Interface support – Host Controller Interface (HCI) using a high-speed UART interface and PCM for audio data
