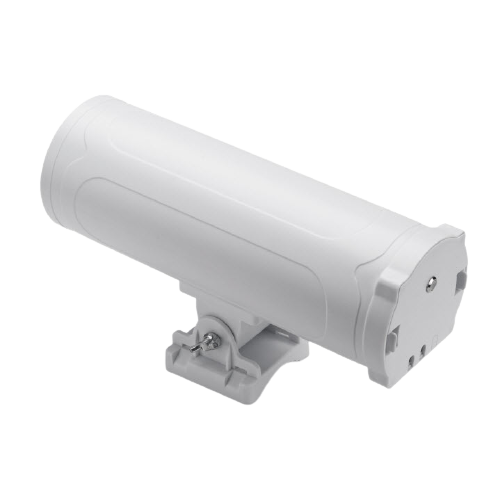

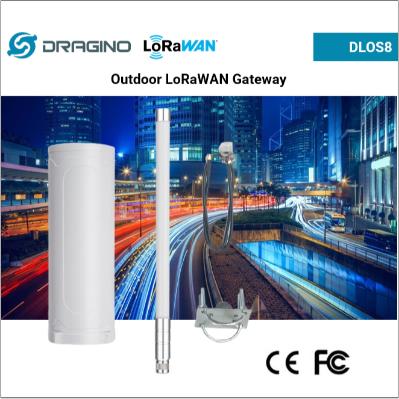

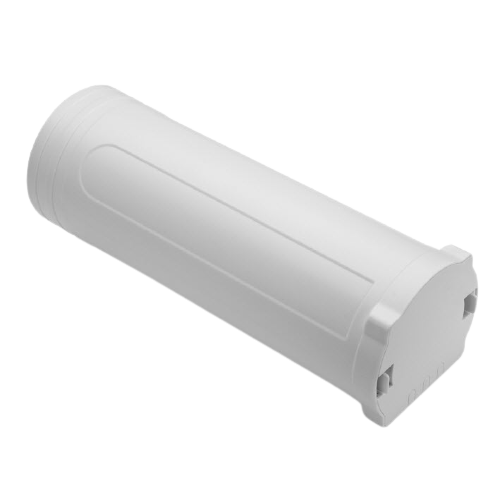

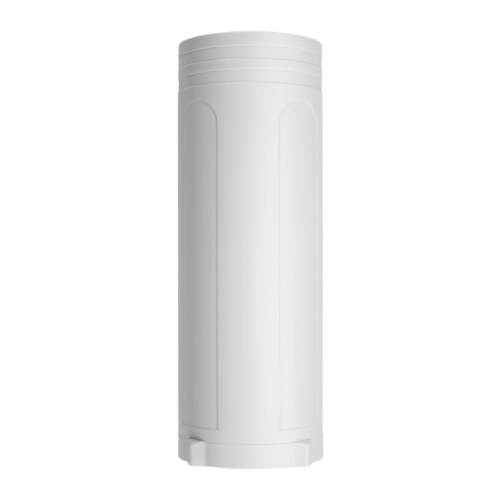

DLOS8 Outdoor LoRaWAN Gateway

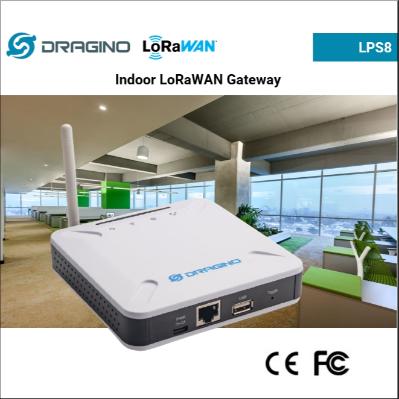

The LPS8 is an open source LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi or Ethernet. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

  • LoRaWAN Network Server build in
  • Open Source
  • Chipset
  • Frequency band
  • Waterproof
  • 4G LTE

SG$ 475.99

This combination does not exist.

Lead Time : 3.0 weeks

Add to Cart Get Best Price

The LPS8 is an open source LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi or Ethernet. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

The DLOS8 is an open source outdoor LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

The DLOS8 uses semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes a SX1301 LoRaWAN concentrator, which provide 10 programmable parallel demodulation paths.

DLOS8 has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customized the frequency bands to use in their own LoRaWAN network.

DLOS8 can communicate with ABP LoRaWAN end node without LoRaWAN server. System integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service.




Features

  • Open Source OpenWrt system

  • Managed by Web GUI, SSH via LAN or WiFi

  • Emulates 49x LoRa demodulators

  • Outdoor LoRaWAN Gateway

  • 10 programmable parallel demodulation paths

  • LoRaWAN packet filtering

  • Far seeing LED indicator

  • Built-in GPS module for location & timing

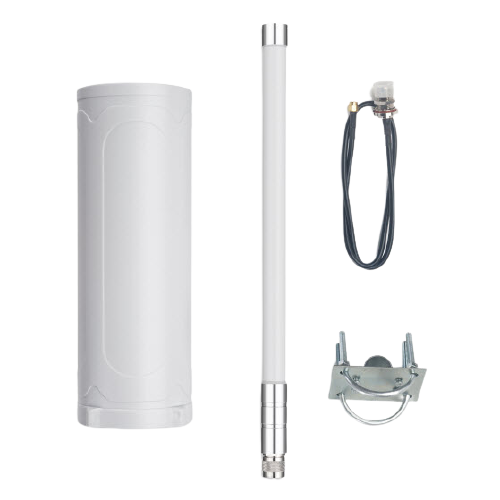

  • External fiber glass antenna

  • 802.3af PoE

  • IP65

  • Lighting Protection

  • Power Consumption:12v 300 ~500mA

Applications

Specifications for DLOS8 Outdoor LoRaWAN Gateway

LoRaWAN
LoRaWAN Network Server build in No
Development mode
Open Source OpenWRT
Uncategorized
Frequency band EU868 or US915
4G LTE without 4G LTE or EC25-E or EC25-A or EC25-AU or EC25-J
Chipset SX1301 + 2 x SX1257
Waterproof IP67
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


The DLOS8 is an open source outdoor LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

The DLOS8 uses semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes a SX1301 LoRaWAN concentrator, which provide 10 programmable parallel demodulation paths.

DLOS8 has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customized the frequency bands to use in their own LoRaWAN network.

DLOS8 can communicate with ABP LoRaWAN end node without LoRaWAN server. System integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service.

Specifications:

LoRa Spec:

  • 1 x SX1301 + 2 x 1257 LoRa Tranceiver

General Specification:

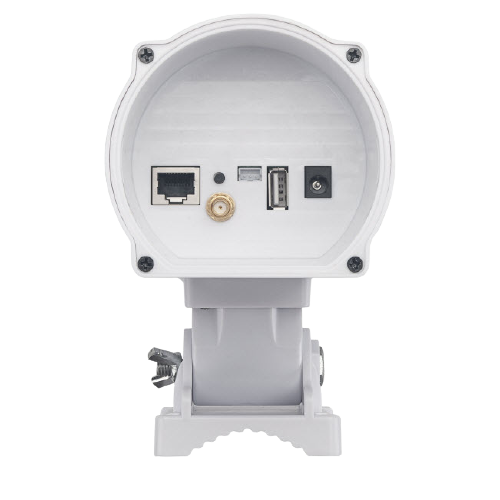

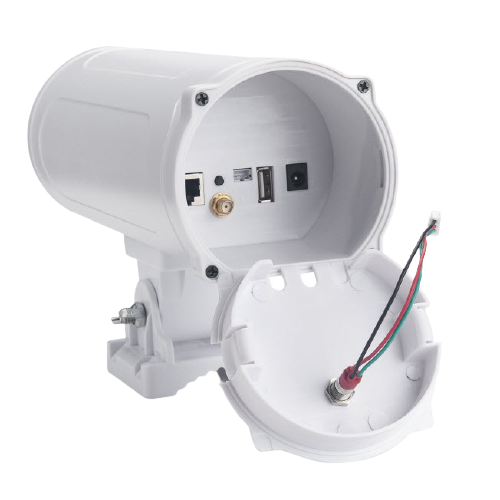

  • 10M/100M RJ45 Ports x 1
  • 1 x 2.4G WiFi (802.11 bgn)
  • 1 x USB host port
  • Power by 12v DC or PoE

Features:

  • Open Source OpenWrt system
  • Managed by Web GUI, SSH via LAN or WiFi
  • Emulates 49x LoRa demodulators
  • Outdoor LoRaWAN Gateway
  • 10 programmable parallel demodulation paths
  • LoRaWAN packet filtering
  • Far seeing LED indicator
  • Built-in GPS module for location & timing
  • External fiber glass antenna
  • 802.3af PoE
  • IP65
  • Lighting Protection
  • Power Consumption:12v 300 ~500mA



Applications:

  • Smart Buildings & Home Automation
  • Logistics and Supply Chain Management
  • Smart Metering
  • Smart Agriculture
  • Smart Cities
  • Smart Factory
