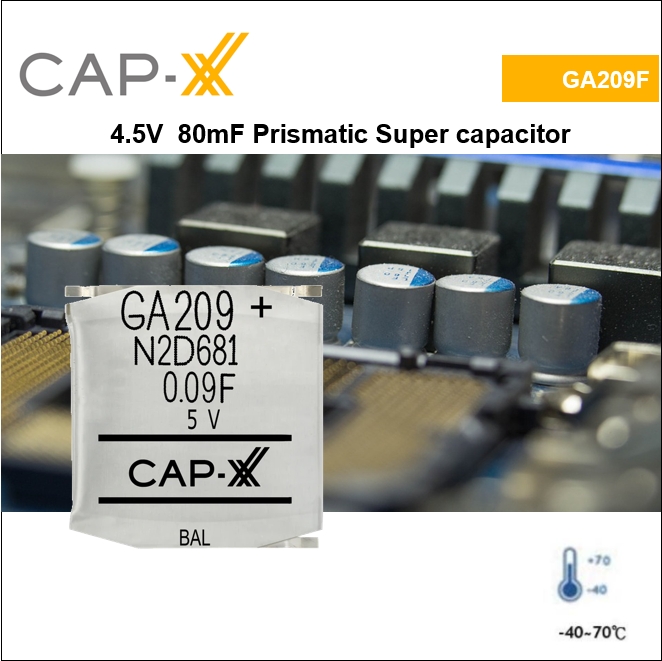

GA209F Dual Cell 4.5V@80mF ESR Ω120mΩ
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The GA209 is a dual cell supercapacitor with two GA109 cells in series, so GA209 capacitance = Capacitance of GA109/2 and GA209 ESR = 2 x GA109 ESR.
Ultra-thin prismatic cells and modules: Ideal for use in space-constrained devices
Exceptional power density (up to 128 kW/litre), with best-in-class ESR (from 15 m?)
High energy density (up to 1.9 Wh/litre), offering high Capacitance in small cells
True, continuous operating voltage of up to 2.75V/cell (H series; 2.9V peak)
High temperature rating (H series; 85°C maximum)
Excellent low temperature performance (G series; ~2x nominal ESR at -30°C)
Very low leakage current (<1 µA) and ultra-low minimum charge current (<20 µA)
Virtually unlimited charge-discharge cycle life
Excellent frequency response (CEFFECTIVE)
RoHS and REACH compliant, Lead-free, Halogen-free and Conflict metal-free
UL-810 and ISO 9001:2015 certified
