Manufacturing Company :

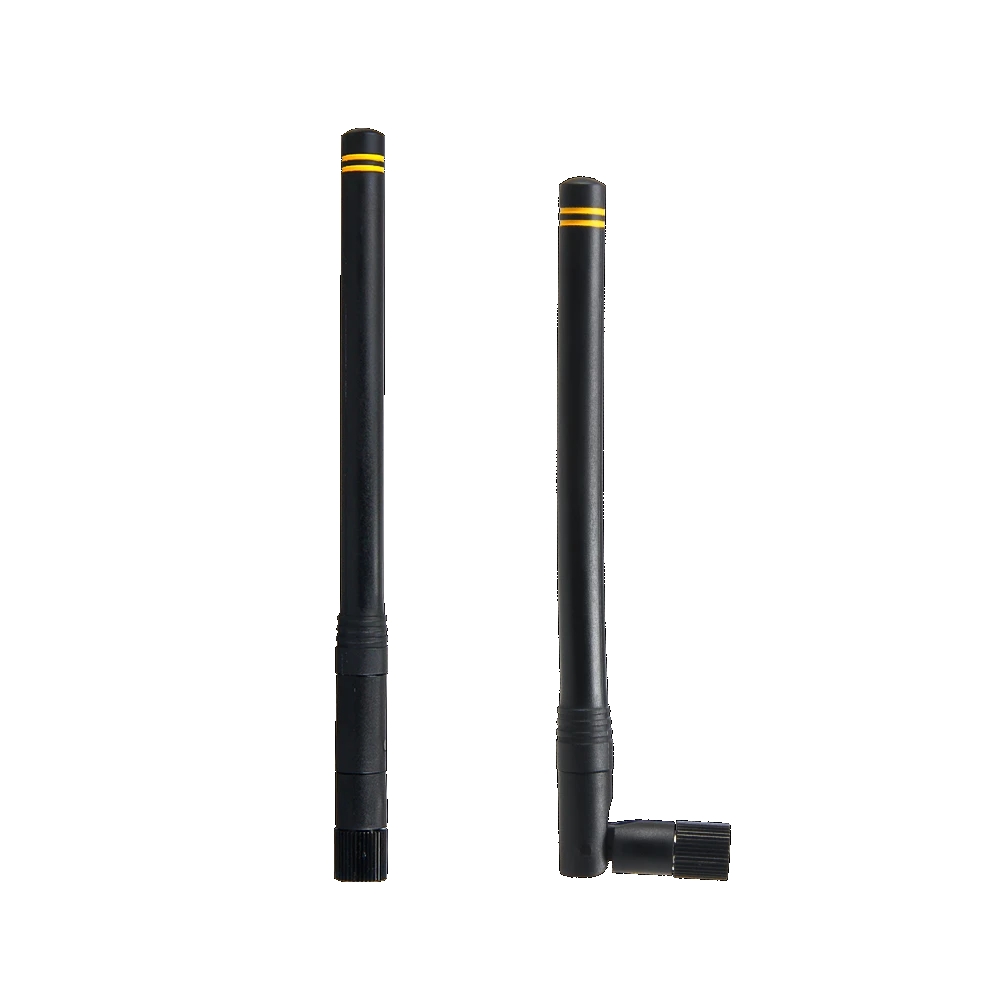

Helium 916MHz Antenna, 868MHz Antenna

HWR Series ½-wave center-fed dipole antennas

  • Frequency band

SG$ 13.13

This combination does not exist.

Lead Time : 2.0 weeks

Add to Cart Get Best Price

HWR Series ½-wave center-fed dipole antennas


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

Shenzhen Rakwireless Technology Co., Ltd. (RAK) was established in June 2014. Based in Shenzhen with an R&D center in Shanghai and an office in Beijing, RAK devoted to developing and supplying advanced IoT technology and services. RAK has become a one-stop IoT solution supply company from R&D, production to sales. Based on rich experiences on IoT industry, the RAK founder and his team focus on developing IoT Middleware, which is the company core competence, and supply end to end IoT solutions to customers. Besides having accumulated many experiences of most of main protocols such as HomeKit, Amazon Echo, NEST, IFTTT, Z-Wave and LoRa, RAK is also an Apple Homekit licensee, Amazon IoT Consulting Partner, Z-Wave Alliance Member and Google Thread Member.

FIND OUT MORE

Specifications for Helium 916MHz Antenna, 868MHz Antenna

Frequency band 900MHz or 800MHz
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


  900–930MHz 853–883MHz
Center Frequency 916MHz 868MHz
Peak Gain 1.2 dBi 2.3 dBi
VSWR ≤ 2 typical ≤ 2 typical
Bandwidth 30MHz 30MHz
Feed Impedance 50 Ohms 50 Ohms
Antenna Type ½-wave dipole ½-wave dipole
Cover Material (color) Plastic (black) Plastic (black)
Connector Type RP-SMA RP-SMA
Diameter 8.2 ~ 10.0mm 8.2 ~ 10.0mm
Length 142.0mm 142.0mm
Operation Temperature –30°C to +80°C –30°C to +80°C
