LoRaWAN Leaf Moisture Sensor

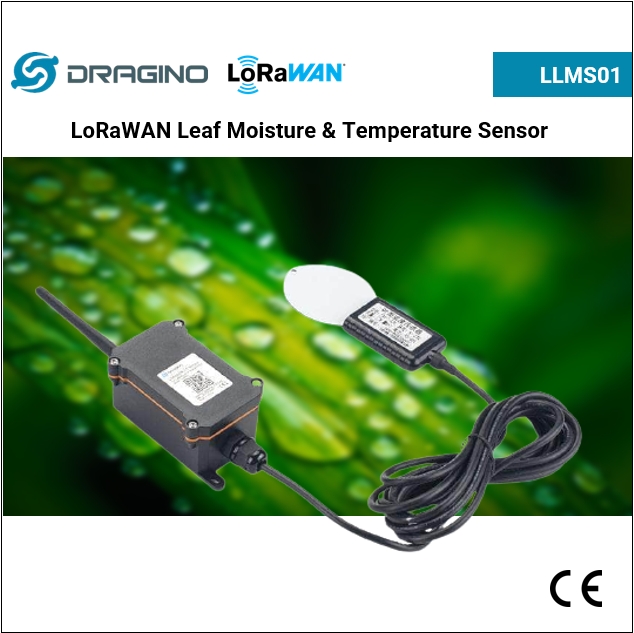

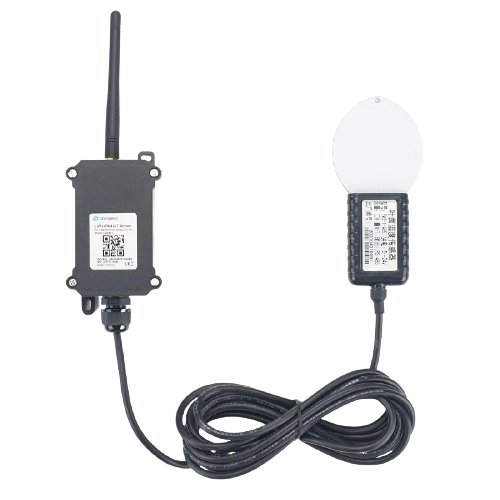

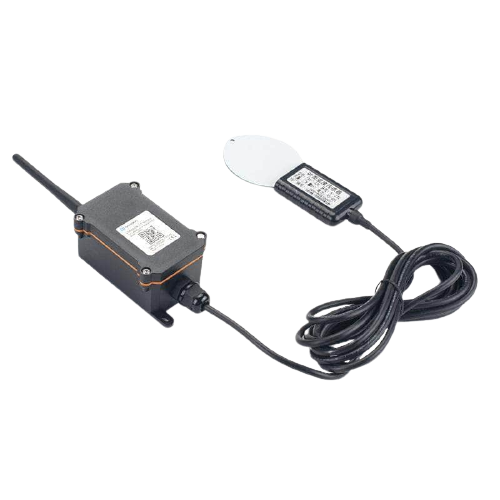

The Dragino LLMS01 is a LoRaWAN Leaf Moisture Sensor for IoT of Agriculture. It is designed to measure the leaf moisture and temperature, so to send to the platform to analyze the leaf status such as : watering, moisturizing, dew, frozen. The probe is IP67 waterproof.

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Battery Capacity

SG$ 131.56

This combination does not exist.

Lead Time : 3.0 weeks

Add to Cart Get Best Price

The Dragino LLMS01 is a LoRaWAN Leaf Moisture Sensor for IoT of Agriculture. It is designed to measure the leaf moisture and temperature, so to send to the platform to analyze the leaf status such as : watering, moisturizing, dew, frozen. The probe is IP67 waterproof.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

The Dragino LLMS01 is a LoRaWAN Leaf Moisture Sensor for IoT of Agriculture. It is designed to measure the leaf moisture and temperature, so to send to the platform to analyze the leaf status such as : watering, moisturizing, dew, frozen. The probe is IP67 waterproof.

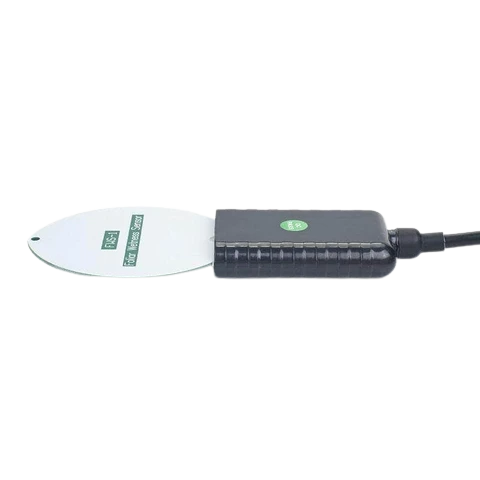

LLMS01 detects leaf's moisture and temperature use FDR method, it senses the dielectric constant cause by liquid over the leaf surface, and convert the value to leaf moisture. The probe is design in a leaf shape to best simulate the real leaf characterizes. The probe has as density as 15 leaf vein lines per centimeter which make it can senses small drop and more accuracy.

The LoRa wireless technology used in LLMS01 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LLMS01 is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.


Features

  • LoRaWAN 1.0.3 Class A

  • Ultra-low power consumption

  • Monitor Leaf moisture

  • Monitor Leaf temperature

  • Monitor Battery Level

  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865

  • AT Commands to change parameters

  • Uplink on periodically

  • Downlink to change configure

  • IP66 Waterproof Enclosure

  • IP67 rate for the Sensor Probe

  • 8500mAh Battery for long term use

Applications

Specifications for LoRaWAN Leaf Moisture Sensor

LoRaWAN
LoRa transceiver SX1262
Uncategorized
Cable length 3m
Frequency band AS923
OpenCPU No
Sensor Leaf Moisture/Temperature
Waterproof IP67
Class Class A
Power type Built-in Li-SOCL2 battery
LoRaWAN version 1.0.3
Battery Capacity 8500mAh
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


The Dragino LLMS01 is a LoRaWAN Leaf Moisture Sensor for IoT of Agriculture. It is designed to measure the leaf moisture and temperature, so to send to the platform to analyze the leaf status such as : watering, moisturizing, dew, frozen. The probe is IP67 waterproof.

LLMS01 detects leaf's moisture and temperature use FDR method, it senses the dielectric constant cause by liquid over the leaf surface, and convert the value to leaf moisture. The probe is design in a leaf shape to best simulate the real leaf characterizes. The probe has as density as 15 leaf vein lines per centimeter which make it can senses small drop and more accuracy.

The LoRa wireless technology used in LLMS01 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LLMS01 is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each LLMS01 is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

  • LoRaWAN 1.0.3 Class A
  • Ultra-low power consumption
  • Monitor Leaf moisture
  • Monitor Leaf temperature
  • Monitor Battery Level
  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
  • AT Commands to change parameters
  • Uplink on periodically
  • Downlink to change configure
  • IP66 Waterproof Enclosure
  • IP67 rate for the Sensor Probe
  • 8500mAh Battery for long term use



Applications:

  • Smart Agriculture
Submit
