Manufacturing Company :

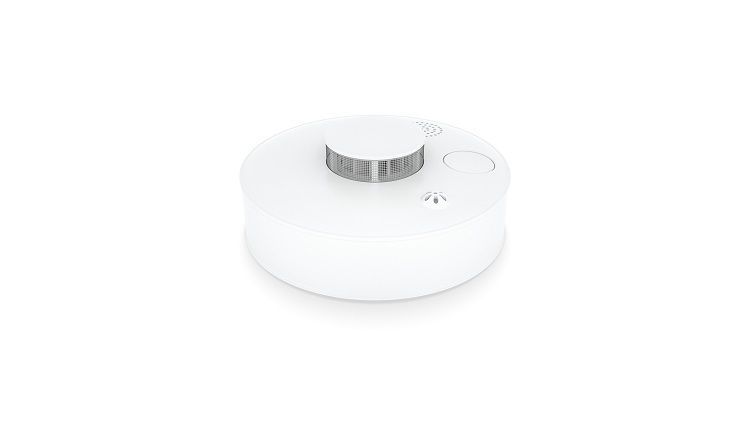

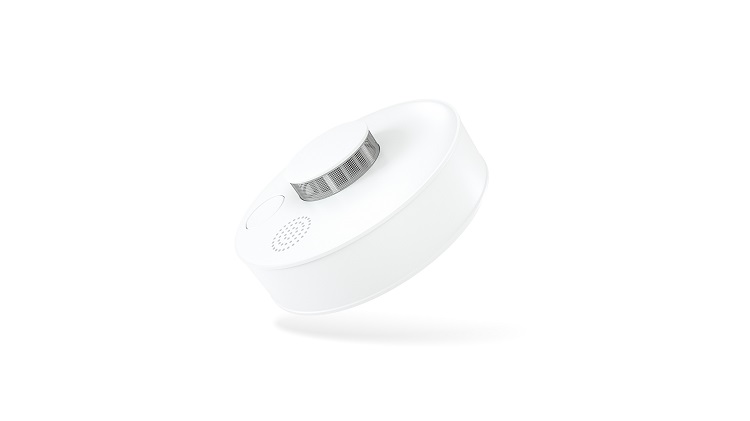

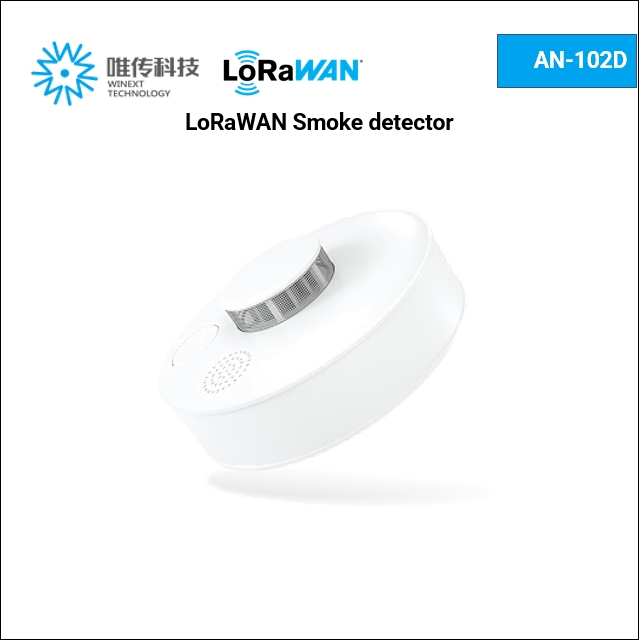

LoRaWAN Smoke Detector AN-102D

AN-102D LoRaWAN Smoke Detector support standard LoRaWAN™ protocol. With high-precision, the device emit red light when it detects a fire alarm. The device sends alarm data to the platform to remind relevant personnel on the site to deal solve it. Self-test function and low battery voltage warning functions are available.

  • Cable length
  • Sensor
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sensor Measurement Range
  • Battery Capacity

SG$ 115.55

This combination does not exist.

Lead Time : 3.0 weeks

Add to Cart Get Best Price

AN-102D LoRaWAN Smoke Detector support standard LoRaWAN™ protocol. With high-precision, the device emit red light when it detects a fire alarm. The device sends alarm data to the platform to remind relevant personnel on the site to deal solve it. Self-test function and low battery voltage warning functions are available.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Winext

Winext Technology is an AIoT "end-to-end" one-stop solution provider. Focusing on R&D for IoT, we offer whole stack IoT products and system solutions. Our business covers smart city, smart community, smart firefighting, smart elevator, smart street lighting, smart parking and so on..


FIND OUT MORE

Overview

AN-102D LoRaWAN Smoke Detector supports standard LoRaWAN™ protocol. With high precision, the device emits red light when it detects a fire alarm. The device sends alarm data to the platform to remind relevant personnel on the site to deal solve it. Self-test function and low battery voltage warning functions are available.

Features

  • Support standard LoRaWANTM protocol

  • High precision

  • Red/Yellow Led indicator

  • Self-test function

  • Easy cable-free installation

Specifications for LoRaWAN Smoke Detector AN-102D

Frequency band AS923 or AU915 or KR920 or US915
Cable length NA
Sensor Smoke
Waterproof IP30
Class Class A
Power type Battery
Sensor Measurement Range 3m
Battery Capacity 3000mAh
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


AN-102D LoRaWAN Smoke Detector supports standard LoRaWAN™ protocol. With high precision, the device emits red light when it detects a fire alarm. The device sends alarm data to the platform to remind relevant personnel on the site to deal solve it. Self-test function and low battery voltage warning functions are available.

Application scenarios
Residential buildings, schools, nursing homes, hotels, restaurants, factories and etc



 Product Features:

◊ Support standard LoRaWANTM protocol

◊ High precision

◊ Red/Yellow Led indicator

◊ Self-test function

◊ Easy cable-free installation


Product Dimension and image:

Technical Parameter:

Description

Parameter

Communication

LoRaWANTM  protocol

Type of alarm

Led indicator on, Alarm sound, wireless remote alarm

Alarm Sound Output

>80dB (at 3m )

Smoke detecting

Red/ blue photoelectric smoke detection



Temperature detecting

detecting ambient Temperature

Frequency

CN 470MHz~510MHz


EU 863MHz~870MHz


US 902MHz~928MHz


AU 915MHz~928MHz


AS923; RU864-870; IN865-867

Data transmission rate

300bps5.4Kbps

Max Tpower

19dBm

Rx sensitivity

-140dBm(SF=12)

Antenna

Built-in antenna

Working temperature

-40℃~+80

Working Humidity

<95% (non-condensing)

Battery volume

3.0V/3000mAh Lithium manganese battery

Battery type

Built-in Li-SOCL2 battery

Dimension

Dia119mm x 45.5mm
