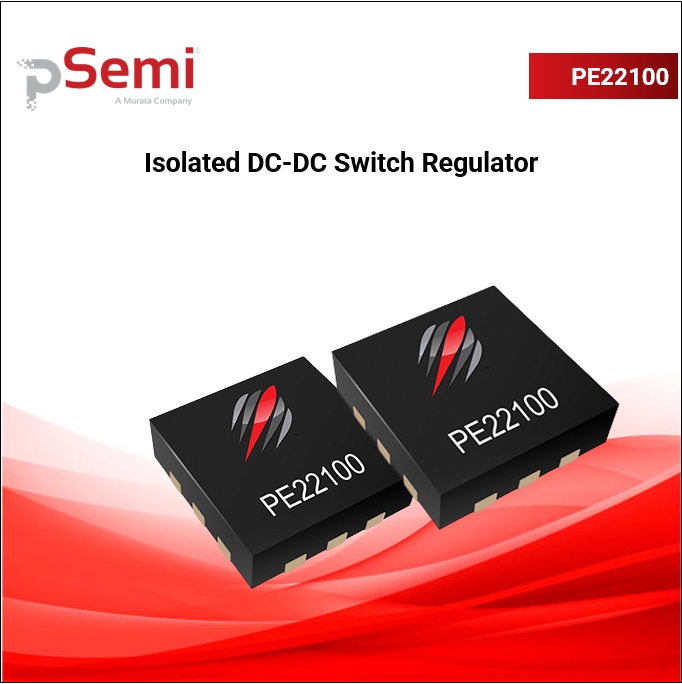

PE22100 Transformer Driver

Transformer Driver for Isolated Power Supplies, 2 MHz

SG$ 4.23

This combination does not exist.

Lead Time : 22.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

pSemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare. From headquarters in San Diego and offices around the world, pSemi’s team explores new ways to make electronics for the connected world smaller, thinner, faster and better.

FIND OUT MORE

Overview

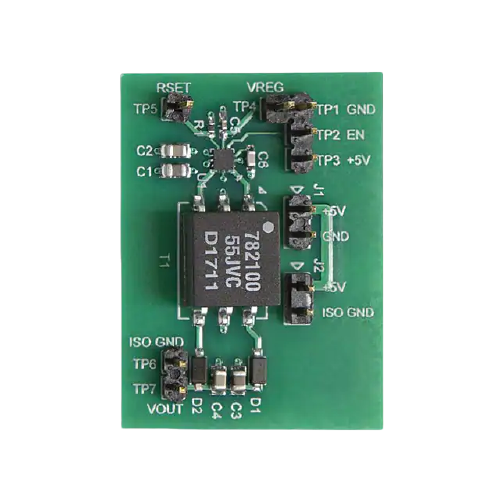

The PE22100 is a push-pull driver for driving small transformers for isolated power supply applications. The PE22100 drives the primary of a center-tapped transformer such as the 782100 family from Murata from a 3V or a 5V supply to deliver an isolated power supply. The device consists of an on-chip oscillator whose frequency is set by an external capacitor. The oscillator output is divided by two in frequency to create anti-phase clock signals that drive two power switches. The device also contains an internal current limit and thermal cutout. The PE22100 is available in a 2 × 2 × 0.5 mm QFN package and is specified for operation from –40°C to +125°C.

Features

Push-pull driver for small transformers

Operates off a 3.0V or 5V supply

Adjustable switching frequency up to 2 MHz

Current limit protection

Over-temperature protection

Packaging: 2 × 2 × 0.5 mm QFN
