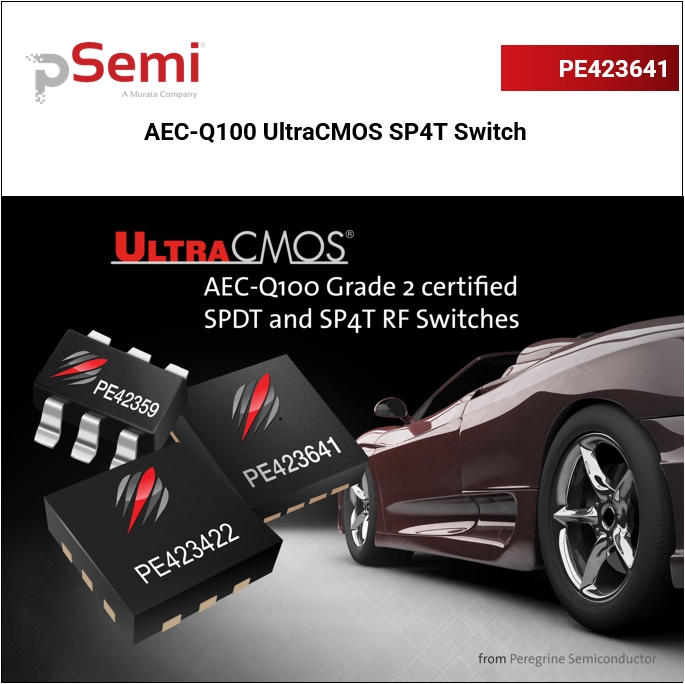

PE423641 AEC-Q100 SP4T RF switch

AEC-Q100 Certified SP4T, Low IL, Reflective, 50Ω RF Switch

    SG$ 3.20

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    AEC-Q100 Certified SP4T, Low IL, Reflective, 50Ω RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

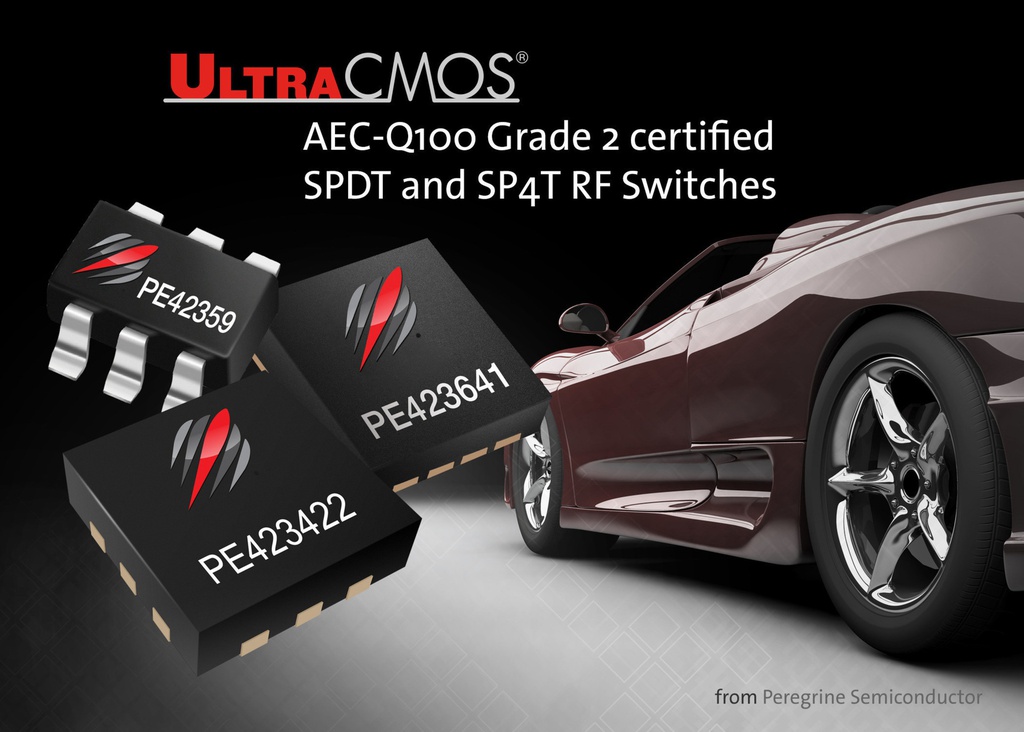

    The PE423641 is a HaRP™ technology-enhanced reflective SP4T RF switch. It has received AEC-Q100 Grade 2 certification and meets the quality and performance standards that makes it suitable for use in harsh automotive environments. It is designed to cover a wide range of wireless applications from 50 MHz through 3 GHz such as cellular antenna band switching, automotive infotainment and traffic safety applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

    Features

        AEC-Q100 Grade 2 certified
        Supports operating temperature up to +105°C
        HaRP™ technology enhancements provide excellent linearity
        Low insertion loss
        High isolation
        High ESD performance
        Integrated decoder for 2-pin control
        Packaging: 16-lead 3 × 3 mm QFN
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE423641 is a HaRP™ technology-enhanced reflective SP4T RF switch. It has received AEC-Q100 Grade 2 certification and meets the quality and performance standards that makes it suitable for use in harsh automotive environments. It is designed to cover a wide range of wireless applications from 50 MHz through 3 GHz such as cellular antenna band switching, automotive infotainment and traffic safety applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

    Key Features

        AEC-Q100 Grade 2 certified
        Supports operating temperature up to +105°C
        HaRP™ technology enhancements provide excellent linearity
        Low insertion loss
        High isolation
        High ESD performance
        Integrated decoder for 2-pin control
        Packaging: 16-lead 3 × 3 mm QFN

    Specifications

    DescriptionSP4T (R)
    Min Freq.50 MHz
    Max Freq.3000 MHz
    Max Typ. IL (dB)0.95
    Min Typ. IL (dB)0.50
    Max Typ. Iso (dB)32
    Min Typ. Iso (dB)22
    P1/0.1dB (dBm)-/37.0
    IIP3 (dBm)68
    Package16L QFN
    Package (mm)3x3
