  2. PE42420 High isolution SPDT RF switch
SGD Pricelist
Manufacturing Company :

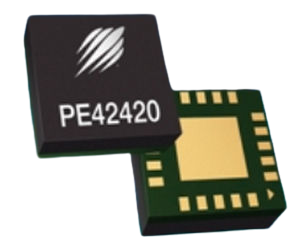

PE42420 High isolution SPDT RF switch

SPDT, High Iso, Absorptive, 50Ω RF Switch

    SG$ 2.56

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    SPDT, High Iso, Absorptive, 50Ω RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview


    LoRa tester AN-106 based on LoRa module. AN-106 LoRa tester is with LCD screen and connects with the gateway via OTAA network joining. It can test the UPLINK and DOWNLINK packet loss rate and meanwhile users can get RSSI and SNR of gateway transmission. Users can also turn on the GPS to display the latitude and longitude coordinates of the device and check the LoRoWAN CLASS type and the firmware version number of the LoRa tester.

    Features

        HaRP™ technology-enhanced
        High linearity
        High isolation
        Supports +1.8V control logic
        +105 °C operating temperature
        High ESD tolerance
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE42420 is a HaRP™ technology-enhanced absorptive SPDT RF switch designed for use in 3G/4G wireless infrastructure and other high-performance RF applications. It is ideal for transmit path switching, RF and IF signal routing, AGC loops, and filter bank switching applications.

    This general-purpose switch is comprised of two symmetric RF ports and has exceptional port-to-port isolation up to 6 GHz. An integrated CMOS decoder facilitates a two-pin low voltage CMOS control interface. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

    Key Features

        HaRP™ technology-enhanced
        High linearity
        High isolation
        Supports +1.8V control logic
        +105 °C operating temperature
        High ESD tolerance


    Specifications

    DescriptionSPDT (A)
    Min Freq.20 MHz
    Max Freq.6 GHz
    Max Typ. IL (dB)1.60
    Min Typ. IL (dB)0.95
    Max Typ. Iso (dB)69
    Min Typ. Iso (dB)50
    P1/0.1dB (dBm)33.0/-
    IIP3 (dBm)65
    Package20L LGA
    Package (mm)4x4
