PE42422 SPDT RF switch

SPDT, Low IL, Reflective, 50Ω RF Switch

    SG$ 1.75

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    SPDT, Low IL, Reflective, 50Ω RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

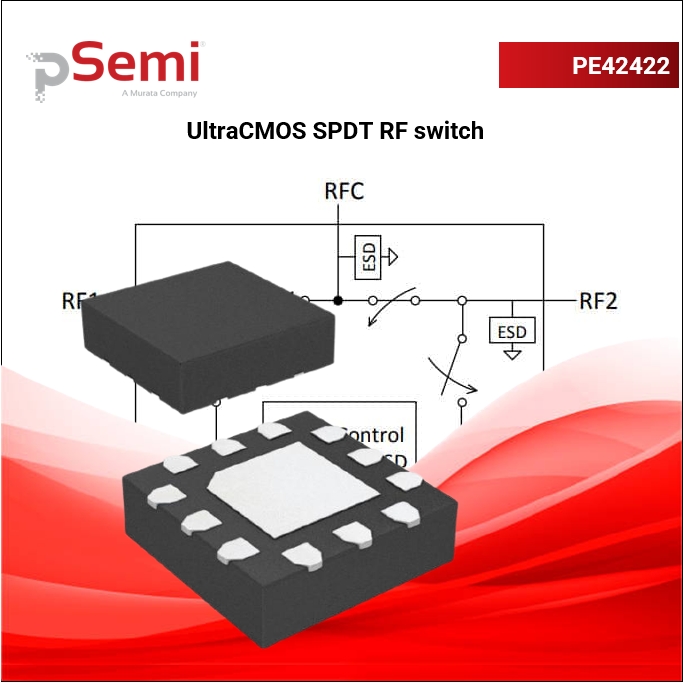

    The PE42422 is a HaRP™-enhanced SPDT RF switch designed to cover a broad range of applications from 5 MHz to 6 GHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and requires no external components.

    Features

        Symmetric SPDT reflective switch
        Low insertion loss
        Wide supply range of 2.3–5.5 V
        Excellent linearity
        High ESD tolerance
        Logic Select (LS) pin provides maximum flexibility of control logic
        Packaging: 12-lead 2 × 2 mm QFN
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE42422 is a HaRP™-enhanced SPDT RF switch designed to cover a broad range of applications from 5 MHz to 6 GHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and requires no external components.

    Key Features

        Symmetric SPDT reflective switch
        Low insertion loss
        Wide supply range of 2.3–5.5 V
        Excellent linearity
        High ESD tolerance
        Logic Select (LS) pin provides maximum flexibility of control logic
        Packaging: 12-lead 2 × 2 mm QFN

    Specifications

    DescriptionSPDT (R)
    Min Freq.5 MHz
    Max Freq.6 GHz
    Max Typ. IL (dB)0.90
    Min Typ. IL (dB)0.23
    Max Typ. Iso (dB)68
    Min Typ. Iso (dB)17
    P1/0.1dB (dBm)34.0/-
    IIP3 (dBm)81
    Package12L QFN
    Package (mm)2x2
